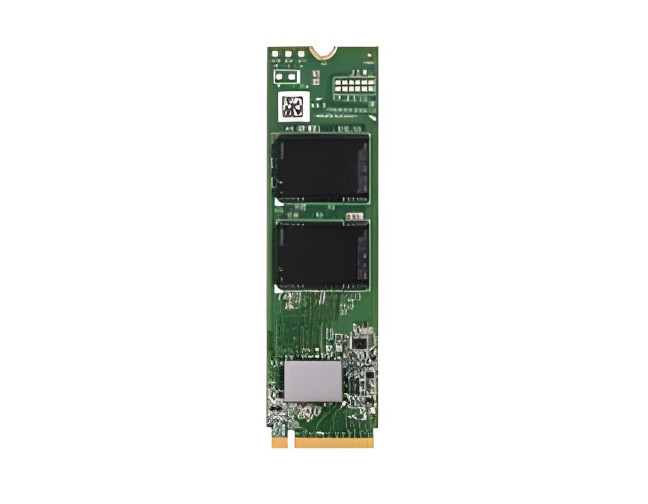

Innodisk DEM28-C12IB1KCAQF - is a NVM Express DRAM-less SSD designed with PCIe interface and industrial 3D TLC NAND Flash. M.2
by InnoDisk
|
|
|
|
DEM28-C12IB1KCAQF_SUMMARY.html
PCIe Gen. III x4, NVMe 1.3
DRAM-less Solution
Anti-Vibration mechanical design
Dynamic Thermal Management
iPower Guard Protection
|
|
|
DEM28-C12IB1KCAQF_DESCRIPTION.html
DEM28-C12IB1KCAQF is a NVM Express DRAM-less SSD designed with PCIe interface and industrial 3D TLC NAND Flash.
M.2 (P80) 3TE4 supports PCIe Gen III x 4 and it is compliant with NVM 1.3 providing excellent top and outstanding
sustained performance. With sophisticated error detection and correction (ECC) functions, the module can ensure full
End-to-End data path protection that secures the data transmission between host system and NAND Flash.
DEM28-C12IB1KCAQF.html
| Model Name |
M.2 (P80) 3TE4 |
| Interface |
PCIe Gen. 3 x4 |
| Flash Type |
3D TLC |
| Capacity |
128GB~1TB |
| Sequential R/W (MB/sec, max.) |
2,600/1,800 |
| Max. Power Consumption |
4W |
| Max. Channels |
4 |
| Thermal Sensor |
Y |
| External DRAM Buffer |
N |
| H/W Write Protect |
N |
| iCell |
N |
| Dimension (WxLxH/mm) |
22.0 x 80.0 x 1.35 |
| Vibration |
20G@7~2000Hz |
| Shock |
1500G@0.5ms |
| MTBF |
>3 million hours |
| Storage Temperature |
-40C ~ +85C |
| Operation Temperature |
Standard Grade: 0C ~ +70C;
Industrial Grade: -40C ~ +85C |
| Operation Temp. |
128GB |
256GB |
512GB |
1TB |
| Standard Grade (0C ~ +70C) |
DEM28- A28IB1KCADF |
DEM28-B56IB1KCAQF |
DEM28-C12IB1KCAQF |
DEM28-01TIB1KCAQF |
| Industrial Grade (-40C ~ +85C) |
DEM28- A28IB1KWADF |
DEM28-B56IB1KWAQF |
DEM28-C12IB1KWAQF |
DEM28-01TIB1KWAQF |
|
|
|
|
