Innodisk DEMSR-B56DK1KCAQL - is SATA III 6.0 Gb/s flash based disk, which adopts latest SATA III NAND controller
by InnoDisk

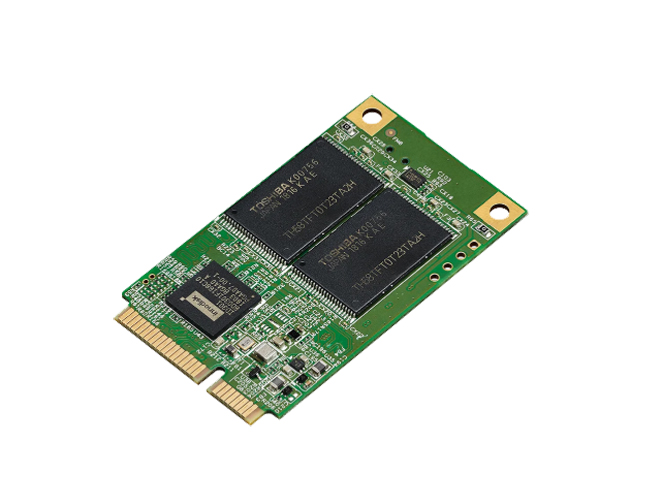

Innodisk DEMSR-B56DK1KCAQL

Innodisk mSATA 3TE7 is a SATA III 6.0 Gb/s Flash-based disk, which adopts the latest SATA III NAND controller with Innodisk’s exclusive L³ FW architecture. The upgraded L³ FW architecture, combining Innodisk signature 4K mapping algorithm L² FW architecture with powerful LDPC technology, makes the 3TE7 series have outstanding high IOPS, better data integrity, and extended lifespan through reducing the bad block number happening. Built-in thermal sensor and iData Guard ensure data integrity and reliability of mSATA 3TE7 for industrial applications.

Specifications

• Model Name: mSATA 3TE7
• Flash Type: 3D TLC
• Interface: SATA III 6.0 Gb/s
• Form Factor: MO-300
• Capacity: 32GB~2TB
• Sequential R/W (MB/sec, max.): 550/ 490
• P/E Cycle: 3000
• TBW (max.): 1200
• Storage Temperature: -40~85ºC
• Max. power consumption: 2.4W
• Max. Channels: 4
• External DRAM Buffer: N
• H/W Write Protect: Y (Optional)
• S.M.A.R.T.: Y
• AES: Y (Optional)
• TCG Opal: N
• Dimension (WxLxH/mm): 29.85 x 50.8 x 3.7
• Vibration: 20G @ [7~2000 Hz]
• Shock: 1500G @ 0.5ms
• MTBF: >3 million hours
