QNAP TS-1886XU-RP-D1622-8G-US - *Discontinued* - 12 (+6)-Bay TurboNAS, SATA 6G, Xeon D-1622 2.4GHz, 8GB ECC RAM, 4-LAN, built0in
by QNAP
|
|
|
|
12 (+6)-Bay TurboNAS, SATA 6G, Xeon D-1622 2.4GHz, 8GB ECC RAM, 4-LAN, built0in 2 10Gb SFP+, 40Gb network-ready, iSCSI, RAID 0,1, 5, 6, 10, 5+spare, 6+spare
| Mfg SKU # : | TS-1886XU-RP-D1622-8G-US |
|
|
|

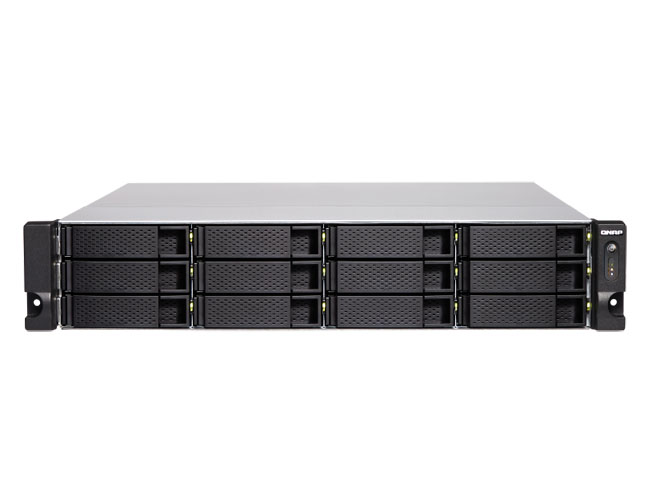

As a high-performance and cost-effective NAS solution designed for enterprises, the 2U rackmount TS-1886XU-RP-D1602-8G-US provides 12 3.5-inch drive-bays and 6 SSD dedicated slots. Additionally, powered by an Intel® Xeon® D processor with up to 128 GB DDR4 Error Correcting Code (ECC) memory, the TS-1886XU-RP delivers server-grade performance with dependable reliability. The pre-installed dual-port 10GbE SFP+ network card not only empowers bandwidth-demanding applications but also supports RDMA/RoCE to improve performance and lower CPU consumption. Moreover, the scalable TS-1886XU-RP satisfies growing data storage needs, along with advanced business-ready features for streamlined data and IT management, including SSD over-provisioning, comprehensive virtualization support, software-defined networking and virtual switch, QuDedup source-based data deduplication, elastic cloud storage gateway services, and more.
TS-1886XU-RP-D1622-8G-US
|
| CPU |
Intel® Xeon® D-1622 quad-core 2.60 GHz processor (burst up to 3.2 GHz) |
| CPU Architecture |
64-bit x86 |
| Floating Point Unit |
|
| Encryption Engine |
(AES-NI) |
| System Memory |
8 GB UDIMM DDR4 ECC (2 x 4GB) |
| Maximum Memory |
128 GB (4 x 32 GB) |
| Memory Slot |
4 x Long-DIMM DDR4 |
| Flash Memory |
5GB (Dual boot OS protection) |
| Drive Bay |
Front: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
Rear: 6 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility |
3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
2.5-inch bays:
2.5-inch SATA solid state drives |
| Hot-swappable |
|
| SSD Cache Acceleration Support |
|
| Gigabit Ethernet Port (RJ45) |
4 |
| 10 Gigabit Ethernet Port |
2 x 10GbE SFP+ SmartNIC port Pre-installed with a 10GbE PCIe adapter |
| PCIe Slot |
4
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x8 or x4
Slot 3: PCIe Gen 3 x4
Slot 4: PCIe Gen 3 x8 or x4 *Slot 4 is preinstalled with a 10GbE network adapter.
**Slot 2 provides the width of PCIe Gen 3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 1 is in use.
***Slot 4 provides the width of PCIe Gen 3 x8 when Slot 3 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 3 is in use. |
| USB 3.2 Gen 1 port |
2 |
| Form Factor |
Rackmount |
| LED Indicators |
HDD, SSD, Status, LAN, storage expansion port status |
| Buttons |
Power, Reset |
| Dimensions (HxWxD) |
88.3 × 482 × 549.7 mm |
| Weight (Net) |
12.73 kg |
| Weight (Gross) |
18.69 kg |
| Operating temperature |
0 - 40 °C (32°F - 104°F) |
| Relative Humidity |
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit |
550W(x2), 100-240V |
| Power Consumption: Operating Mode, Typical |
117.92 W Tested with drives fully populated. |
| Fan |
System fan: 3 x 60mm, 12VDC |
| Sound Level |
56.9 db(A) |
| System Warning |
Buzzer |
| Max. Number of Concurrent Connections (CIFS) |
1500 |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
|
|
|
|
