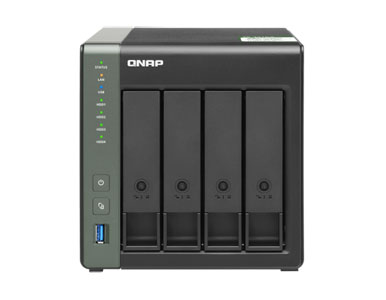

QNAP TS-431KX-2G-US - *Discontinued* - TS-431KX ARM-based NAS with Hardware Encryption, Quad Core 1.7GHz, 2GB RAM, 1 x 10GbE(SFP
by QNAP
|
|
|
|
- Single-port 10GbE connectivity enhances transfer speed for intensive data transmission and shortens backup time.
- HBS (Hybrid Backup Sync) can backup and sync your data to other NAS, servers, and cloud storage for comprehensive backup and disaster recovery.
- Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.
- Supports LXC and Docker® containers for rapidly deploying application services across platforms, including cloud, servers, and PCs.
- Hot-swapping design allows you to remove hard drives without powering off the NAS to ensure continuous operations.
- Supports VJBOD (Virtual JBOD) technology to expand the storage space of another QNAP NAS.
| Mfg SKU # : | TS-431KX-2G-US |
|
|
|
The quad-core TS-431KX-2G-US provides four drive bays for high-capacity storage and memory expansion up to 8GB RAM. With the built-in 10GbE SFP+ port, the TS-431KX delivers high bandwidth required for intensive data transmission. Coupled with the QNAP 10GbE switch, you can easily build a high-speed 10GbE network environment with an affordable budget. The TS-431KX provides comprehensive local, off-site and cloud backup and supports Snapshot technology to help you create a reliable backup and disaster recovery plan. In the event of a system crash or accidental deletion of files, you can quickly restore the system to its normal state. The TS-431KX comes with lockable drive trays, ensuring the drives will not be accidentally removed or fall out and cause data loss.

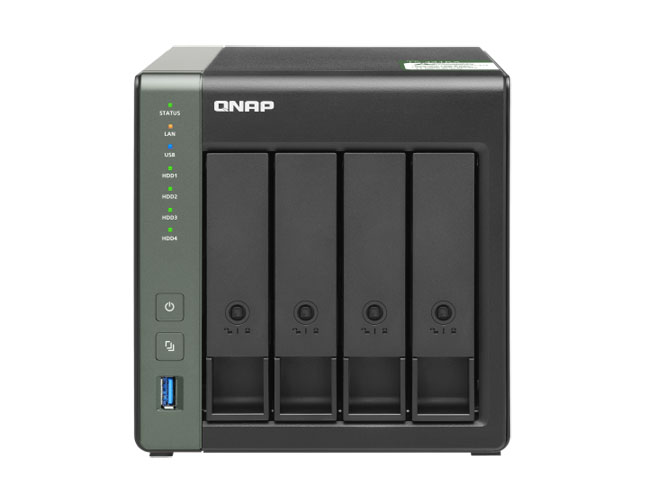

TS-431KX-2G-US
|
| CPU |
AnnapurnaLabs, an Amazon company Alpine AL214, 4-core, 1.7GHz |
| CPU Architecture |
32-bit ARM |
| Floating Point Unit |
|
| Encryption Engine |
|
| System Memory |
2 GB SODIMM DDR3 (1 x 2 GB) |
| Maximum Memory |
8 GB (1 x 8 GB) |
| Memory Slot |
1 x SO-DIMM DDR3 |
| Flash Memory |
512 MB (Dual boot OS protection) |
| Drive Bay |
4x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility |
3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives |
| Hot-swappable |
|
| SSD Cache Acceleration Support |
|
| Gigabit Ethernet Port (RJ45) |
2 |
| 10 Gigabit Ethernet Port |
1 x 10GbE SFP+ |
| Jumbo Frame |
|
| USB 3.2 Gen 1 port |
3 |
| Form Factor |
Tower |
| LED Indicators |
Power, Status, LAN, USB, HDD1-4 |
| Buttons |
Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) |
169 × 160 × 219 mm |
| Weight (Net) |
2.01 kg |
| Weight (Gross) |
3.47 kg |
| Operating temperature |
0 - 40 °C (32°F - 104°F) |
| Relative Humidity |
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit |
90W Adapter, 100-240V |
| Power Consumption: HDD Sleep Mode |
11.65 W |
| Power Consumption: Operating Mode, Typical |
26.7 W Tested with drives fully populated. |
| Fan |
1 x 120mm, 12VDC |
| Sound Level |
19.5 db(A) |
| System Warning |
Buzzer |
| Kensington Security Slot |
|
| Max. Number of Concurrent Connections (CIFS) |
400 |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
|
|
