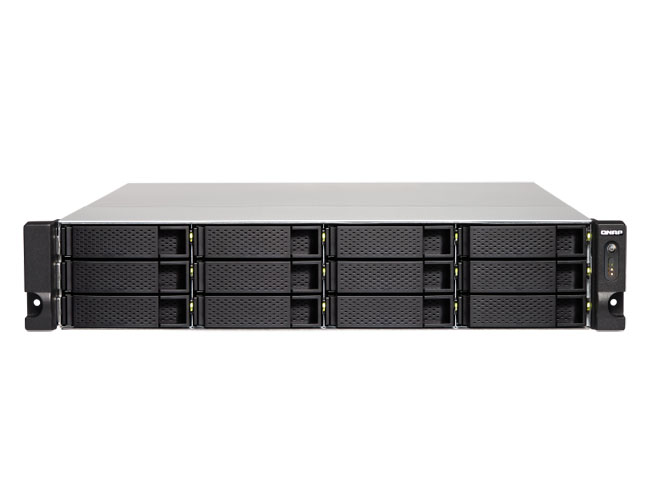

QNAP TS-1232XU-4G-US - *Discontinued* - 2U 12-Bay ARM-based 10G NAS, Quad Core 1.7GHz, 4GB DDR3 RAM, 2 x 10GbE SFP+, 2 x GbE, Si
by QNAP
|
|
|
|
2U 12-Bay ARM-based 10G NAS, Quad Core 1.7GHz, 4GB DDR3 RAM, 2 x 10GbE SFP+, 2 x GbE, Single Power Supply (not upgradeable)
| Mfg SKU # : | TS-1232XU-4G-US |
|
|
|
The TS-1232XU-4G-US is built to deliver high performance, flexible expansion capabilities and versatile applications at an affordable and cost-effective price for small/medium-sized businesses. Two 10GbE SFP+ ports are capable of high-speed transmission of time-critical business data and a PCI Express (PCIe) 2.0 ×2 slot (×4 length) provides flexibility for expanding connectivity and/or storage with M.2 SATA/PCIe NVMe SSDs, via QNAP's QM2 expansion cards. The TS-1232XU can be deployed to suit various needs for data storage, file backup, disaster recovery, containerized applications, surveillance, and more.
TS-1232XU-4G-US
|
| CPU |
AnnapurnaLabs Alpine AL324 ARM® Cortex-A57 quad-core 1.7GHz processor |
| CPU Architecture |
64-bit ARM |
| Floating Point Unit |
|
| Encryption Engine |
|
| System Memory |
4 GB UDIMM DDR4 (1 x 4 GB) |
| Maximum Memory |
16 GB (1 x 16 GB) |
| Memory Slot |
1 x Long-DIMM DDR4 |
| Flash Memory |
512 MB (Dual boot OS protection) |
| Drive Bay |
12 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility |
3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives |
| Hot-swappable |
|
| M.2 SSD Slot |
Optional via a PCIe adapter |
| SSD Cache Acceleration Support |
|
| Gigabit Ethernet Port (RJ45) |
2 |
| 10 Gigabit Ethernet Port |
2 x 10GbE SFP+ |
| Jumbo Frame |
|
| PCIe Slot |
1
Slot 1: PCIe Gen 2 x2 PCIe bandwidth limitations will restrict the NAS 10GbE performance. |
| USB 3.2 Gen 1 port |
4 |
| Form Factor |
2U Rackmount |
| LED Indicators |
HDD 1-12, Status, LAN, Storage expansion |
| Buttons |
Power, Reset |
| Dimensions (HxWxD) |
89 × 482 × 534 mm |
| Weight (Net) |
9.83 kg |
| Weight (Gross) |
15.57 kg |
| Operating temperature |
0 - 40 °C (32°F - 104°F) |
| Relative Humidity |
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit |
250W PSU, 100 - 240V |
| Power Consumption: HDD Sleep Mode |
30.63 W |
| Power Consumption: Operating Mode, Typical |
67.56 W Tested with drives fully populated. |
| Fan |
2 x 70mm, 12VDC |
| Sound Level |
24.5 db(A) |
| System Warning |
Buzzer |
| Max. Number of Concurrent Connections (CIFS) |
700 |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
|
|
|
|
