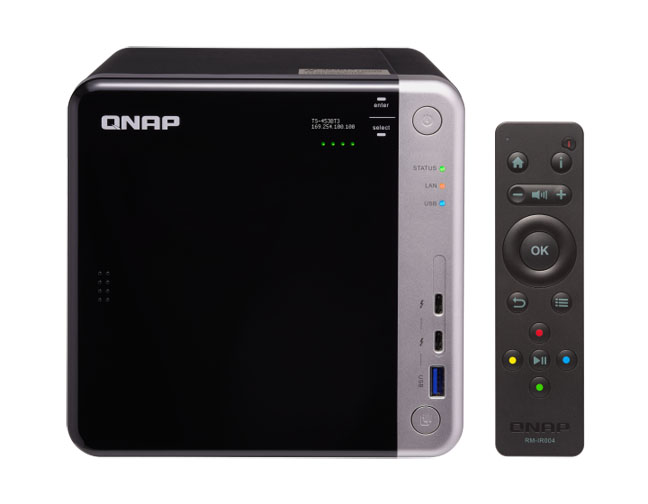

TS-453BT3-8G-US - TS-453BT3-8G-US - Your first Thunderbolt 3 + 10GbE NAS
by QNAP

Featuring dual Thunderbolt™ 3 ports, coupled with M.2 SATA SSD caching and 10GBASE-T connectivity, the TS-453BT3-8G-US provides an ideal environment for professional collaborative media editing and high-speed file sharing. The TS-453BT3 features a sleek new look with an OLED panel and two capacitive touch buttons. With powerful hardware capabilities and feature-rich productivity tools, the TS-453BT3 provides the best NAS solution for media studios or small creative workgroups looking to greatly simplify their workflows.

CPU	Intel® Celeron® J3455 quad-core 1.5 GHz processor (burst up to 2.3 GHz)
CPU Architecture	64-bit x86
Graphic Processors	Intel® HD Graphics 500
Floating Point Unit
Encryption Engine	(AES-NI)
Hardware-accelerated Transcoding
System Memory	8 GB SO-DIMM DDR3L (2 x 4 GB)
Maximum Memory	8 GB (2 x 4 GB)
Memory Slot	2 x SO-DIMM DDR3L For dual-DIMM configuration, you must use a pair of identical DDR3L modules.
Flash Memory	4GB (Dual boot OS protection)
Drive Bay	4 x 3.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without HDD. For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility	3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives
Hot-swappable	The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
M.2 SSD Slot	2 x M.2 2280 SATA 6Gb/s SSD slots (pre-installed QM2 PCIe card) The M.2 SSD is not included as standard.
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45)	2
10 Gigabit Ethernet Port	1 x 10GBASE-T (10G/5G/2.5G/1G/100M) Pre-installed QM2 PCIe card
Jumbo Frame
Thunderbolt Port	2 (Thunderbolt™ 3)
PCIe Slot	1 x PCIe Gen 2 (x2), pre-installed with a QM2 expansion card (QM2-2S10G1TB) that includes a 10GbE 10GBASE-T port and two M.2 SATA SSD slots. The M.2 SATA SSD slots on this QM2 card only support M.2 2280 SATA 6Gb/s SSD, please check the compatibilities before purchase. PCIe bandwidth limitations will restrict the NAS 10GbE performance.
USB 3.2 Gen 1 port	5
USB 3.2 Gen 2 (10Gbps) Port	Optional via a PCIe adapter (need to replace the pre-installed QM2 card)
IR Sensor	(RM-IR004, RM-IR002, & MCE)
HDMI Output	2, HDMI 1.4b (up to 3840 x 2160 @ 30Hz)
Audio Input	2 x 3.5mm dynamic microphone input jacks
Audio Output	1 x built-in speaker, 1 x 3.5mm line out jack (for amplifier or headphone amplifier) You cannot use the speakers and the line-out jack simultaneously.
Form Factor	Tower
LED Indicators	Power/Status, LAN, USB, HDD1-4
LCD Display/ Button	Monochrome OLED display with capacitive sensing Enter and Select buttons
Buttons	Power, USB copy, Reset, Capacitive touch buttons (select, enter)
Dimensions (HxWxD)	168 × 170 × 226 mm
Weight (Net)	2.51 kg
Weight (Gross)	4.05 kg
Operating temperature	0 ~ 40˚C (32˚F ~ 104˚F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	120W adapter, 100-240V
Power Consumption: Operating Mode, Typical	38.101 W
Fan	System: 1 x 120mm
Sound Level	16.1 db(A)
System Warning	Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS)	800

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
