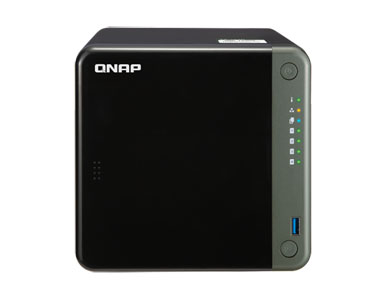

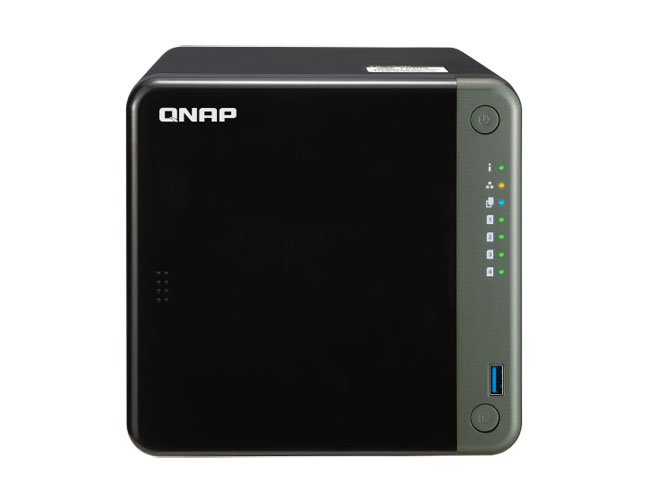

QNAP TS-453D-8G-US - *Discontinued* - TS-453D (8GB RAM version) 4-Bay Desktop NAS. Intel Celeron Gemini Lake J4125 quad-core 2.0
by QNAP
|
|
|
|
- Dual 2.5GbE ports accelerates file sharing across teams and devices or gaming storage applications.
- PCIe expansion allows for a Multi-Gig 10GbE or 5GbE network card, or a QM2 card to add M.2 NVMe or SATA SSDs for caching.
- 4K media playback and real-time transcoding; directly watch videos on an HDTV via HDMI 2.0 (4K @60Hz) output.
- HBS provides comprehensive backup and data recovery; QuDedup deduplicates the data at the source to reduce storage space usage, bandwidth usage, and backup time.
- Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
- Hosts multiple virtual machines and containers to execute different applications in one NAS device.
| Mfg SKU # : | TS-453D-8G-US |
|
|
|
The new-gen Wi-Fi 6 (802.11ax) trend has driven higher bandwidth demands for wired and wireless network connections. By integrating Intel® Celeron® J4125 quad-core 2.0 GHz processor and 2.5GbE connectivity, the TS-453D-8G-US not only provides modern businesses an excellent NAS solution to upgrade to 2.5GbE environments for productive daily backup/restore tasks, but also provides gamers with ample storage for their vast game collections. Up to 5 Gbps transfer speeds can be made by setting port trunking with the two built-in 2.5GbE ports. The TS-453D also supports PCIe expansion, multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.
|
| CPU |
Intel® Celeron® J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz) |
| CPU Architecture |
64-bit x86 |
| Graphic Processors |
Intel® HD Graphics 600 |
| Floating Point Unit |
|
| Encryption Engine |
(AES-NI) |
| Hardware-accelerated Transcoding |
|
| System Memory |
8 GB SO-DIMM DDR4 (2 x 4 GB) |
| Maximum Memory |
8 GB (2 x 4 GB) |
| Memory Slot |
2 x SO-DIMM DDR4 For dual-DIMM configuration, you must use a pair of identical DDR4 modules. |
| Flash Memory |
4GB (Dual boot OS protection) |
| Drive Bay |
4 x 3.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility |
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives |
| Hot-swappable |
|
| M.2 SSD Slot |
Optional via a PCIe adapter |
| SSD Cache Acceleration Support |
|
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) |
2 |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) |
Optional via PCIe expansion card |
| 10 Gigabit Ethernet Port |
Optional via PCIe expansion card Optional via PCIe expansion card |
| Jumbo Frame |
|
| PCIe Slot |
1
Slot 1: PCIe Gen 2 x2 PCIe bandwidth limitations will restrict the NAS 10GbE performance. |
| USB 2.0 port |
3 |
| USB 3.2 Gen 1 port |
2 |
| USB 3.2 Gen 2 (10Gbps) Port |
Optional via a PCIe adapter |
| IR Sensor |
(Optional QNAP RM-IR004 remote control) |
| HDMI Output |
1, HDMI 2.0 (up to 4096 x 2160 @ 60Hz) |
| Form Factor |
Tower |
| LED Indicators |
Power/Status, LAN, USB, HDD1-4 |
| Buttons |
Power, USB copy, Reset |
| Dimensions (HxWxD) |
168 × 170 × 226 mm |
| Weight (Net) |
2.26 kg |
| Weight (Gross) |
3.6 kg |
| Operating temperature |
0 - 40 °C (32°F - 104°F) |
| Relative Humidity |
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit |
90W adapter, 100-240V |
| Power Consumption: HDD Sleep Mode |
11.3 W |
| Power Consumption: Operating Mode, Typical |
25.98 W Tested with drives fully populated. |
| Fan |
1 x 120mm, 12VDC |
| Sound Level |
21.1 db(A) |
| System Warning |
Buzzer |
| Kensington Security Slot |
|
| Max. Number of Concurrent Connections (CIFS) |
800 |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
|
|
|
|
