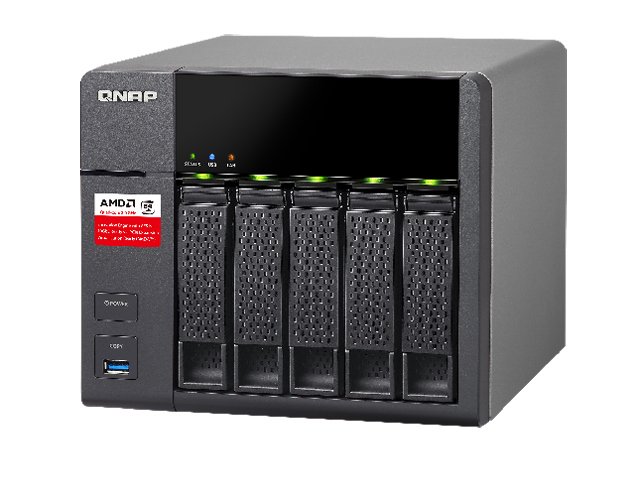

TS-563-8G-US - 5-Bay AMD 64bit x86-based NAS, Quad Core 2.0GHz, 8GB RAM, 2 x 1GbE, 10G-ready
by QNAP
|
|
|
|
- 10GbE-ready, highly-efficient storage solution for HD video editing and sharing
- Hardware-accelerated encryption engine for efficient cryptographic performance exceeding 400 MB/s
- Run multiple Windows/Linux/UNIX/Android-based virtual machines with the Virtualization Station
- Manage, share, and back up business data with Real-time Remote Replication (RTRR)
- NAS and iSCSI-SAN unified storage solution for server virtualization
- Supports VMware®, Citrix®, and Microsoft® Hyper-V and advanced virtualization features
- Scale up to 21 drives with QNAP UX-800P expansion enclosures
|
|
|
The TS-563 is a powerful network storage system powered by a high-performance AMD® quad-core processor. It uniquely provides the potential for 10GbE expandability at a budget price to maximize ROI, and doubles the encrypted file transfer performance with the AES-NI hardware-accelerated encryption engine to over 400 MB/s. Powered by the QTS operating system, the TS-563 provides versatile all-in-one server functionalities as well as unique features including Virtualization Station, which allows users to run VMs on the same device. The TS-563 is designed for small and medium-sized businesses looking for backup, restoration, private cloud, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks.
| Operating System |
| QTS 4.1 (embedded Linux) |
|
| Power Management |
- Wake on LAN
- Internal hard drive standby mode
- Scheduled power on/off
- Automatic power on after power recovery
- USB and network UPS support with SNMP management
- System sleep mode (S3)
|
|
| Supported Client OS |
- Windows XP, Vista, Windows 7 (32/64-bit), Windows 8 (32/64-bit), Windows Server 2003/2008 R2/2012/2012R2
- Apple Mac OS X
- Linux & UNIX
|
|
| Access Right Management |
- Batch users creation
- Import/Export users
- User quota management
- Local user access control for CIFS, AFP, FTP, and WebDAV
- Application access control for Photo Station, Music Station, Video Station, and File Station
- Subfolder permissions support for CIFS/SMB, AFP, FTP, and File Station
|
|
| Supported Browsers |
- Microsoft Internet Explorer 10+
- Mozilla Firefox 8+
- Apple Safari 4+
- Google Chrome
|
|
| Transcoding Management |
- Background video transcoding to 240p, 360p, 480p, 720p and 1080p resolutions
- Automatic offline video transcoding for a preset shared folders
- Embed subtitles to videos in background transcoding
|
|
| Multilingual Support |
| Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
|
| Domain Authentication Integration |
- Microsoft Active Directory (AD) & Domain Controller support
- LDAP server, LDAP client
- Domain users login via CIFS/SMB, AFP, FTP, and File Station
|
|
| File System |
- Internal Hard Drive: EXT4
- External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+
|
|
| myQNAPcloud Service |
- Private cloud storage and sharing
- Free host name registration (DDNS)
- Auto router configuration (via UPnP)
- Web-based file manager with HTTPS 2048-bit encryption
- CloudLink for remote access without complicated router setup
- myQNAPcloud connect for easy VPN connection (Windows VPN utility)
|
|
| Networking |
- TCP/IP (IPv4 & IPv6*: Dual Stack)
- Dual Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)
- Service binding based on network interfaces
- Proxy server (Squid available in App Center)
- Proxy client
- DHCP client, DHCP server
- Protocols: CIFS/SMB, AFP, NFS, FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
- UPnP & Bonjour discovery
- USB Wi-Fi 802.11ac adapter support
* Not all services support IPv6. |
|
| Qsync |
- Syncs files among multiple devices with SSL support
- Selective synchronization for syncing specific folders only
- Use team folders as a file center for greater team collaboration (maximum sync tasks: 32)
- Shares files by links via email
- Policy settings for conflicted files and file type filter support
- Version control: up to 64 versions.
- Incremental synchronization for HDD space saving
- Supports Windows & Mac OS
|
|
| Security |
- Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
- CIFS host access control for shared folders
- FIPS 140-2 validated AES 256-bit volume-based data encryption*
- AES 256-bit external drive encryption*
- Importable SSL certificates
- Instant alert via email, SMS, and beep
* Somedata encryption functions may not available in accordance with the legislative restrictions of some countries. |
|
| Web Administration |
- Smart fan Control
- Dynamic DNS (DDNS)
- SNMP (v2 & v3)
- Resource monitor
- Network recycle bin for file deletion via CIFS/SMB, AFP, and File Station
- Automatic Cleanup
- File Type Filter
- Comprehensive logs (events & connection)
- Syslog client/server
- System settings backup and restore
- Restore to factory default
- Mobile app: Qmanager for remote system monitoring & management
|
|
| Storage Management |
- QNAP flexible Volume/LUN with thin provisioning and space reclaim
- RAID 0,1, 5, 6, 10, + hot spare
- Supports storage pool
- Online volume expansion
- Online storage pool expansion
- Online RAID capacity expansion and online RAID level migration
- SMART data migration
- Storage expansion via QNAP UX-500P/UX-800P expansion unit (max 2)
- Bad block scan and hard drive S.M.A.R.T.
- Bad block recovery
- RAID recovery
- Bitmap support
|
|
|
| Powerful All-in-one server |
| File Server |
- File sharing across Windows, Mac, and Linux/UNIX
- Windows ACL
- Advanced folder permission for CIFS/SMB, AFP, FTP
- Shared folder aggregation (CIFS/SMB)
|
|
| Storage Plug & Connect |
- Creating and mapping shared folders using QNAP Windows Qfinder Pro
- Creation of and connection to iSCSI targets/LUN
|
|
| FTP Server |
- FTP over SSL/TLS (Explicit)
- FXP support
- Passive ftp port range control
|
|
| iSCSI (IP SAN) |
- iSCSI target with multi-LUNs per target (Up to 256 targets/LUNs combined)
- Support for LUN mapping & masking
- Online LUN capacity expansion
- Support for SPC-3 persistent reservation
- Support for MPIO & MC/S
- iSCSI LUN backup, one-time snapshot, and restoration
- iSCSI connection and management by QNAP Windows Qfinder Pro
- Virtual disk drive (via iSCSI initiator)
- Stack chaining master
- Max No. of virtual disk drives: 8
|
|
| File Station |
- Supports ISO Mounting (Up to 256 ISO Files)
- Supports thumbnail display of multimedia files
- Supports sharing download links and upload links
- Drag-n-drop Files via Google Chrome and Mozilla Firefox
- File Compression (ZIP or 7z)
- Creation of and sending download links for sharing public files with expiration time and password protection
- Support for displaying subtitles (*.SRT, UTF-8 format)
- Support slideshow playback in media viewer
- Mobile App: Qfile for file browsing and management
|
|
| Surveillance Station |
- Supports over 3,000 IP cameras
- Includes 4 free camera licenses, up to 40 camera channels via additional license purchase
- Instant playback to check recent events
- Online editing to change cameras when in live view
- Visual aid by using e-maps
- Playback and speed control by shuttle bar
- Video preview using playback timeline
- Intelligent Video Analytics (IVA) for advanced video search
- Surveillance client for Mac
- Mobile surveillance app: Vmobile (iOS and Android)
- Mobile recording app: Vcam (iOS and Android)
|
|
| Backup Station |
- Remote replication server (over rsync)
- Real-time remote replication (RTRR) to another QNAP NAS or FTP server
- Works as both RTRR server & client with bandwidth control
- Real-time & scheduled backup
- Encryption, compression, file filters, and transfer rate limitations
- Encrypted replication between QNAP NAS servers
- Desktop backup with QNAP NetBak Replicator for Windows
- Apple Time Machine backup support
- Data backup to multiple external storage devices
- Synchronizes with cloud storage: Amazon S3, ElephantDrive, Dropbox
- Third party backup software support: Veeam backup & replication, Acronis True Image, Arcserve backup, emc retrospect, Symantec Backup Exec, etc.
|
|
| VPN Server |
- Secure remote access: PPTP & OpenVPN VPN services
- Max number of clients: 30
|
|
| Print Server |
- Max. number of printers: 3
- Support for Internet Printing Protocol
- Print job display and management
- IP-based and domain name-based privilege control
|
|
| VPN Client |
- Supported VPN protocols: PPTP & OpenVPN services
- PPTP Authentication: PAP, CHAP, MS-CHAP, MS-CHAPv2
- PPTP Encryption: None, AES 40/128 bit, AES 256 bit
- OpenVPN Encryption: None, AES 40/128 bit, AES 256 bit
- Transmission package monitor
- OpenVPN port control
- OpenVPN link compression
|
|
| Cloud Backup Station |
- Amazon S3
- Amazon Glacier
- Webdev-based cloud storage
- Microsoft Azure
- Open Stack
|
|
| App Center |
| Over 100 official and community software add-ons such as Photo Station, Music Station, Video Station, DLNA server, Notes Station, Signage Station, Airplay/Chromecast, and more. |
|
| Virtualization Station |
- Supports creating one Virtual Machine (VM) to run an operating system such as Windows, Linux, Unix
- VM import from Virtual Appliances
- VM export into a virtual appliance in OVF / QVM format
- VM clone&snapshot
- HTML5-based shared remote console
|
|
|
Designs and specifications are subject to change without notice. |
| CPU |
AMD® x86 G-Series Quad-core 2.0 GHz processor |
| Floating Point Unit |
Yes |
| Hardware Encryption Engine |
Yes (AES-NI) |
| DRAM |
System memory:
TS-563-8G: 8GB DDR3L RAM (8GB x1)
Total memory slots: 2 SODIMM
Memory expandable up to: 16 GB (8GB x 2)
NOTE: For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide |
| Flash Memory |
512MB |
| Hard Disk Drive |
5 x 3.5"or 2.5"SATA 6Gb/s, SATA 3Gb/s hard drive or SSD
NOTE:
1. The system is shipped without HDD.
2. For the HDD compatibility list, please visit https://www.qnap.com/compatibility |
| Hard Disk Tray |
5 x Hot-swappable tray |
| LAN Port |
2 x Gigabit RJ-45 Ethernet port (Expandable up to 4 x GbE or 2 x 10GbE + 2 x GbE via PCIe NIC) |
| Network Expansion Slot |
1 (PCIe Gen2 x 4) |
| LED Indicators |
Status, USB, HDD 1-5 |
| USB |
5 x USB 3.0 port (Front: 1, Rear: 4)
Support USB printer, pen drive, and USB UPS etc. |
| Buttons |
Power/Status, USB One-Touch-Backup, reset |
| Alarm Buzzer |
System warning |
| Form Factor |
Tower |
| Dimensions |
185(H) x 210.6(W) x 235.4(D) mm
7.28(H) x 8.29(W) x 9.27(D) inch |
| Weight |
Net: 4.4 kg (9.7 lbs)
Gross: 5.8 kg (12.79 lbs) |
| Power Consumption (W) |
S3 sleep: 2.26W
HDD standby: 30.17W
In operation: 47.68W
(with 5 x 2TB HDDs installed) |
| Sound Level* |
Sound pressure (LpAm) :20.1 dB(A) |
| Temperature |
0-40˚C |
| Humidity |
5~95% RH non-condensing, wet bulb: 27˚C |
| Power Supply |
ATX 250W, 110-240V AC, 50-60Hz, 5A |
| Secure Design |
Kensington security slot for theft prevention |
| Fan |
1 x quiet cooling fan (12cm, 12V DC) |
| 1. |
LED Indicators:
Status, USB, LAN |
6. |
Power Connector |
| 2. |
Hard Drive LEDs |
7. |
PCIe Expansion Slot |
| 3. |
Power Button |
8. |
USB 3.0 Port x 4 |
| 4. |
One Touch Copy Button |
9. |
Gigabit LAN Port x 2 |
| 5. |
USB 3.0 Port x 1 |
10. |
Kensington Security Slot |
* Testing Environment:
Refer to ISO 7779, ISO 3744 ,Telcordia GR 63 CORE and ETSI EN 300 753 ; Maximum HDD loaded ; 40HL ½ " High Sensitivity
Microphone at the by stander position. ; Background noise is 6.5 ~ 7.0dB(A) ; Ambient temperature is 21 ± 2℃ ; Relative humidity is 63% ± 5%
|
|
