Tycon Systems TP-ESP-GPOE-OD - Outdoor Weatherproof Pole Mount Gigabit Ethernet PoE Lightning/Surge Supressor Protector, 77V Cla
by TYCON SYSTEMS
|
|
|
|
- 10/100/1000Mb Data Rate
- CAT5e/6/6a Compatible. All 8 pins protected.
- Shielded RJ45 jacks and split gasket cable glands
- Complies with IEC 61643-21 Standard
- IP66 Waterproof and UV protected for Outdoor Applications
|
|
|

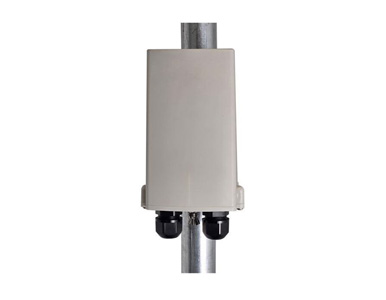

Tycon TP-ESP-GPOE-OD
The TP-ESP-GPOE-OD are a low cost Outdoor Ethernet Surge Protector to help protect sensitive equipment from surges caused by lightning and grid power fluctuations. The surge protector is compatible with 10/100/1000M PoE systems up to 56V. Protection is provided on all 8 CAT5e/6/6a wires. There is a ground wire connection on the bottom of the housing which can be connected to the metal pole or to a separate ground wire, connected to earth ground. It protects equipment by clamping excess voltage and diverting surge currents, ensuring reliable operation in 56V DC environments. Note: For best results, mount the surge protector as close as possible to equipment that needs protection. There is no polarity so connections can be made to either port.
|
|
|
|
