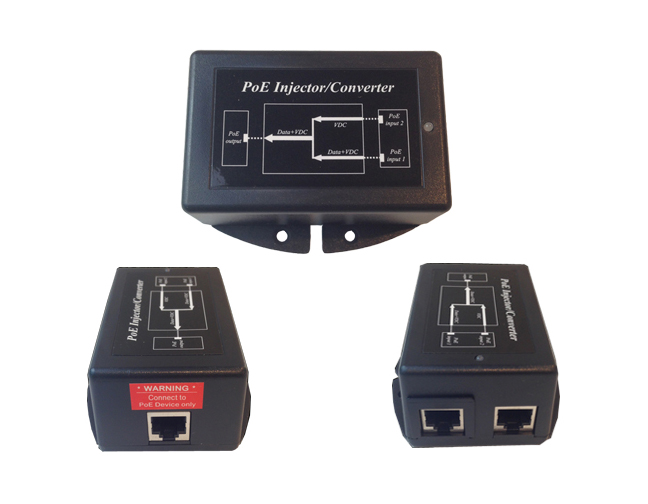

POE-CONV-2AT-60 - Gigabit PoE Converter. Two 802.3at PoE+ input, One 4 Pair 60W Output. Compatible with Ubiquiti airFiber by Tycon Systems

POE-CONV-2AT-60 - Gigabit PoE Converter. Two 802.3at PoE+ input, One 4 Pair 60W Output. Compatible with Ubiquiti airFiber
by Tycon Systems

Write a review Write a review
  • Very Compact Size
  • Convert two 802.3at 35W ports to one 4 Pair PoE 60W port
  • Allows use of standard PoE switches to power higher power devices



Mfg SKU # : POE-CONV-2AT-60
Our Price : $89.95
Stock :68
Quantity :

The POE-CONV-2AT-60 provide Gigabit PoE conversion, accepting two 802.3at inputs and providing a single 4 Pair 60W Passive PoE output which is compatible with High PoE devices like Ubiquiti airFiber™

There are two RJ45 socket for input and one RJ45 socket for the output. One input accepts Data and Power, the second input accepts only Power. The design is isolated so input and output are isolated. The devices include protections for short circuit and overload.

Note: If the inputs come from the same PoE switch then the output power is full power. If the inputs come from different PoE sources, then the output power may be ½.



POE-CONV-2AT-60

Input

Qty 2 802.3af Mode A or 48V Passive PoE

Output

802.3at Mode A 48V 30W, 2 Pair PoE

Input Connector

Shielded RJ45 Socket x 2

Output Connector

Shielded RJ45 Socket

Load Regulation

5%

Line Reg, Ripple, Noise

1%

Ethernet Speed

10/100/1000MB, GigE, Gigabit

LED

Blinking Red: Only 1 input powering; Solid Red: Two Inputs Powering Solid Green: Output is active with device plugged in

Efficiency

90% Min

EMC Standards

FCC Class B NE55022 Class B

Isolation Voltage

1500VDC

Isolation Resistance

100M Ohms Minimum

Operating Temperature

-30 to +60°C (-22 to +140°F)

Operating Humidity

5% - 90% non-condensing

Storage Temperature

-40 to +85°C (-40 to +176°F)

Dimensions (LxWxH)

65 x 45 x 26mm (2.6 x 1.8 x 1”)

Weight

62g (2.2oz)

Warranty

1 Year
