Advantech ICR-3231 - EMEA cat4,2xETH,1xRS232,1xRS485,NOACC
by Advantech
|
|
|
|
ICR-3200, EMEA, 2× Ethernet, 1× RS232, 1× RS485, Metal, Without Accessories
- LTE cat.4, 3G/HSPA+, GPRS/EDGE, EMEA, 2× SIM
- LTE B1, B3, B7, B8, B20, B28, B38, B40, B41
- Powerful CPU and Memory, Hosting of SW IoT applications
- VPN router, Open Linux OS
- DIN rail & Wall mounting
- 2× ETH
- 1× RS232, 1× RS485
- I/O 1× DI + 1× DO
- Operating temp. –40 °C to +75 °C, Power supply 9 to 36 V DC
- Certifications: CE, E8
- Advanced networking, Diagnostics, VPN support, Firewall
|
|
|

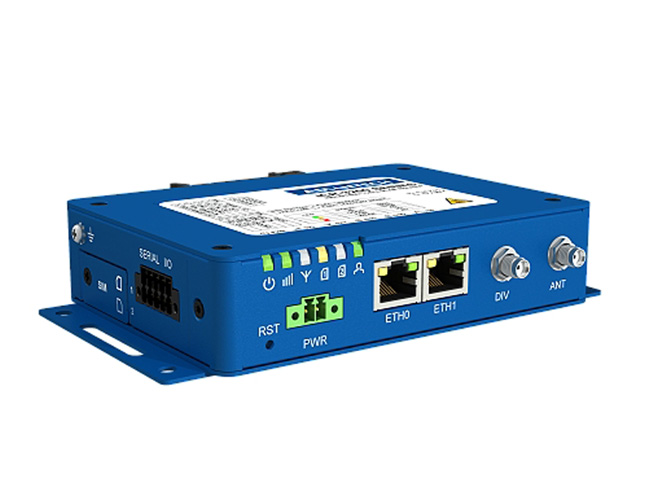

Advantech ICR-3231
The ICR-3200 4G LTE gateway is the perfect way to connect IP or serial devices via a cellular network. Industrial M2M and IoT applications include SCADA, industrial PCs, HMIs, traffic controllers, CCTV, meters, kiosks, UPS systems, and much more. With LTE Cat. 4 upload speeds of up to 50 Mbps and download speeds of up to 150 Mbps, the router provides ample bandwidth for high data-demand applications. The device has two SIM card readers for carrier failover redundancy. As an addition the router can be customized for using an embedded SIM. In addition to its two independent Ethernet ports, serial ports RS232 and RS485, ICR-3200 has built-in digital I/O connectivity, a backup real-time clock, and sleep mode support. An optional built-in Wi-Fi module is available, supporting 802.11a/b/g/n/ac modes and MIMO, and Bluetooth v5.1. An optional built-in GNSS chipset provides accurate positioning information for the router. The ICR-3200 places intelligence at the network edge with a powerful Cortex A8 CPU at 1GHz, 512 MB RAM, and 4 GB EMMC FLASH memory in pSLC mode for a long lifetime and critical industrial applications. 1.3 GB of memory space is allocated for customer SW applications and data.
|
|
