28015938 DT-TELE-SHDSL - Surge Protector, surge protection device  for two SHDSL telecommunications interfaces (ports). Connecti by PERLE

28015938 DT-TELE-SHDSL - Surge Protector, surge protection device for two SHDSL telecommunications interfaces (ports). Connecti
by PERLE

Write a review Write a review
  • Protection for SHDSL telecommunication interfaces
  • Protective adapter for two signal pairs via RJ45 (RJ12) connector or screwed connector
  • Sturdy metal housing
  • Two SHDSL ports



Mfg SKU # : 28015938
List Price : $183.00
Our Price : $165.00
Stock :Call for Availability
Quantity :

The DT-TELE-SHDSL Surge Protector was designed to meet the special requirements of SHDSL data transmission. It is specifically designed to provide Lightning, RFI, ESD and transient surge protection for maximum data security with minimum signal attenuation.

Surge protection for SHDSL systems

Reliable telecommunications are indispensable in today's industry. The sensitive systems used in these cases work with high frequencies at low signal levels and are networked over a wide area. Surge voltages here quickly lead to largescale failures and, in the worst-case scenario, data loss. The SHDSL Surge Protector takes the form of an adapter that can be easily installed between incoming telecommunications cables and a modem. The pluggable connection ensures fast and flexible installation and only needs to be grounded by way of the black cable or DIN rail base.

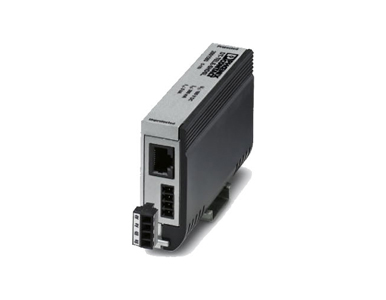

Attachment plug with surge protection for two SHDSL telecommunications interfaces (ports). Connection: RJ45 (RJ12/RJ11) and plug-in screw terminal block (COMBICON). Alternatively, can be snapped onto a DIN rail.

Ambient Conditions
Ambient temperature (operation) -40 °C ... 85 °C
Ambient temperature (storage/transport) -40 °C ... 85 °C
Degree of protection IP20
Protective circuit
IEC test classification B2
C1
C2
C3
D1
Maximum continuous voltage UC 185 V DC
Rated current ≤ 380 mA (25 °C)
Operating effective current IC at UC ≤ 6 µA
Residual current IPE ≤ 4 µA
Nominal discharge current In (8/20) µs (Core-Core) ≤ 5 kA
Nominal discharge current In (8/20) µs (core-earth) ≤ 5 kA
Total discharge current Itotal (8/20) µs 10 kA
Nominal pulse current Ian (10/700) µs (Core-Core) 150 A
Nominal pulse current Ian (10/700) µs (Core-Earth) 150 A
Voltage protection level Up (core-core) 250 V (B2 - 100 A)
≤ 250 V (C1 - 500 A)
≤ 410 V (C2 - 5 kA)
Voltage protection level Up (core-ground) ≤ 580 V (B2 - 100 A)
≤ 580 V (C1 - 500 A)
Response time tA (core-core) ≤ 100 ns
Response time tA (core-earth) ≤ 100 ns
Input attenuation aE, sym. typ. 0.3 dB (≤ 2,8 MHz / 100 Ω)
typ. 3 dB (≤ 25 MHz / 100 Ω)
Cut-off frequency fg (3 dB), sym. in 100 Ohm system 25 MHz
Capacity (core-core) 55 pF
Capacity (core-earth) 7 pF
Surge protection fault message None
Impulse durability (conductor-conductor) C1 - 1 kV/500 A
Impulse durability (conductor-ground) B2 - 4 kV/100 A
C1 - 1 kV/500 A
C2 - 10 kV/5 kA
VDE requirement class B2
C1
C2
C3
D1
Maximum continuous voltage UC 130 V AC
Pulse discharge current Iimp (10/350) µs 2.5 kA (Number of pulses category D1)
Nominal pulse current Ian (10/1000) µs (Core-Core) 100 A
Nominal pulse current Ian (10/1000) µs (Core-Earth) 100 A
Voltage protection level Up (core-core) ≤ 250 V (C3 - 100 A)
Voltage protection level Up (core-ground) ≤ 790 V (C2 - 5 kA)
≤ 300 V (C3 - 100 A)
Resistance in series 3.3 Ω 20 %
Impulse durability (conductor-conductor) C2 - 10 kV/5 kA
B2 - 4 kV/100 A
Impulse durability (conductor-ground) D1 - 1 kA
Standards and Regulations
Standards/specifications IEC 61643-21 2002
IEC 61643-21
General
Housing material Zinc die-cast
Color silver/black
Mounting type Connection-specific attachment plug and DIN rail, 35 mm
Design Attachment plug for DIN rail mounting
Number of positions 4
Direction of action Line-Line & Line-Ground/Shield
Standards for cearances and creepage distances IEC 60664-1
VDE 0110-1
Connection, equipotential bonding
Connection method Cable connection/DIN rail
Connection data
Connection method RJ45/COMBICON
Connection method IN RJ45 socket
Connection method OUT RJ45 socket
Connection method IN MC 1,5/4
Connection method OUT MC 1,5/4
Connection technology Screw connection
Screw thread M2
Tightening torque 0.22 Nm
Stripping length 7 mm
Conductor cross section flexible 0.14 mm² ... 1.5 mm²
Conductor cross section solid 0.14 mm² ... 1.5 mm²
Conductor cross section AWG 28 ... 16
Dimensions
Height 103 mm
Width 25 mm
Depth 63 mm
SURGE PROTECTOR
Environmental Product Compliance
Reach and RoHS Compliant Reach and RoHS Compliant
Approvals
UL Listed
EAC
Commercial data
Packing unit 1
Weight per piece 320.0 g
Country of origin Germany
