DINSpace BRKT-GX-Rear - GX400 Rear Mount Bracket
by DINSPACE

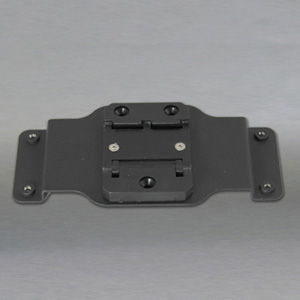

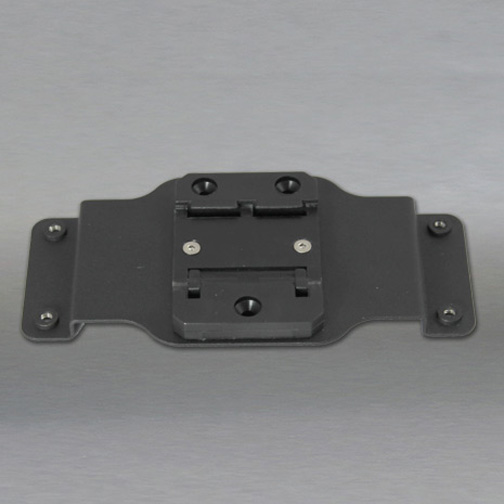

BRKT-GX-Rear, DINSpace BRKT GX Series Rear-Mount DIN-Rail Mounting Bracket For Sierra Wireless GX400/440/450 Cellular Gateways.

BRKT GX series brackets easily and securely mount Sierra Wireless GX400 & GX440 industrial cellular gateways onto DIN-rail. The BRKT-GX-SIDE allows the gateway to be mounted with a side-facing profile, while the BRKT-GX-REAR mounts the device with a forward-facing profile

Scope of Delivery

• DIN-rail bracket, mounting hardware

Materials of Construction

• Mounting Hardware: 18-gauage powder-coat painted steel
• Mounting Screws: Stainless steel
• DIN-Rail Clip: Fiberglass reinforced Nylon 66

Specifications

• Ambient Condition
  • Storage/Operating Temperature: -40ºC to 80ºC
• Dimensions
  • BRKT-GX-REAR: (H x D x W) 3.0" x 0.78" x 5.85"
• Mounting Options:
  • BRKT-GX-REAR: Rear DIN-Rail
• Weight
  • BRKT-GX-REAR: 5 oz
