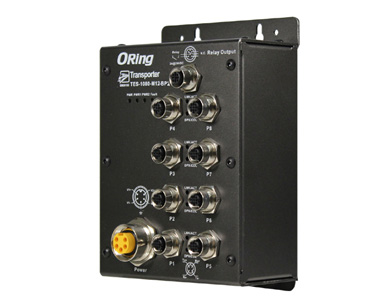

ORing TES-1080-M12-BP2 - EN50155 IP40 8x 10/100TX with M12 connector unmanaged switch with Bypass Feature
by ORing Industrial Networking

ORing’s TransporterTM series Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway.  The TES-1080-M12-BP2, which is compliant with the EN50155 standard, is an unmanaged Ethernet switch with 8x10/100Base-T(X) ports (4 of these ports also double as 2 sets of bypass ports). TES-1080-M12-BP2 is constructed of a rugged aluminum case and designed with Ethernet ports (M12 type connector), which provide a dust-tight connection.  TES-1080-M12-BP2 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. TES-1080-M12-BP2 includes 2 sets of bypass ports that protect the network from failures and Network maintenance by ensuring network integrity during power loss.  Eachset of these bypass ports includes Network ports and Monitor ports.  The Network ports are used for connection to main-network connections and provide protection mechanism, and the Monitor ports are used for down-linking local networking device.  When the power is on, the operating mode of the Bypass ports is set to Normal, and the local networking device is connected with main-network.  When power failure occurs, the Bypass ports are swiftly set to bypass mode to isolate the main-network from the local networking device.  In addition, the wide operating temperature range from -40 oC to 70oC can satisfy most of operating environment.  Therefore, the switch is one of the most reliable choices for rolling stock Ethernet application.
