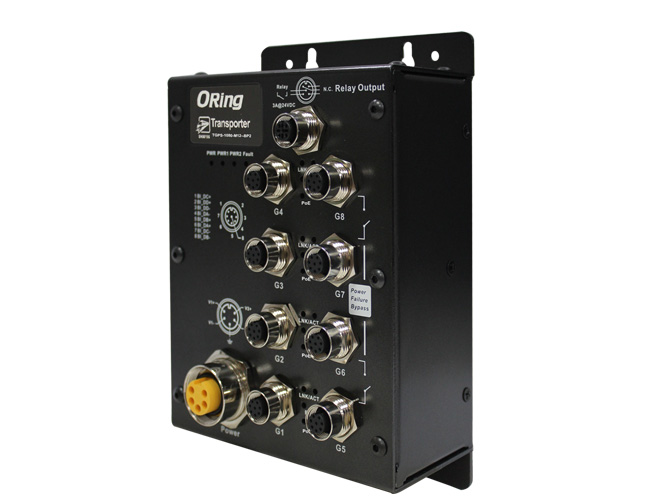

TGPS-1080-M12-BP2-24V - EN50155 IP40 8x 10/100/1000TX (PoE) with M12 connector unmanaged switch with Bypass Feature 24V
by ORing Industrial Networking

ORing’s TransporterTM series un-managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications.  The TGPS-1080-M12-BP2-24V is an un-managed PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. (4 of these ports also double as 2 sets of bypass ports), which is specifically designed for the toughest and fully compliant with EN50155 requirement.  TGPS-1080-M12-BP2-24V also supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network.  Each TGPS-1080-M12-BP2-24V switch has 8X10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports.  P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup.  TGPS-1080-M12-BP2-24V EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock.  TGPS-1080-M12-BP2-24V includes 2 sets of bypass ports that protect the network from failures and Network maintenance by ensuring network integrity during power loss.  T e wide operating temperature range from -40 oC to 70oC can satisfy most of operating environment.  Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed PoE Ethernet application.

Physical Ports
10/100/1000Base-T(X) Ports in M12With P.S.E.	8 x M12 connector (8-pin A-coding, bypass function included by last 4 ports)
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow control IEEE 802.3at compliant PoE specification (total power budget is 120Watts with maximum 30Watts per port)
MAC Table	8K MAC addresses
Processing	Store-and-Forward
LED Indicator
Power Indicator	Green : Power LED x 3
Fault indicator	Amber : Indicate PWR1 or PWR2 failure
10/100/1000Base-T(X) RJ45 port indicator and PoE indicator	Top Green for port Link/Act indicator Middle Green for PoE power injected indicator Bottom Amber for Duplex / Collision indicator
Fault Contact
Relay	Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding)
Power
Redundant Input power	Dual DC inputs. 24VDC (12 ~ 57VDC) on 5-pin M23 connector
Power Consumption (Typ.)	11 Watts (power consumption of P.S.E. is not included)
PoE Output Power	60 Watts (12~24VDC) / 120 Watts (24~57VDC)
Overload Current Protection	Present
Reverse Polarity Protection	NOT Present
Physical Characteristic
Enclosure	IP-40
Dimension (W x D x H)	125 (W) x 65 (D) x 196 (H) mm
Weight (g)	1010 g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 70°C (-40 to 158°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory approvals
EMI	FCC FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4)
EMS	EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety	EN60950-1
