Leading EN50155-compliant Ethernet switch for rolling stock applicationSupport O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet RedundancyO-Chain allows multiple redundant network ringsSupport standard IEC 62439-2 MRP (Media Redundancy Protocol) functionSupport IEEE 1588v2 clock synchronizationSupport IPV6 new internet protocol versionSupport Modbus TCP protocolSupport IEEE 802.3az Energy-Efficient Ethernet technologyProvided HTTPS/SSH protocol to enhance network securitySupport SMTP clientSupport IP-based bandwidth managementSupport application-based QoS managementSupport Device Binding security functionSupport DOS/DDOS auto preventionIGMP v2/v3 (IGMP snooping support) for filtering multicast trafficSupport SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network ManagementSupport ACL, TACACS+ and 802.1x User Authentication for securitySupports 9.6K Bytes Jumbo FrameMultiple notification for warning of unexpected eventWeb-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configurationSupport LLDP ProtocolProvided 2xRelay bypass function with four gigabit portsWall mounting enabled
|
|
|
TGS-9200-M12-BP2_DESCRIPTION.html

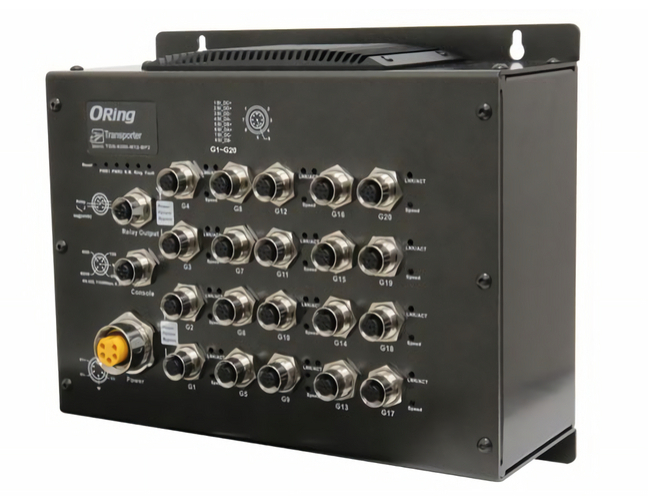

ORing's Transporter series managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. TGS-9200-M12-BP2 managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. TGS-9200-M12-BP2 is managed redundant ring Ethernet switch with 20x10/100/1000Base-T(X) ports which are specifically designed for the toughest and fully compliant with EN50155 requirement. The switch support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection), O-Chain, MRP, MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.
TGS-9200-M12-BP2 includes 2 sets of bypass ports that protect the network from failures and Network maintenance by ensuring network integrity during power loss. And support wide operating temperature from -40oC to 75oC. TGS-9200-M12-BP2 can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet, and console (CLI) configuration. Therefore, the switch is one of the most reliable choices for the EN50155 highly-managed Ethernet application.
TGS-9200-M12-BP2.html
Physical ports |
|---|
| 10/100/1000Base-T(X) ports in M12 | 20 x M12 connector (8-pin A-coding, female) | | RS-232 Serial Console port | RS-232 in M12 connector (5 pin female A-coding) with console cable. 115200bps, 8, N, 1 |
LED Indicators |
|---|
| Power Indicator (Power) | Green: Power LED x 2 | | Ring Master Indicator (R.M.) | Green: Indicates that the system is operating in O-Ring Master mode | | O-Ring Indicator (Ring) | Green: Indicates that the system operating in O-Ring mode
Green Blinking: Indicates that the Ring is broken.
| | Fault Indicator (Fault) | Amber: Indicate unexpected event occurred | | 10/100/1000Base-T(X) M12 Port Indicator | Top Green LED for Link/Act indicator.
Bottom dual color LED for Ethernet speed indicator: Green LED for 1000Mbps, Amber for 100Mbps, Off for 10Mbps |
Power |
|---|
| Power consumption (Typ.) | 21 Watts | | Redundant Input power | Dual DC inputs. 12~48VDC on 5-pin M23 female connector | | Overload current protection | Present | | Reverse polarity protection | Present |
Protection / Certification |
|---|
| Safety | IEC/EN 62368-1 |
Physical Characteristic |
|---|
| Enclosure | IP-30, Iron | | Dimensions (mm) | 260 (W) x 91.3 (D) x216 (H) mm10.236 (W) x 3.594 (D) x 8.504 (H) inch | | Weight (g) | 2495 g |
Technology |
|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol)
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
| | MAC Table | 8K | | Packet buffer Size | 4Mbits | | Priority Queues | 8 | | Processing | Store-and-Forward | | Switch Properties | Switching latency: 7 us
Switching bandwidth: 40Gbps
Max. Number of Available VLANs: 4095
IGMP multicast groups: 128 for each VLAN
Port rate limiting: User Define
| | Jumbo frame | Up to 9.6K Bytes | | Security Features | Device Binding security feature
Enable/disable ports, MAC based port security
Port based network access control (802.1x)
VLAN (802.1Q) to segregate and secure network traffic
Radius centralized password management
SNMPv3 encrypted authentication and access security
Https / SSH enhance network security
| | Software Features | STP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging and GVRP supported
IGMP Snooping
IP-based bandwidth management
Application-based QoS management
DOS/DDOS auto prevention
Port configuration, status, statistics, monitoring, security
DHCP Server/Client/Relay
SMTP Client
Modbus TCP
| | Network Redundancy | O-Ring
O-Chain
MRP
MSTP (RSTP/STP compatible)
| | Warning / Monitoring System | Relay output for fault event alarming
Syslog server / client to record and view events
Include SMTP for event warning notification via email
Event selection support
|
Fault contact |
|---|
| Relay | Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding, female connector) |
Reset Function |
|---|
| Reset Button | 5 sec: Factory default |
Environmental |
|---|
| Storage Temperature | -40 to 85? (-40 to 185?) | | Operating Temperature | -40 to 75? (-40 to 167?) | | Operating Humidity | 5% to 95% Non-condensing |
|
