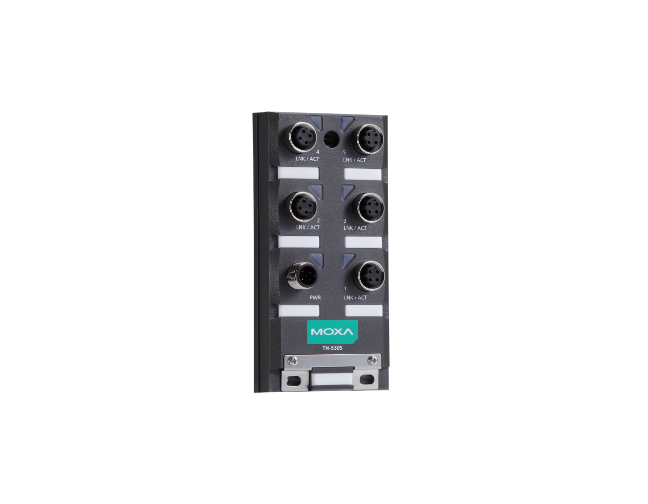

| • Technology |
| Standards |
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for Flow Control |
| Processing Type |
Store and Forward |
| Flow Control |
IEEE 802.3x full duplex, back pressure flow control |
| • Interface |
| M12 Ports |
10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| LED Indicators |
Power, LNK/ACT |
| • Power Requirements |
| Input Voltage |
• 24 VDC (12 to 45 V)
• 18 to 30 VAC (47 to 63 Hz) |
| Note |
Compliant with EN 50155 on 24 VDC |
| Input Current |
• 0.12A @ 24 VDC
• 0.28A @ 24 VAC |
| Overload Current Protection |
1.1 A (Limited Current) |
| Connection |
1 M12 socket (A-coding), single power input |
| Reverse Polarity Protection |
Present |
| • Physical Characteristics |
| Housing |
Plastic, IP67 protection |
| Dimensions |
60 x 125 x 29.6 mm (2.36 x 4.92 x 1.09 in) |
| Weight |
250 g |
| Installation |
Field-style mounting, DIN-Rail mounting (with optional kit) |
| • Environmental Limits |
| Operating Temperature |
Standard Models: -25 to 60°C (-13 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| • Standards and Certifications |
| Safety |
UL 508 |
| EMI |
FCC Part 15 Subpart B Class A, EN 55022 Class A |
| EMS |
EN 61000-4-2 (ESD) Level 3
EN 61000-4-3 (RS) exceeds Level 3
EN 61000-4-4 (EFT) Level 3
EN 61000-4-5 (Surge) Level 3
EN 61000-4-6 (CS) Level 2
EN 61000-4-8 |
| Rail Traffic |
(for panel mounting installations)
EN 50155*, EN 50121-4 (Pending) |
| Note |
*Complies with a portion of EN 50155 specifications. Please contact Moxa or a Moxa distributor for details. |
| Shock |
IEC 60068-2-27 |
| Freefall |
IEC 60068-2-32 |
| Vibration |
IEC 60068-2-6 |
| Note |
Please check Moxa’s website for the most up-to-date certification status. |
