• Technology |
Standards |
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for Flow Control
IEEE 802.3af for Power-over-Ethernet |
Processing Type |
Store and Forward |
Flow Control |
IEEE802.3x flow control, back pressure flow control |
• Interface |
M12 Ports |
10/100BaseT(X) auto negotiation speed, F/H duplex mode and auto MDI/MDI-X connection |
LED Indicators |
PWR, LNK/ACT, PoE |
• Power Requirements |
Input Voltage |
48 VDC (46 to 50 V) |
Input Current |
• TN-5308-4PoE: 1.6 A @ 48 VDC

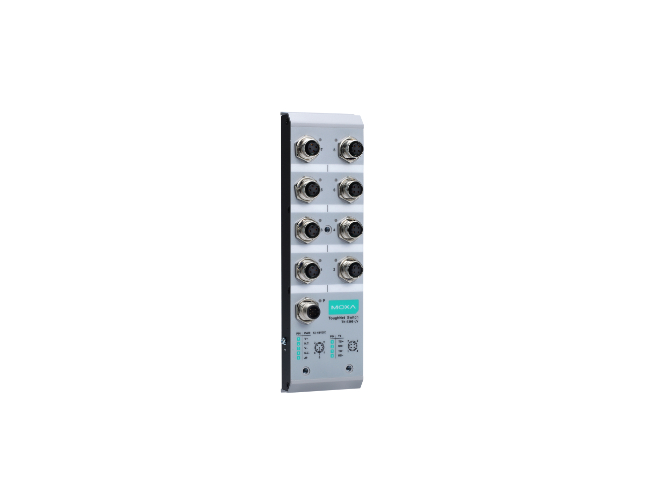

• TN-5308-8PoE: 2.9 A @ 48 VDC |
Overload Current Protection |
3 A @ 48 VDC |
Connection |
M12 connector |
Reverse Polarity Protection |
Present |
• PoE (per port) |
Max. Output Power |
15.4 W |
Output Voltage |
44 to 48.5 VDC |
Max. Output Current |
350 mA |
Max. Overload Protection |
400 mA |
• Physical Characteristics |
Housing |
Metal, IP40 protection |
Dimensions |
TN-5308-4PoE: 60 x 216.6 x 48.7 mm (2.36 x 8.53 x 1.91 in)
TN-5308-8PoE: 80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.1 in) |
Weight |
TN-5308-4PoE: 675 g
TN-5308-8PoE: 970 g |
Installation |
Panel mounting, DIN-Rail mounting (with optional kit) |
• Environmental Limits |
Operating Temperature |
Standard Models: -25 to 60°C (-13 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
Storage Temperature |
-40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
• Standards and Certifications |
Safety |
UL 508 (Pending) |
EMI |
FCC Part 15 Subpart B Class A, EN 55022 Class A |
EMS |
EN 61000-4-2 (ESD) Level 3
EN 61000-4-3 (RS) Level 3
EN 61000-4-4 (EFT) Level 3
EN 61000-4-5 (Surge) Level 3
EN 61000-4-6 (CS) Level 3
EN 61000-4-8 |
Rail Traffic |
(for panel mounting installations)EN 50155*, EN 50121-4 |
• *Complies with a portion of EN 50155 specifications. Please contact Moxa or a Moxa distributor for details. |
Shock |
IEC 61373 |
Freefall |
IEC 60068-2-32 |
Vibration |
IEC 61373 |
Note |
Please check Moxa’s website for the most up-to-date certification status. |
