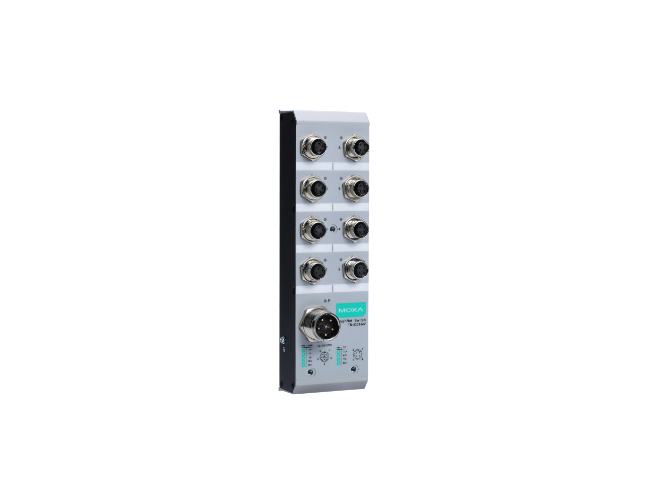

TN-5308-MV-T - Unmanaged Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, 72/96/110 VDC, -40 to 75 Degree C by MOXA

TN-5308-MV-T - Unmanaged Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, 72/96/110 VDC, -40 to 75 Degree C
by MOXA
Write a review Write a review
  • Universal 12/24/36/48 or 72/96/110 VDC power supply range
  • M12 connectors and IP40 metal housing
  • Supports IEEE 802.3/802.3u/802.3x
  • EN 50155 and 50121-4compliant
  • -40 to 75°C operating temperature range (T models)



Mfg SKU # : TN-5308-MV-T
Our Price : $968.89
Stock : Call for Availability
Quantity :
The ToughNet TN-5308 series M12 unmanaged Ethernet switches are designed for industrial applications in harsh environments. The TN series switches use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5308 series Ethernet switches provide 8 fast Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network. Models with an extended operating temperature range of -40 to 75°C are also available. The TN-5308 series Ethernet switches are compliant with EN50155/50121-4 requirements, making the switches suitable for a variety of industrial applications.
• Technology
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for Flow Control
Processing Type Store and Forward
Flow Control IEEE802.3x flow control, back pressure flow control
• Interface
M12 Ports 10/100BaseT(X) auto negotiation speed, F/H duplex mode and auto MDI/MDI-X connection
LED Indicators PWR, 10/100M
• Power Requirements
Input Voltage • TN-5308-LV: 12/24/36/48 VDC (8.4 to 60 VDC)
• TN-5308-MV: 72/96/110 VDC (50.4 to 137.5 VDC)
Note Compliant with EN 50155 on 24/48/72/96/110 VDC
Input Current • TN-5308-LV: 0.19A @ 12 VDC,
0.10A @ 24 VDC, 0.054A @ 48 VDC
• TN-5308-MV: 0.033A @ 72 VDC,
0.024A @ 96 VDC, 0.021A @ 110 VDC
Overload Current Protection Present
Connection • TN-5308-LV: M12 connector
• TN-5308-MV: M23 connector
Reverse Polarity Protection Present
• Physical Characteristics
Housing Metal, IP40 protection
Dimensions TN-5308-LV: 60 x 216.6 x 36.1 mm (2.36 x 8.53 x 1.42 in)
TN-5308-MV: 60 x 216.6 x 53.8 mm (2.36 x 8.53 x 2.12 in)
Weight TN-5308-LV: 485 g
TN-5308-MV: 685 g
Installation Panel mounting, DIN-Rail mounting (with optional kit)
• Environmental Limits
Operating Temperature Standard Models: -25 to 60°C (-13 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
• Standards and Certifications
Safety UL 508 (Pending)
EMI FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS EN 61000-4-2 (ESD) Level 3
EN 61000-4-3 (RS) exceeds Level 3
EN 61000-4-4 (EFT) Level 3
EN 61000-4-5 (Surge) Level 3
EN 61000-4-6 (CS) Level 3
EN 61000-4-8
Rail Traffic (for panel mounting installations)
EN 50155*, EN 50121-4
Note *Complies with a portion of EN 50155 specifications. Please contact Moxa or a Moxa distributor for details.
Shock IEC 61373
Freefall IEC 60068-2-32
Vibration IEC 61373
Note Please check Moxa’s website for the most up-to-date certification status.
