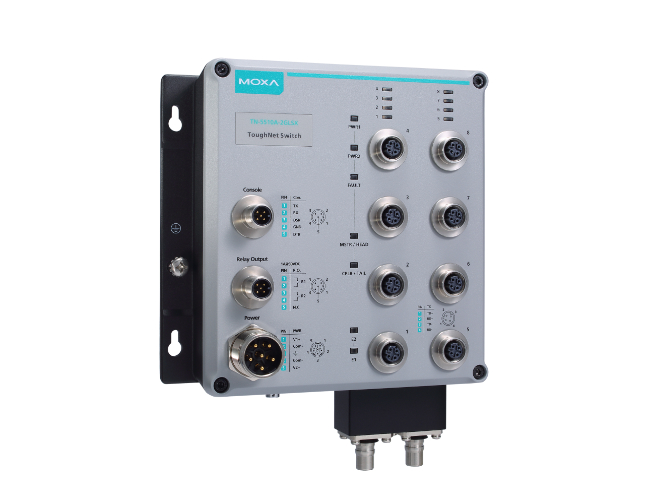

TN-5510A-2GLSX-ODC-WV-T - L2 Managed Ethernet switch with 8 10/100BaseT(X) and 2 1000 BaseLSX Q-ODC ports, 24 - 110 VDC dual pow
by MOXA
|
|
|
|
- 2 Gigabit fiber ports with embedded multi-mode Q-ODC® interface
- Isolated power inputs with wide 24 to 110 VDC power supply range
- Essential compliance with EN 50155*
- -40 to 75°C operating temperature range
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
|
|
|
The ToughNet TN-5510A-2GLSX-ODC and TN-5510A-8PoE-2GLSX-ODC series M12 managed Ethernet switches are designed for railway applications, such as rolling stock and wayside installations. The TN series switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. In addition, the 24 to 110 VDC wide power input range and isolated power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communications system. The TN-5510A-2GLSX-ODC and TN-5510A-8PoE-2GLSX-ODC switches provide up to 8 Fast Ethernet M12 ports, and 2 ports on the down side to provide the Gigabit fiber interface with an embedded 2-km multimode fiber transceiver.
The TN-5510A-8PoE-2GLSX-ODC series Ethernet switches have 8 Fast Ethernet M12 ports with 8 IEEE 802.3at/af compliant PoE (Power-over-Ethernet) ports. The PoE switches are classified as power source equipment (PSE); they provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones. Moreover, the -40 to 75°C operating temperature and IP54-rated waterproof enclosure allow deployment in harsh environments. The TN-5500A series Ethernet switches are compliant with essential sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.
| • Technology |
| Standards |
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP |
| Protocols |
IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, SNMP Inform, LLDP, IEEE 1588 PTP v2, IPv6, NTP Server/Client, EtherNet/IP, Modbus/TCP |
| MIB |
MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| Flow Control |
IEEE802.3x flow control, back pressure flow control |
| • Switch Properties |
| Priority Queues |
4 |
| Max. Number of Available VLANs |
64 |
| VLAN ID Range |
VID 1 to 4094 |
| IGMP Groups |
256 |
| • Interface |
| Fast Ethernet |
Front cabling, M12 D-coded 4-pin female connector, 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| Gigabit Ethernet |
Down cabling, Q-ODC® connector, 1000M (Gigabit Ethernet port), PoE (for PoE models) |
| Console Port |
M12 A-coding 5-pin male connector |
| System LED Indicators |
PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL |
| Port LED Indicators |
10/100M (Fast Ethernet port), 1000M (Gigabit Ethernet port) |
| Alarm Contact |
2 relay outputs in one M12 A-coding 5-pin male connector with current carrying capacity of 1 A @ 30 VDC |
| • Power Requirements |
| Overload Current Protection |
Yes |
| Connection |
M23 connector |
| Reverse Polarity Protection |
Yes |
| Input Voltage |
WV: 24 to 110 VDC (16.8 to 137.5 VDC) |
| Max. Input Current |
TN-5510A-2GLSX-ODC series: 0.45 A @ 24 VDC; 0.1 A @ 110 VDC
TN-5510A-8PoE-2GLSX-ODC series: TBD @ 24 VDC; TBD @110 VDC |
| • Physical Characteristics |
| Housing |
Aluminium alloy, IP54 protection (optional protective caps available for unused ports) |
| Dimensions |
• TN-5510A-2GLSX-ODC series:
185 x 204.3 x 76.0 mm (7.28 x 8.04 x 2.99 in)
• TN-5510A-8PoE-2GLSX-ODC series:
185 x 219.3 x 115 mm (7.28 x 8.63 x 4.53 in) |
| Weight |
TN-5510A-2GLSX-ODC series: 1,805 g
TN-5510A-8PoE-2GLSX-ODC series: 2,690 g |
| Installation |
Panel mounting, DIN-rail mounting (with optional kit: DK-DC50131) |
| • Environmental Limits |
| Operating Temperature |
-40 to 75°C (-40 to 167°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Vibration |
IEC 60068-2-6, 2-17.8 Hz: ±1.6 mm; 17.8-500 Hz: 2 g; 2 hours/axis |
| Shock |
IEC 60068-2-27, 20 g / 11 ms |
| Ingress Protection |
IEC 60529, IP54 |
| Altitude |
Up to 2000 m |
| Note |
Please contact Moxa if you require products guaranteed to function at higher altitudes |
| • Standards and Certifications |
| Safety |
UL/cUL 508, EN 60950-1 (LVD) |
| EMC |
EN 55022, EN 55024 |
| EMI |
CISPR 22, FCC Part 15B Class A |
| EMS |
IEC 61000-4-2 ESD: Contact 6 kV; Air 8 kV
IEC 61000-4-3 RS: 20 V/m (80 MHz to 1 GHz)
IEC 61000-4-4 EFT: Power 2 kV; Signal 2 kV
IEC 61000-4-5 Surge: Power 2 kV; Signal 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 |
| Rail Traffic |
(for panel mounting installations) EN 50155 (essential compliance*), EN 50121-4, EN 50121-3-2,
EN 45545-2 |
| • *Please contact Moxa or a Moxa distributor for details. |
| Shock |
IEC 61373 |
| Freefall |
IEC 60068-2-32 |
| Vibration |
EN 50155, IEC 61373 |
| Note |
Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF |
| Time |
TN-5510A-2GLSX-ODC series: 722,049 hrs
TN-5510A-8PoE-2GLSX-ODC series: TBD |
| Standard |
Telcordia SR332, GB, 25°C |
| Note |
Please check Moxa’s website for the most up-to-date certification status. |
|
|
