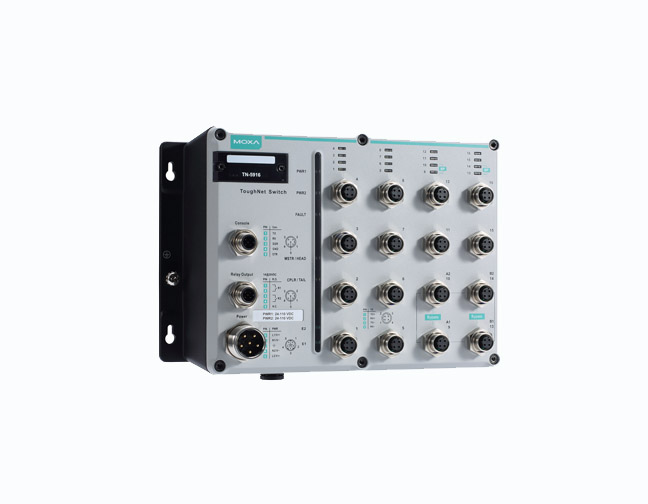

Moxa TN-5916-WV-T - Industrial NAT Router with 16 10/100BaseT(X) ports, 4 of 10/100BaseT(X) ports with Relay bypass function, WV
by MOXA
|
|
|
|
- Designed for rolling stock backbone networks
- Dual bypass relay
- Isolated power input range from 24 to 110 VDC
- Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
- -40 to 75°C operating temperature range
- Turbo Ring and RSTP/STP for network redundancy
|
|
|
TN-5916-WV-T is the ToughNet TN-5900 Series, designed for rolling stock backbone networks, are high-performance M12 routers with four bypass relay backbone ports. They support NAT and routing functionality to facilitate the deployment of applications across networks. The TN-5900 Series routers use M12 and other circular connectors to ensure tight, robust connections that guarantee reliability against environmental disturbances, such as vibration and shock.
The TN-5900 Series routers provide a wide power input range of 24 to 110 VDC. TN-5900 Series switches operate in an extended operating temperature range of -40 to 75°C and are compliant with the mandatory requirements of EN 50155/50121-4, making them suitable for a variety of industrial applications.
Additional Features and Benefits
-
Routing functionality to divide a large network into hierarchical subnets and allow data and information to communicate across networks
-
NAT makes IP management easier, since end devices in different carriages can use the same IP addresses
-
Leading EN 50155 Ethernet router for rolling stock applications
-
Turbo Ring and RSTP/STP for network redundancy
-
IGMP V1/V2 snooping for filtering multicast traffic
-
IEEE 802.1Q VLAN to ease network planning
-
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to improve reliability
-
Panel mounting or DIN-rail mounting installation capability
-
SNMPv3, HTTPS, and SSH to enhance network security
-
SNMP v1/v2c/v3 for different levels of network management
-
Port mirroring for online debugging
-
Automatic warning by exception through email and relay output
-
Line-swap fast recovery
-
Automatic recovery of connected device’s IP addresses
-
LLDP for automatic topology discovery in network management software
-
Configurable by web browser, Telnet/serial console, and CLI Windows utility
Input/ Output Interface |
Alarm Contact Channels |
2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC |
Ethernet Interface |
10/100/1000BaseT(X) Ports (M12 X-coded 4-pin female connector) |
12 |
10/100/1000BaseT(X) Ports (M12 X-coded 4-pin female connector with bypass relay) |
4 |
Standards |
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.3 for 10BaseT
IEEE 802.3ad for Static Port Trunk
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control |
Ethernet Software Features |
Configuration Options |
Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility |
Filter |
802.1Q, IGMP v1/v2, Static Multicast |
Management |
Back Pressure Flow Control, DHCP server, Flow control, HTTP, IPv4, LLDP, Port Mirror, QoS/CoS/ToS, RARP, SMTP, SNMP Inform, SNMP Trap, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Account Management |
MIB |
RFC1213 |
Redundancy Protocols |
Link Aggregation, RSTP, Static Port Trunk, STP, Turbo Ring v2 |
Routing Redundancy |
VRRP |
Security |
Broadcast storm protection, HTTPS/SSL, Local Account Accessibility, TACACS+, Port Lock, RADIUS, Rate Limit, SSH |
Time Management |
NTP Server/Client, SNTP |
Unicast Routing |
Static Route, RIPV1/V2 |
Switch Properties |
IGMP Groups |
256 |
MAC Table Size |
8 K |
Max. No. of VLANs |
16 |
VLAN ID Range |
VID 1 to 4094 |
LED Interface |
LED Indicators |
STATE, PWR1, PWR2, FAULT, 10/100/1000M |
NAT |
Features |
1-to-1, N-to-1, Port forwarding |
Serial Interface |
Console Port |
M12 A-coded male connector |
Power Parameters |
Input Current |
0.85 A @ 24 VDC, 0.17 A @ 110 VDC |
Input Voltage |
24/36/48/72/96/110 VDC, Redundant dual inputs, No. of power inputs: 2 |
Operating Voltage |
16.8 to 137.5 VDC |
Overload Current Protection |
Supported |
Power Connector |
M23 connector |
Reverse Polarity Protection |
Supported |
Physical Characteristics |
Housing |
Metal |
IP Rating |
IP54 |
Dimensions |
250 x 175.8 x 116.3 mm (9.84 x 6.92 x 4.58 in) |
Weight |
4,030 g (8.88 lb) |
Installation |
DIN-rail mounting (optional), Wall mounting |
Protection |
TN-5916-WV-CT-T: PCB conformal coating |
Environmental Limits |
Operating Temperature |
-40 to 75°C (-40 to 167°F) |
Storage Temperature (package included) |
-40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
Altitude |
2000 m |
Standards and Certifications |
EMC |
EN 55032/24 |
EMS |
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF |
Freefall |
IEC 60068-2-31 |
Radio Frequency |
FCC |
Railway |
EN 50121-4, EN 50155, IEC 60571 |
Railway Fire Protection |
EN 45545-2 |
Safety |
IEC 60950-1, UL 61010-2-201 |
Shock |
IEC 60068-2-27, IEC 61373, EN 50155 |
Vibration |
IEC 60068-2-64, IEC 61373, EN 50155 |
Declaration |
Green Product |
RoHS, CRoHS, WEEE |
MTBF |
Time |
556,025 hrs |
Standards |
Telcordia SR332 |
|
|
|
|
