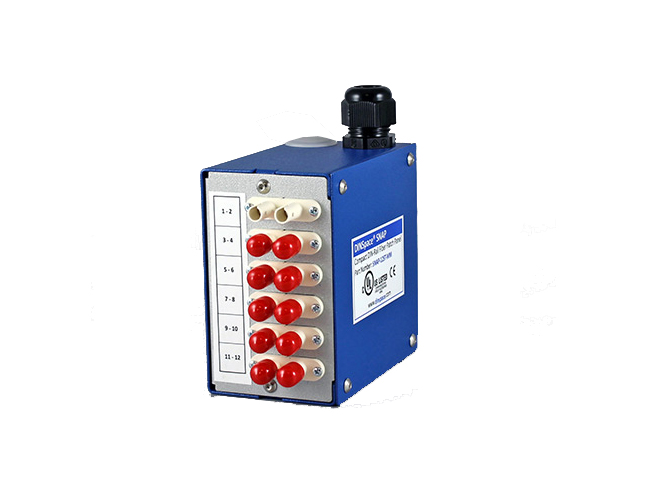

DINSpace SNAP-12ST-MM - SNAP Compact Fiber Patch Panel with 6ea. multimode ST/ST duplex fiber adapters.
by DINSPACE
|
|
|
|
- Fiber optic patch panel with six ST/ST duplex adapters for compact multimode connections
- Compact size perfect for limited space enclosures
- UL Listed 1863
- Versatile surface or DIN-Rail mount capability
- Slide-hinged faceplate aids field termination
- Patch or fusion splice field termination standard
- One splice holder for up to 12 splices
|
|
|
SNAP-12ST-MM is a DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Multimode ST/ST Duplex Adapters, UL/CE.
Compact DIN-Rail or surface mount fiber optic patch panel. Compact size allows minimum space requirements within control cabinetry. Device includes a splice tray to allow fusion splicing of field cabling (pigtails sold separately). Device features a sliding faceplate with capture mechanism to allow patch panel to be kept open “hands-free”.
| Scope of Delivery |
- Patch panel, DIN-Rail mounting adapter, 2ea. cable glands.
|
| Materials of Construction |
- Patch panel body and faceplate: 18 gauge powder-coat painted steel
- Fiber optic adapters: UL 90 V-0 Thermoplastic
- Cable Glands: Plastic with max. cable diameter of 12mm (14mm max. also available)
|
| Mechanical Construction |
- Dimensions with adapters installed: (H x D x W) 6.25″ x 5.125″ x 2.75″
- Mounting Options: Rear DIN-Rail, Side DIN-Rail or surface mount
- Weight: 1.5lbs.
- Protection class: IP20
|
| Specifications |
- Standards: UL Listed 1863 (Communications-Circuit Accessories), CE
- Operating temperature: -40 to +75 deg. C
- Storage/transport temperature: -40 to +80 deg. C
- Relative humidity (non-condensing): 10% to 95%
- Insertion Loss: ≤.3dB (Multimode), ≤.2dB (Singlemode)
- Plug/Unplug Durability: 1000 times
|
|
|
|
|
