Antaira SFP-M-T-H - **HP Compatible** 1.25Gbps Ethernet SFP Transceiver, Multi Mode 550M / LC / 850nm, -40~85C
by ANTAIRA
|
|
|
|
- Extended Operating Temperature
- 850nm VCSEL
- Data Rate: 1.25Gbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
- Duplex LC Connector
- Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25 Gbps
- Compliance with ANSI specifications for Fiber Channel applications at 1.06 Gbps
- Eye Safety (Designed to meet Laser Class 1, complies with EN60825-1)
|
|
|

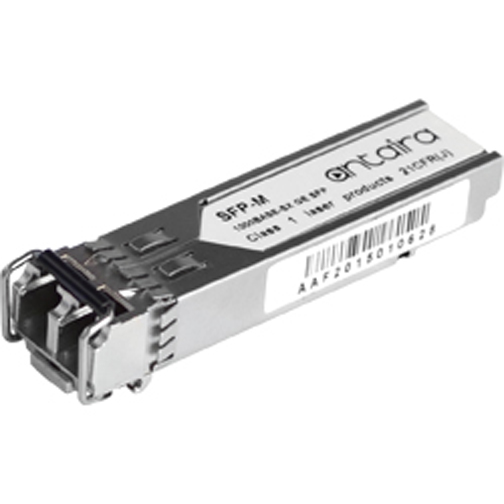

Antaira SFP-M-T-H
The SFP-M-T is a high performance and cost-effective module for serial optical data communication applications specified for multimode 1.25 Gb/s. It operates on +3.3V power. The module is intended for multimode fiber, operates at a nominal wavelength of 850nm, and complies with the Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP). Each module consists of a transmitter optical subassembly, a receiver optical subassembly, and an electrical subassembly. All are housed in a metal package and the combination produces a reliable component.
SFP-M-T-H: 1.25Gbps Ethernet SFP Transceiver, Multi Mode 550M/ LC/ 850nm, -40ºC~85ºC (HP compatible)
|
|
|
|
