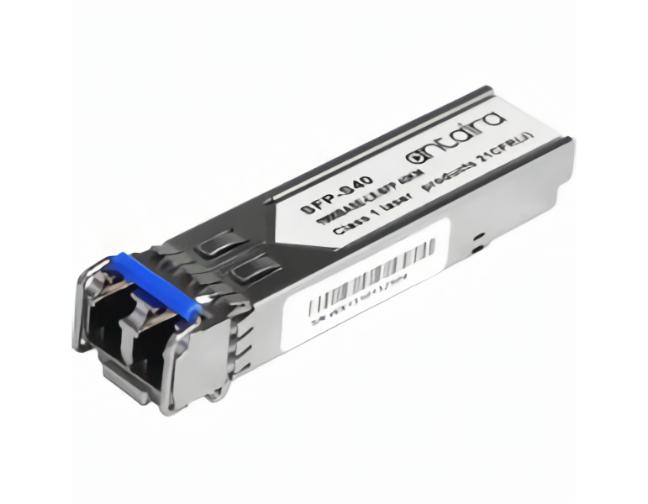

Antaira SFP-S40-T - 1.25Gbps Ethernet SFP Transceiver, Single Mode 40KM / LC / 1310nm,-40C~85C
by ANTAIRA
|
|
|
|
SFP-S40-T_SUMMARY.html
Features
- 1310nm DFB LD
- Data Rate: 1.25Gbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
- Duplex LC Connector
- Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25 Gbps
- Compliance with ANSI specifications for FiberChannel applications at 1.06 Gbps
- Eye Safety
- Designed to meet Laser Class 1 comply with EN60825-1
|
|
|
SFP-S40-T_DESCRIPTION.html
The SFP-S40-T is the high performance and cost-effective module for serial optical data communication applications specified for single mode of 1.25 Gb/s. It operates with +3.3V power supply. The module is intended for single mode fiber, operates at a nominal wavelength of 1310nm and complies with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)The module is a duplex LC connector transceiver designed for use in Gigabit Ethernet applications and to provide IEEE-802.3z compliant link for 1.25Gb/s long reach applications. The characteristics are performed in accordance with Telcordia Specification GR-468-CORE.
SFP-S40-T.html
| Data Rate |
1.25Gbps, NRZ |
| Dimensions |
13.70 x 56.50 x 8.95 mm (0.54 x 2.22 x 0.35 inches) |
| Distance |
40 Km |
| Interface |
LC (Single-Mode) |
| LD Type Wavelength |
1310 nm DFB LD |
| Operating Voltage And SD Output |
3.3V |
| Output Power |
-3 ~ +2 dBm |
| Sensitivity |
-23 dBm |
|
|
|
|
