Antaira SFP-WB10-T-TAA - 1.25G Gigabit SFP Transceiver WDM-B, SM/LC/10KM/11.0dB/TX:1550nm RX:1310nm, -40~85C - TAA compliant
by ANTAIRA
|
|
|
|
- Extended Operating Temperature
- 1550nm DFB LD
- TAA Compliant
- Multi Data Rate: from 125M to 1.25Gbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
- Single LC Connector
- Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25 Gbps
- Compliance with ANSI specifications for Fiber Channel applications at 1.06 Gbps
- Eye Safety (Designed to meet Laser Class 1, complies with EN60825-1)
|
|
|

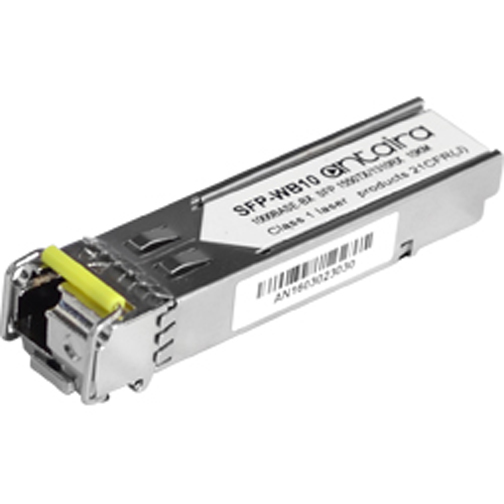

Antaira SFP-WB10-T-TAA
The SFP-WB10-T is a high performance and cost-effective SFP module for serial optical data communication applications specified for single mode of multi-rate from 125M to 1.25 Gb/s. It operates on +3.3V power. The SFP module is intended for single mode fiber, operates at a nominal wavelength of Tx: 1550nm / Rx: 1310nm, and complies with the Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP). Each SFP module consists of a bi-directional optical subassembly that combines a transmitter with a receiver and an electrical subassembly. All are housed in a metal package and the combination produces a reliable component.
Antaira SFP-WB10-T-TAA : 1.25G Gigabit SFP Transceiver WDM-B, SM/ LC/ 10KM/ 11.0dB/ TX: 1550nm RX: 1310nm, -40ºC~85ºC (TAA compliant)
|
|
|
|
