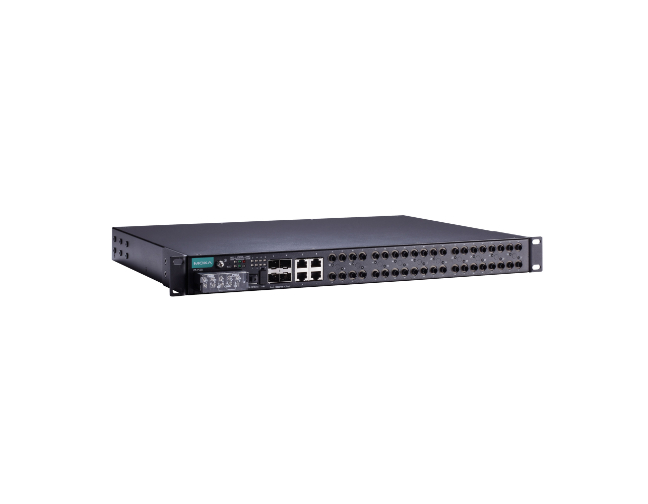

PT-7528-8MST-16TX-4GSFP-WV-WV - IEC 61850-3 managed rackmount Ethernet switch with 8 100BaseF(X) MST, 16 10/100BaseT(X), and 4 1 by MOXA

PT-7528-8MST-16TX-4GSFP-WV-WV - IEC 61850-3 managed rackmount Ethernet switch with 8 100BaseF(X) MST, 16 10/100BaseT(X), and 4 1
by MOXA

Write a review Write a review
  • IEC 61850-3, IEEE 1613 (power substations) compliant
  • Built-in MMS server based on IEC 61850-90-4 switch data modeling for Power SCADA
  • Noise Guard™ wire speed zero packet loss technology
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
  • Isolated redundant power supplies with universal 24/48 VDC or 110/220 VDC/VAC power supply range
  • -40 to 85°C operating temperature range
Mfg SKU # : PT-7528-8MST-16TX-4GSFP-WV-WV
Our Price : $3,779.00
Stock :Call for Availability
Quantity :
The PowerTrans PT-7528 series is designed for power substation automation applications that operate in extremely harsh environments. The PT-7528 series supports Moxa’s new Noise Guard technology, is compliant with IEC 61850-3, and its EMC immunity exceeds IEEE 1613 Class 2 standards to ensure zero packet loss while transmitting at wire speed. The PT-7528 series also features critical packet prioritization (GOOSE, SMVs, and PTP), a built-in MMS server, and a configuration wizard designed specifically for substation automation. With Gigabit Ethernet, redundant ring, and 110/220 VDC/VAC isolated redundant power supplies, the PT-7528 series further increases the reliability of your communications and saves cabling/wiring costs. The wide range of PT-7528 models available support multiple types of port configuration, with up to 28 copper or fiber ports and 4 gigabit ports for uplink. Taken together, these features allow greater flexibility, making the PT-7528 suitable for a variety of industrial applications.
 Technology
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
Protocols IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/ Client, BootP, TFTP, SNTP, SMTP, RARP, LACP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH, LLDP, IEEE 1588v2 PTP, EtherNet/IP, Modbus/TCP, IPv6, SNMP Inform, NTP Server/Client
MIB MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control IEEE 802.3x flow control, back pressure flow control
 Switch Properties
Priority Queues 4
Max. Number of Available VLANs 256
VLAN ID Range VID 1 to 4094
IGMP Groups 256
 Interface
RJ45 Ports 10/100/1000BaseT(X) auto negotiation speed
Fiber Ports 100/1000BaseSFP slot, 100BaseFX Multi-mode ST/SC Connector
Console Port USB console port (Type B connector)
Storage Port USB storage port (Type A connector)
System LED Indicators STAT, PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL
Mode LED Indicators LNK/ACT, SPEED
Alarm Contact 1 relay output with current carrying capacity of 3 A @ 30 VDC or 3 A @ 240 VAC
 Power Requirements
Input Voltage • WV: 24/48 VDC (18 to 72 V)
• HV: 110/220 VDC/VAC (88 to 300 VDC and 85 to 264 VAC)
Input Current For models with fewer than 8 fiber ports:
• Max. 0.741 A @ 24 VDC
• Max. 0.364 A @ 48 VDC
• Max. 0.147/0.077 A @ 110/220 VDC
• Max. 0.283/0.19 A @ 110/220 VAC
For models with 8 or more fiber ports:
• Max. 1.428 A @ 24 VDC
• Max. 0.735 A @ 48 VDC
• Max. 0.313/0.167 A @ 110/220 VDC
• Max. 0.586/0.382 A @ 110/220 VAC
Overload Current Protection Present
Connection 10-pin terminal block
Reverse Polarity Protection Present
 Physical Characteristics
Housing IP40 protection
Dimensions 440 x 44 x 325 mm (17.32 x 1.73 x 12.80 in)
Weight 4900 g
Installation 19’’ rack mounting
 Environmental Limits
Operating Temperature -40 to 85°C (-40 to 185°F), cold start requires min. of 100 VAC at -40°C
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
 Standards and Certifications
Safety UL 508
EMI FCC Part 15 Subpart B Class A, EN 55022 Class A
Power Automation IE C61850-3, IEEE 1613 Class 2 (models with MCS and SSC fiber ports are compliant with IEEE 1613 Class 1)
Traffic Control NEMA TS2
Rail Traffic EN 50121-4
