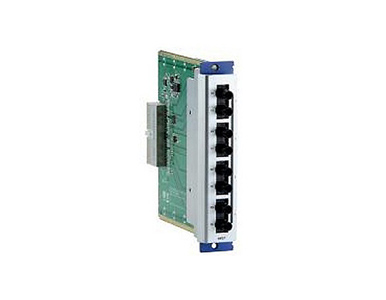

CM-600-4MST - Fast Ethernet interface module with 4 100BaseFX multi-mode ports, ST connectors, -40 to 75C operating temperature by MOXA
|
|
|
4-port Fast Ethernet interface modules for EDS-600 series Ethernet switches
|
|
|
Moxa's CM-600 series, CM-600-4MST , offer a rich selection of industrial Ethernet interface modules for the EDS-600 modular Ethernet switches. The new CM-600-4TX-PTP switch module for EDS-600 series industrial Ethernet switches that support the IEEE 1588 PTPv2 protocol enhances the performance of the EDS-600 series in time-critical industrial environments. This new feature reduces the message delay between devices at the micro-second level. Compared to traditional devices that rely on GPS for time synchronization, the IEEE 1588 PTPv2-compliant CM-600-4TX-PTP switch module enables you to synchronize your devices over an Ethernet network without any extra effort. Enjoy the greater flexibility and expandability by choosing from a diverse selection of 4-port Fast Ethernet modules with copper or fiber optic (SC/ST) connectors. Users can easily set up a versatile connectivity solution well-suited for specific application needs.
• Interface |
RJ45 Ports |
10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
Fiber Ports |
100BaseFX ports (SC/ST connector) |
• Optical Fiber |
|
• Power Requirements |
Power Consumption |
CM-600-4TX: 0.61 W
CM-600-4TX-BP: 2.38 W
CM-600-4TX-PTP: 3.46 W
CM-600-4MSC/4MST/4SSC: 2.44 W
CM-600-3MSC/1TX, -3MST/1TX, -3SSC/1TX: 2 W
CM-600-2MSC/2TX, -2MST/2TX, -2SSC/2TX: 1.56 W |
• Physical Characteristics |
IP Rating |
IP30 protection |
Dimensions |
29.7 x 144.4 x 144.8 mm (1.17 x 5.69 x 5.7 in) |
Weight |
CM-600-4TX: 190 g (0.42 lb)
CM-600-4TX-BP: 240 g (0.53 lb)
CM-600-4TX-PTP: 185 g (0.41 lb)
CM-600-4MSC, -4MST, -4SSC: 240 g (0.53 lb)
CM-600-3MSC/1TX, -3MST/1TX, -3SSC/1TX: 230 g (0.51 lb)
CM-600-2MSC/2TX, -2MST/2TX, -2SSC/2TX: 230 g (0.51 lb) |
• MTBF (mean time between failures) |
Time |
740,661 hrs |
Standard |
Telcordia (Bellcore), GB |
|
|
