Antaira QMX-0804G-2Q2S-T - 8-Port Industrial Gigabit Managed Ethernet Switch w/4*10/100/1000Tx + 2*100M/1G/2.5Gbps + 2*100M/1G S
by ANTAIRA
|
|
|
|
- Support 4*10/100/1000Tx RJ45 with 2*10/100/1000 SFP and 2*100/1000/2.5G SFP
- IEEE1588 v.2-based Precision Time Synchronization (PTPv.2) Profiles: 1588, G.8265.1 and G.8275.1
- ITU-T G.8032 compliant Ring Operation with < 20ms reconfiguration, up to 64 rings simultaneously
- Support for PROFINET Conformance Class A
- Access Security SNMPv3, HTTPS, and SSH
- Redundant DC Power Supply
- Operating Temperature Range: -40°C to 85°C
- 5-Year Warranty
|
|
|

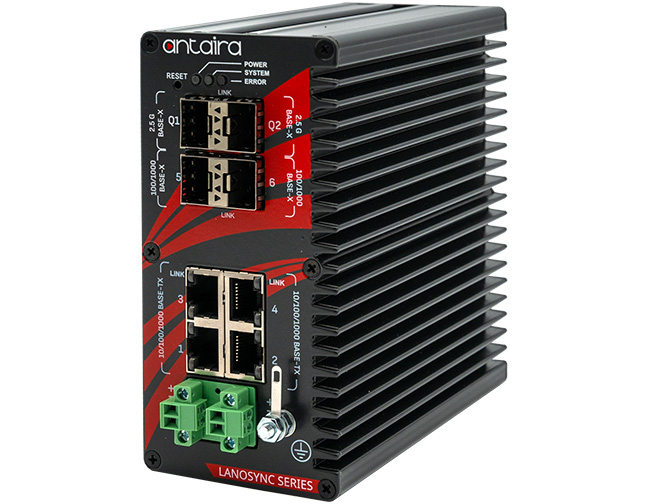

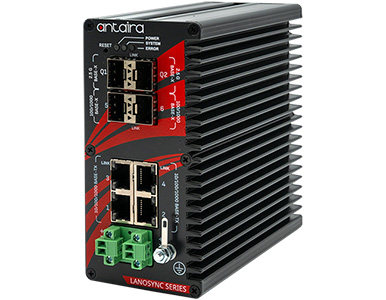

Antaira QMX-0804G-2Q2S-T
Antaira Technologies' QMX-0804G-2Q2S-T is equipped with four 10/100/1000 RJ45 ports, two 10/100/1000 SFP ports, and two 100M/1G/2.5G SFP ports. It features standard built-in secondary 4kV 10/700μs ITU K.44 surge protection on the RJ45 transmission paths. This device also supports precision time synchronization profiles based on IEEE1588 v.2 (PTPv.2), including 1588 default, G.8265.1, and G.8275.1. It operates with a 20-60V DC redundant power supply.
Specifications
- Total ports: 8
- RJ-45 GE: 4
- SFP 1G Fiber: 2
- SFP 2.5G Fiber: 2
- System power: 15W
- Input voltage: 20-60 VDC, redundant
- Operating temp: -40~85ºC
- Mounting: DIN-Rail
- Housing: Metal, IP40
|
|
|
|
