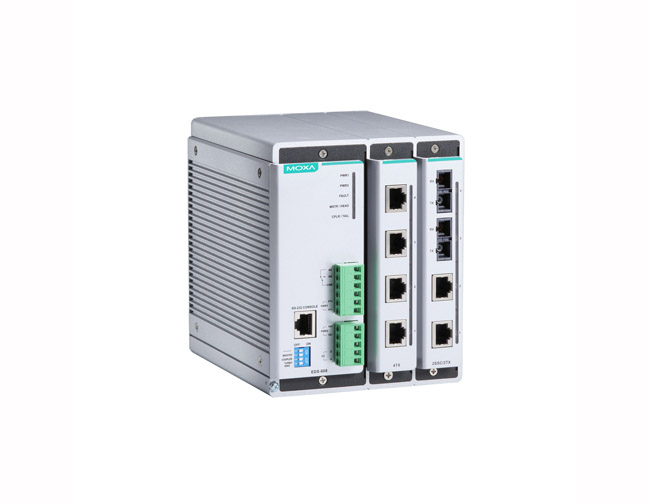

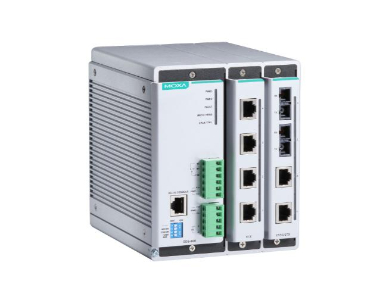

EDS-608 - Compact managed Ethernet switch system with 2 slots for 4-port fast Ethernet interface modules, for a total of up to 8 by MOXA

EDS-608 - Compact managed Ethernet switch system with 2 slots for 4-port fast Ethernet interface modules, for a total of up to 8
by MOXA

Write a review Write a review
  • Command Line Interface (CLI) for quickly configuring major managed functions
  • Hot swap media modules for continuous operation
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
  • IPv6 Ready logo awarded (IPv6 Logo Committee certified)
  • SNMP Inform for ensuring reliable event management
  • LLDP for automated topology discovery
  • DHCP Option 82 for IP address assignment with different policies
  • Software-based IEEE 1588 PTPv2 (Precision Time Protocol) for precise time synchronization of networks
  • Support EtherNet/IP and Modbus/TCP protocols for device management and monitoring
  • Compatible with PROFINET protocol for transparent data transmission
  • IGMP snooping and GMRP for filtering multicast traffic
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
  • Port Trunking for optimum bandwidth utilization
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • SNMPv1/v2c/v3 for different levels of network management
  • RMON for efficient network monitoring and proactive capability
  • Bandwidth management prevents unpredictable network status
  • Lock port function for blocking unauthorized access based on MAC address
  • Port mirroring for online debugging
  • Automatic warning by exception through e-mail, relay output
  • Digital inputs to integrate sensors and alarms with IP networks



Mfg SKU # : EDS-608
Our Price : $1,666.26
Stock : Call for Availability
Quantity :

The versatile modular design of the compact EDS-608 Series allows users to combine fiber and copper modules to create switch solutions suitable for any automation network. The EDS-608’s modular design lets you install 8 Fast Ethernet ports, and the advanced Turbo Ring and Turbo Chain (recovery time < 20 ms) technology, RSTP/STP, and MSTP help increase the reliability and availability of your industrial Ethernet network.

Models with an extended operating temperature range of -40 to 75°C are also available. The EDS-608 Series supports several reliable and intelligent functions, including IEEE 1588 PTPv2, EtherNet/IP, Modbus TCP, LLDP, DHCP Option 82, SNMP Inform, QoS, IGMP snooping, VLAN, TACACS+, IEEE 802.1X, HTTPS, SSH, SNMPv3, and more, making the Ethernet switches suitable for any harsh industrial environment.

Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions

  • SNMP Inform for ensuring reliable event management

  • LLDP for automated topology discovery

  • DHCP Option 82 for IP address assignment with different policies

  • Software-based IEEE 1588 PTPv2 (Precision Time Protocol) for time synchronization of networks

  • EtherNet/IP and Modbus TCP protocols for device management and monitoring

  • Compatible with PROFINET protocol for transparent data transmission

  • Automatic warning by exception through email and relay output

  • IGMP snooping and GMRP for filtering multicast traffic

  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • Port Trunking for optimum bandwidth utilization

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for proactive and efficient network monitoring

  • Bandwidth management to prevent unpredictable network status

  • Lock port function for blocking unauthorized access based on MAC address

  • Port mirroring for online debugging

Input/Output Interface

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA

  • Alarm Contact Channels

    Relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface

  • Module

    2 slots for any combination of 4-port interface modules, 10/100BaseT(X) or 100BaseFX

  • Standards

    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1X for authentication
    IEEE 802.3 for 10BaseT
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control

Ethernet Software Features

  • Filter

    GMRP, GVRP, IGMP v1/v2, Port-based VLAN

  • Industrial Protocols

    EtherNet/IP, Modbus TCP

  • Management

    Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

  • MIB

    Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

  • Redundancy Protocols

    Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2

  • Security

    Broadcast storm protection, HTTPS/SSL, Port Lock, RADIUS, SSH, TACACS+

  • Time Management

    NTP Server/Client, SNTP

Switch Properties

  • IGMP Groups

    256

  • MAC Table Size

    8 K

  • Max. No. of VLANs

    64

  • Packet Buffer Size

    1 Mbits

  • Priority Queues

    4

  • VLAN ID Range

    VID 1 to 4094

LED Interface

  • LED Indicators

    PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL

Serial Interface

  • Console Port

    RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

DIP Switch Configuration

  • Ethernet Interface

    Turbo Ring, Master, Coupler, Reserve

Power Parameters

  • Connection

    1 removable 6-contact terminal block(s)

  • Input Voltage

    12/24/48 VDC, Redundant dual inputs

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

Physical Characteristics

  • IP Rating

    IP30

  • Dimensions

    124.9 x 151 x 157.2 mm (4.92 x 5.95 x 6.19 in)

  • Weight

    2080 g (4.59 lb)

  • Installation

    DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

  • Operating Temperature

    EDS-608: 0 to 60°C (32 to 140°F)
    EDS-608-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

Standards and Certifications

  • Freefall

    IEC 60068-2-32

  • EMC

    EN 55032/24, EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Hazardous Locations

    ATEX, Class I Division 2

  • Maritime

    ABS, DNV-GL, LR, NK

  • Railway

    EN 50121-4

  • Safety

    EN 60950-1, UL 508, UL 60950-1

  • Shock

    IEC 60068-2-27

  • Traffic Control

    NEMA TS2

  • Vibration

    IEC 60068-2-6

MTBF

  • Time

    596,219 hrs

  • Standards

    Telcordia (Bellcore), GB
