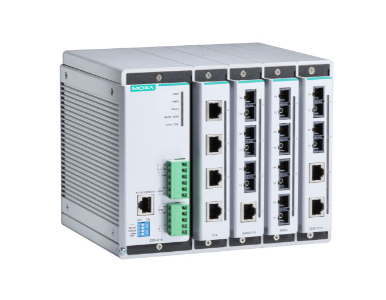

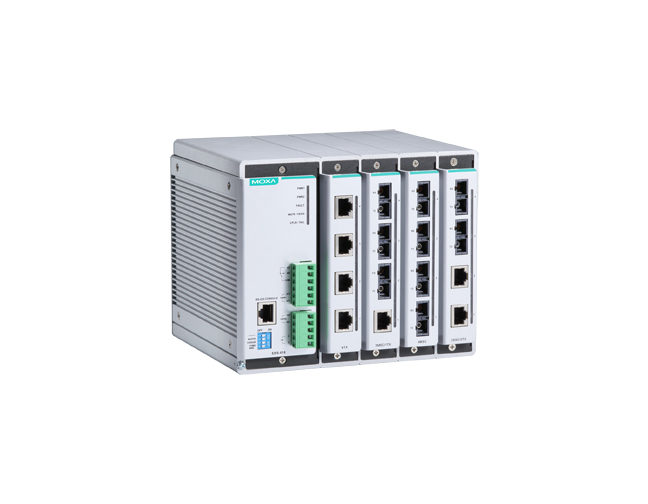

EDS-616-T - Compact managed Ethernet switch system with 4 slots for 4-port fast Ethernet interface modules, for a total of up to
by MOXA

The versatile modular design of the compact EDS-616-T Series allows users to combine fiber and copper modules to create switch solutions suitable for any automation network. The EDS-608’s modular design lets you install 8 Fast Ethernet ports, and the advanced Turbo Ring and Turbo Chain (recovery time < 20 ms) technology, RSTP/STP, and MSTP help increase the reliability and availability of your industrial Ethernet network.

Models with an extended operating temperature range of -40 to 75°C are also available. The EDS-608 Series supports several reliable and intelligent functions, including IEEE 1588 PTPv2, EtherNet/IP, Modbus TCP, LLDP, DHCP Option 82, SNMP Inform, QoS, IGMP snooping, VLAN, TACACS+, IEEE 802.1X, HTTPS, SSH, SNMPv3, and more, making the Ethernet switches suitable for any harsh industrial environment.

Additional Features and Benefits

• Command line interface (CLI) for quickly configuring major managed functions

• SNMP Inform for ensuring reliable event management

• LLDP for automated topology discovery

• DHCP Option 82 for IP address assignment with different policies

• Software-based IEEE 1588 PTPv2 (Precision Time Protocol) for time synchronization of networks

• EtherNet/IP and Modbus TCP protocols for device management and monitoring

• Compatible with PROFINET protocol for transparent data transmission

• Automatic warning by exception through email and relay output

• IGMP snooping and GMRP for filtering multicast traffic

• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

• QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

• Port Trunking for optimum bandwidth utilization

• SNMPv1/v2c/v3 for different levels of network management

• RMON for proactive and efficient network monitoring

• Bandwidth management to prevent unpredictable network status

• Lock port function for blocking unauthorized access based on MAC address

• Port mirroring for online debugging

Input/Output Interface

• Digital Inputs

  +13 to +30 V for state 1
  -30 to +3 V for state 0
  Max. input current: 8 mA

• Alarm Contact Channels

  Relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface

• Module

  2 slots for any combination of 4-port interface modules, 10/100BaseT(X) or 100BaseFX

• Standards

  IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control

Ethernet Software Features

• Filter

  GMRP, GVRP, IGMP v1/v2, Port-based VLAN

• Industrial Protocols

  EtherNet/IP, Modbus TCP

• Management

  Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

• MIB

  Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

• Redundancy Protocols

  Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2

• Security

  Broadcast storm protection, HTTPS/SSL, Port Lock, RADIUS, SSH, TACACS+

• Time Management

  NTP Server/Client, SNTP

Switch Properties

• IGMP Groups

  256

• MAC Table Size

  8 K

• Max. No. of VLANs

  64

• Packet Buffer Size

  1 Mbits

• Priority Queues

  4

• VLAN ID Range

  VID 1 to 4094

LED Interface

• LED Indicators

  PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL

Serial Interface

• Console Port

  RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

DIP Switch Configuration

• Ethernet Interface

  Turbo Ring, Master, Coupler, Reserve

Power Parameters

• Connection

  1 removable 6-contact terminal block(s)

• Input Voltage

  12/24/48 VDC, Redundant dual inputs

• Overload Current Protection

  Supported

• Reverse Polarity Protection

  Supported

Physical Characteristics

• IP Rating

  IP30

• Dimensions

  124.9 x 151 x 157.2 mm (4.92 x 5.95 x 6.19 in)

• Weight

  2080 g (4.59 lb)

• Installation

  DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature

  EDS-608: 0 to 60°C (32 to 140°F)
  EDS-608-T: -40 to 75°C (-40 to 167°F)

• Storage Temperature (package included)

  -40 to 85°C (-40 to 185°F)

• Ambient Relative Humidity

  5 to 95% (non-condensing)

Standards and Certifications

• Freefall

  IEC 60068-2-32

• EMC

  EN 55032/24, EN 61000-6-2/-6-4

• EMI

  CISPR 32, FCC Part 15B Class A

• EMS

  IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF

• Hazardous Locations

  ATEX, Class I Division 2

• Maritime

  ABS, DNV-GL, LR, NK

• Railway

  EN 50121-4

• Safety

  EN 60950-1, UL 508, UL 60950-1

• Shock

  IEC 60068-2-27

• Traffic Control

  NEMA TS2

• Vibration

  IEC 60068-2-6

MTBF

• Time

  596,219 hrs

• Standards

  Telcordia (Bellcore), GB
