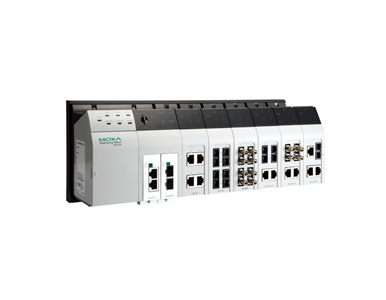

EDS-82810G-4GSFP - Layer 3 24+4G Port Modular Managed Switch with 4 1000BaseSFP slots
by MOXA

The EDS-82810G-4GSFP features a versatile modular design that allows different combinations of fiber and copper modules, creating a wide array of connection options ideal for any automation network. The modular design lets you install up to 4 Gigabit ports and 24 Fast Ethernet ports. The EDS-828 Series is specially designed for redundant Gigabit network backbones and uses a modular configuration to provide a high degree of flexibility for network expansion. Top network performance, security, and reliability are assured through the EDS-828’s advanced management and security features.

The EDS-828 Series also features industrial-grade construction, a console port for automatic configuration backup, and an angled LED troubleshooting panel that can be conveniently viewed from both horizontal and vertical orientations. In addition to Layer 2 features, the EDS-828 Series is a high-performance Layer 3 Ethernet switch designed for network routing. The improved hardware technology built into the EDS-828 Series replaces the software logic used by traditional routers, offering better performance, and making the switch ideal for large-scale local area networks.

Additional Features and Benefits

• Layer 3 switching functionality to move data and information across networks

• Command line interface (CLI) for quickly configuring major managed functions

• Supports advanced VLAN capability with Q-in-Q tagging

• Software-based IEEE 1588 PTPv2 (Precision Time Protocol) for time synchronization of networks

• DHCP Option 82 for IP address assignment with different policies

• Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring

• Compatible with PROFINET protocol for transparent data transmission

• IGMP snooping and GMRP for filtering multicast traffic

• IEEE 802.1Q VLAN and GVRP protocol to ease network planning

• Digital inputs for integrating sensors and alarms with IP networks

• QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

• Port Trunking for optimum bandwidth utilization

• Access Control Lists (ACL) increase the flexibility and security of network management

• SNMPv1/v2c/v3 for different levels of network management

• RMON for proactive and efficient network monitoring

• Bandwidth management to prevent unpredictable network status

• Lock port function for blocking unauthorized access based on MAC address

• Port mirroring for online debugging

• Automatic warning by exception through email and relay output

• Configurable by Web browser, Telnet/serial console, CLI, Windows utility, and ABC-01 automatic backup configurator

• Redundant, dual DC power inputs

Input/Output Interface

• Alarm Contact Channels

  2, Relay output with current carrying capacity of 1 A @ 24 VDC

• Digital Input Channels

  2

• Digital Inputs

  +13 to +30 V for state 1
  -30 to +3 V for state 0
  Max. input current: 8 mA

Ethernet Interface

• Module

  6 slots for any combination of 4-port interface modules, 10/100BaseT(X) or 100BaseFX; 2 slots for any combination of 2-port interface modules, 10/100/1000BaseT(X) or 1000BaseSFP

• Standards

  IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control
  IEEE 802.3z for 1000BaseX

Ethernet Software Features

• Filter

  GMRP, GVRP, IGMP v1/v2, QinQ VLAN, VLAN unaware, 802.1Q VLAN

• Industrial Protocols

  EtherNet/IP, Modbus TCP

• Management

  Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

• MIB

  Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

• Multicast Routing

  DVMRP, PIM-DM

• Redundancy Protocols

  Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2

• Routing Redundancy

  VRRP

• Security

  Access control list, Broadcast storm protection, HTTPS/SSL, Port Lock, RADIUS, SSH, TACACS+

• Time Management

  NTP Server/Client, SNTP

• Unicast Routing

  OSPF, RIPV1/V2, Static Route

Switch Properties

• IGMP Groups

  256

• MAC Table Size

  16 K

• Max. No. of VLANs

  64

• Packet Buffer Size

  32 Mbits

• Priority Queues

  4

• VLAN ID Range

  VID 1 to 4094

Serial Interface

• Console Port

  RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

Power Parameters

• Connection

  2 removable 6-contact terminal block(s)

• Input Current

  0.82 A @ 24 VDC

• Input Voltage

  24 VDC, Redundant dual inputs

• Operating Voltage

  12 to 45 VDC

• Overload Current Protection

  Supported

• Reverse Polarity Protection

  Supported

Physical Characteristics

• IP Rating

  IP30

• Dimensions

  362.4 x 142.5 x 128 mm (14.27 x 5.61 x 5.04 in)

• Weight

  1950 g (4.30 lb)

• Installation

  DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature

  0 to 60°C (32 to 140°F)

• Storage Temperature (package included)

  -40 to 85°C (-40 to 185°F)

• Ambient Relative Humidity

  5 to 95% (non-condensing)

Standards and Certifications

• Freefall

  IEC 60068-2-32

• EMC

  EN 55032/24

• EMI

  CISPR 32, FCC Part 15B Class A

• EMS

  IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF

• Maritime

  ABS, DNV-GL, LR, NK

• Safety

  EN 60950-1, UL 508, UL 60950-1, CSA C22.2 No. 60950-1

• Shock

  IEC 60068-2-27

• Vibration

  IEC 60068-2-6

MTBF

• Time

  191,203 hrs

• Standards

  Telcordia SR332
