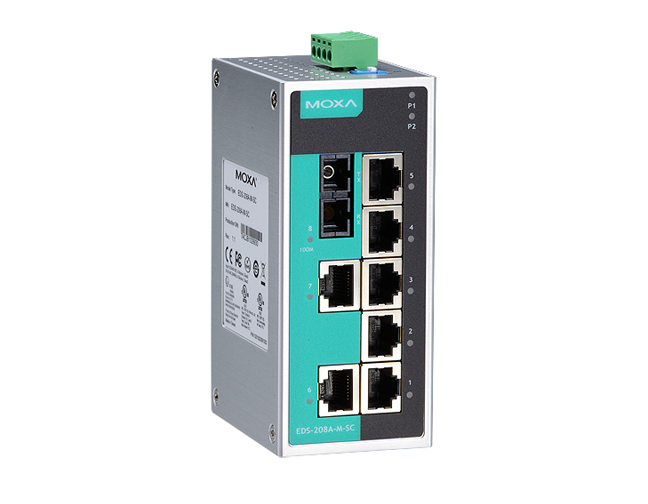

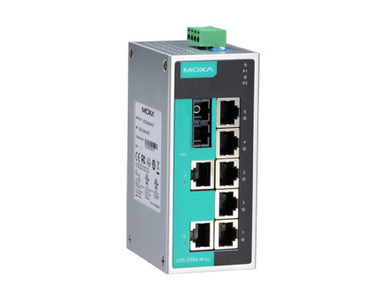

EDS-208A-M-SC-T - Unmanaged Ethernet switch with 7 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with SC connectors by MOXA
|
|
|
- 8 Port Unmanaged Ethernet Switch
- Ethernet: 7 x 10/100BaseT(X) (RJ45 connector),
- Fiber: 1 x 100BaseFX (multi-mode, SC connector)
- Redundant dual 12/24/48 VDC, 18 to 30 VAC power inputs
- IP30 aluminum housing
- Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ATEX Zone 2), Transportation (NEMA TS2/ EN 50121-4/e-Mark), and maritime environments (DNV/GL/LR/ABS/NK)
- -40 to 75°C (14-140°F) operating temperature range (T models)
|
|
|
The EDS-208A-M-SC-T series are 8-port industrial Ethernet switches that support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The EDS-208A-M-SC-T switches provide 12/24/48 VDC (9.6 to 60 VDC), 18 to 30 VAC redundant power inputs that can be connected simultaneously to live AC/DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications(EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards.
The EDS-208A-M-SC-T switches are available with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-208A-M-SC-T switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.
• Technology |
Standards |
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for Flow Control |
Processing Type |
Store and Forward |
Flow Control |
IEEE 802.3x flow control, back pressure flow control |
• Switch Properties |
MAC Table Size |
1 K |
Packet Buffer Size |
512 kbit |
• Interface |
Fiber Ports |
100BaseFX ports (SC/ST connector, multi-mode, single-mode) |
RJ45 Ports |
10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
DIP Switches |
Enable/Disable broadcast storm protection |
LED Indicators |
Power, 10/100M (TP port), 100M (fiber port) |
• Optical Fiber |
|
• Power Requirements |
Input Voltage |
12/24/48 VDC (9.6 to 60 VDC), 18 to 30 VAC (47 to 63 Hz), redundant dual inputs |
Input Current |
EDS-205A: 0.1 A @ 24 V
EDS-205A-M/S: 0.11 A @ 24 V
EDS-208A: 0.13 A @ 24 V
EDS-208A-M: 0.17 A @ 24 V
EDS-208A-MM/SS: 0.22 A @ 24 V |
Overload Current Protection |
1.1 A |
Connection |
1 removable 4-contact terminal block |
Reverse Polarity Protection |
Present |
• Physical Characteristics |
Housing |
Aluminum, IP30 protection |
Dimensions |
EDS-205A Series: 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)
EDS-208A Series: 50 x 115 x 70 mm (1.96 x 4.52 x 2.76 in) |
Weight |
EDS-205A Series: 175 g
EDS-208A Series: 275 g |
Installation |
DIN-rail mounting, wall mounting (with optional kit) |
• Environmental Limits |
Operating Temperature |
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
Storage Temperature |
-40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
• Standards and Certifications |
Safety |
UL 508 |
Hazardous Location |
UL/cUL Class 1 Division 2 Groups A/B/C/D,
ATEX Zone 2 Ex nA nC IIC T4 Gc, , IECEx* (EDS-205A series, -IEX models only) |
EMI |
FCC Part 15 Subpart B Class A, EN 55022 Class A |
EMS |
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11 |
Marine |
DNV, GL, LR, ABS, NK |
Wheeled Vehicles |
e-Mark (E1) (EDS-208A only) |
Traffic Control |
NEMA TS2 |
Rail Traffic |
EN 50121-4 |
Shock |
IEC 60068-2-27 |
Freefall |
IEC 60068-2-32 |
Vibration |
IEC 60068-2-6 |
• MTBF (mean time between failures) |
Time |
EDS-205A Series: 3,040,784 hrs
EDS-208A Series: 2,428,212 hrs |
Database |
Telcordia (Bellcore), GB |
|
|
|
|
