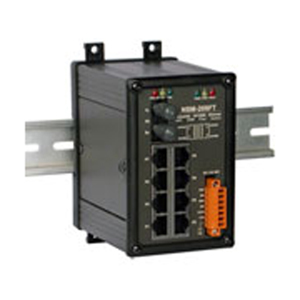

| Technology |
| Standards |
IEEE802.3, 802.3u, 802.3x |
| Processing Type |
Store & forward wire speed switching - no delays |
| MAC Addresses |
1024 |
| Memory Bandwidth |
3.2 Gbps |
| Flow Control |
IEEE802.3x flow control, back pressure flow control |
| Interface |
| RJ45 port |
10/100BaseT(X) auto negotiation speed, F/H duplex mode,
and auto MDI/MDIX connection |
| Fiber Optic port |
100 Base-FX(Multi-mode; ST connector) |
| LED Indicators |
10/100M, Link/Act, Full duplex/Half duplex(Fiber Port) |
| Ethernet Isolation |
1500 Vrms 1 minute |
| Frame Ground for EMS Protection |
Yes |
| Fiber Optic |
Multi mode fiber cables:50/125, 62.5/125 or 100/140 μm |
| Distance :2 km, (62.5/125 μm recommended) for full duplex |
| Wavelength : 1300 or 1310nm |
| Min. TX Output:- 20 dBm |
| Max. TX Output: -14 dBm |
| RX Sensitivity: -34 to -31 dBm |
| Ethernet Transmission distance |
Ethernet : 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100-ohm |
| Fast Ethernet : 2-pair UTP/STP Cat. 5, EIA/TIA-568 100-ohm |
| Power |
| Redundant Input Range |
+10 ~ +30VDC (Non-isolation) |
| Alarm Contact |
One relay output with current carrying capacity of 2A @ 30 VDC |
| Power consumption |
0.17A@24VDC, +/- 5% arrowed with 100M Full duplex |
| LED Indicators |
Power input1, Power input2, Power fail |
| Protection |
Power reverse polarity protection |
| Frame Ground for EMS Protection |
Yes |
| Connection |
7-Pin Removable Terminal Block |
| Mechanical |
| Case |
Metal |
| Environmental rating |
IP20 |
| Dimensions |
72.5mm x 110mm x 102mm (W x H x D) |
| Installation |
DIN rail mount; Wall Mounting |
| Environmental |
| Operating Temperature |
0 ~ +70°C |
| Storage Temperature |
-20 ~ +85°C |
| Ambient Relative Humidity |
10% to 90% non-condensing |
