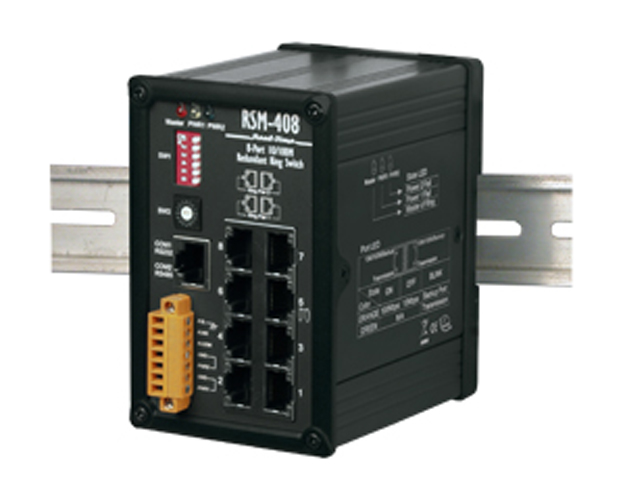

RSM-408 - Industrial Etherent Real Time Redundant Ring Switch, 8 port, Metal Case by ICP DAS

RSM-408 - Industrial Etherent Real Time Redundant Ring Switch, 8 port, Metal Case
by ICP DAS

Write a review Write a review

8 Port Redundant Ring Switch. Can Satisfy the Requirement for Link-Loss-Backup in Industrial Field Applications. Supports Versatile Topologies. Equipped with 2 Power Inputs that are Redundant for Each Other. Relay Output Facility Can Deliver a Warning Signal due to Power Failure or Link Loss. With the Support of Modbus TCP Protocol, Administration of Ethernet LAN can get information from RS-408 of individual port status.



Mfg SKU # : RSM-408
List Price : $729.00
Our Price : $715.00
Stock : Call for Availability
Quantity :

RS-408 series are ICPDAS’ latest real-time redundant ring switches.
They can satisfy the requirement for link-lose-backup in the industrial field application:

Link-Loss-Backup:
The Backup path will become Active within 100ms (configurable),
and keep the whole LAN working
Link Loss Backup



RS-405 series supports versatile topologies:

Versatile Topologies:
The proprietary STP protocol of RS-408 allows users to construct
more complicated topologies than basic ring architecture.
Versatile Topologies



It is also possible to construct a cost effective redundant ring Ethernet LAN by mixing
RS-408 with other low cost unmanaged Ethernet Switch, the NS-205/208 series.

Cost Effective Ring Ethernet:

Having one RS-408 and other lower cost unmanaged Ethernet
switches (e.g. NS-205/208 series) in a ring, this Ethernet LAN
is also tolerant to link lose.
Cost Effective Ring Ethernet




RS-408 series are equipped with 2 power inputs, which are redundant for each other.
The relay output facility can deliver warning signal during power failure or link loss.

Relay Output:
The relay output of RS-408 could deliver warning signal when
failure on one power input or when link lose.
Cost Effective Ring Ethernet



With supporting Modbus/TCP protocol, the administrator of Ethernet LAN
can get the information of individual port status of RS-408.

Modbus/TCP:
RS-408 series supports Modbus/TCP protocol. Using this protocol,
administrator of Ethernet LAN can read port status of RS-408 and
SCADA can know the condition of the LAN it's based on.

Cost Effective Ring Ethernet


  • Plug and Play
  • Provides redundant path to Ethernet LAN
  • Support various ring Topologies
  • Real-time performance
  • Certified for harsh industrial environments
  • Support Modbus/TCP protocol to read port status
  • Relay output for link lose alarm
  • Supports redundant power input
  • Din Rail Mount

Ethernet switch type

Intelligent store & forward

RJ45 ports (shielded)

10/100BaseT(x)

RJ45 speed (auto-negotiating)

10 Mbps or 100 Mbps

RJ45 auto-mdi/mdi-x

All 8 ports

Ethernet protocols supported

All standard IEEE 802.3

Memory bandwidth

3.2 Gbps

Completely compliant

IEEE 802.3, IEEE 802.3u, IEEE802.3x

Full or half duplex operation

Auto-sensing

MAC addresses supported

2K

Ethernet isolation

1500 VRMS 1 minute

Required supply voltage

+10 ~ +30 VDC

Power input isolation

1KV

Power consumption
(Redundant input terminals)

8 W
(typical - all ports active at 100 Mbps)

Operating temperature

-30°C ~ +75°C

Storage temperature

-40°C ~ +85°C

Vibration

EN 50155 and EN11373.

EMC immunity

EN61326-1 (EN61000-4-2, 3, 4, 5, 6)

RSM-408.pdf4,156 K
