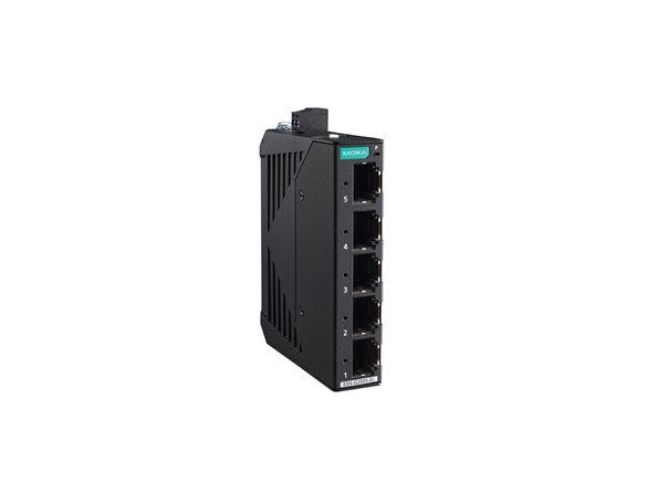

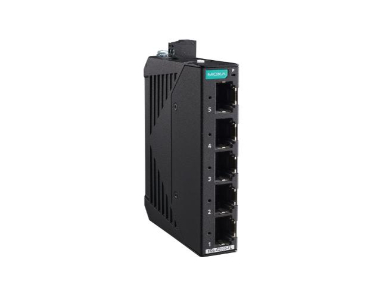

EDS-G2005-EL - 5-Port full gigabit Entry-level Unmanaged Switch, 5 Fast TP ports, -10 to 60°C
by MOXA

The EDS-G2005-EL of industrial Ethernet switches have five Gigabit Ethernet ports, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-G2005-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-G2005-EL Series has a rugged metal housing to ensure suitability for use in industrial environments.

Ethernet Interface

• 10/100/1000BaseT(X) Ports (RJ45 connector)

  • 5
    Full/Half duplex mode
    Auto MDI/MDI-X connection
    Auto negotiation speed

• Standards

  • IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.1p for Class of Service
    IEEE 802.3x for flow control

Switch Properties

• Processing Type

  • Store and Forward

• MAC Table Size

  • 4 K

• Packet Buffer Size

  • 1.5 Mbits

DIP Switch Configuration

• Ethernet Interface

  • Quality of Service (QoS), Broadcast Storm Protection (BSP)

Power Parameters

• Connection

  • 1 removable 2-contact terminal block(s)

• Input Current

  • 0.21 A (max.)

• Input Voltage

  • 12/24/48 VDC

• Operating Voltage

  • 9.6 to 60 VDC

• Overload Current Protection

  • Supported

• Reverse Polarity Protection

  • Supported

Physical Characteristics

• Dimensions

  • 18 x 81 x 65 mm (0.71 x 3.19 x 2.56 in)

• Installation

  • DIN-rail mounting
    Wall mounting (with optional kit)

• Weight

  • 120 g (0.26 lb)

• Housing

  • Metal

Environmental Limits

• Ambient Relative Humidity

  • 5 to 95% (non-condensing)

• Operating Temperature

  • -10 to 60C (14 to 140F)

• Storage Temperature (package included)

  • -40 to 85C (-40 to 185F)

Standards and Certifications

• Safety

  • UL 61010-2-201
    EN 62368-1 (LVD)

• EMC

  • EN 55032/35
    EN 61000-6-2/-6-4

• EMI

  • CISPR, 32, FCC Part 15B Class A

• EMS

  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

• Shock

  • IEC 60068-2-27

• Vibration

  • IEC 60068-2-6

• Freefall

  • IEC 60068-2-32

MTBF

• Time

  • 3,404,784 hrs

• Standards

  • Telcordia (Bellcore), GB
