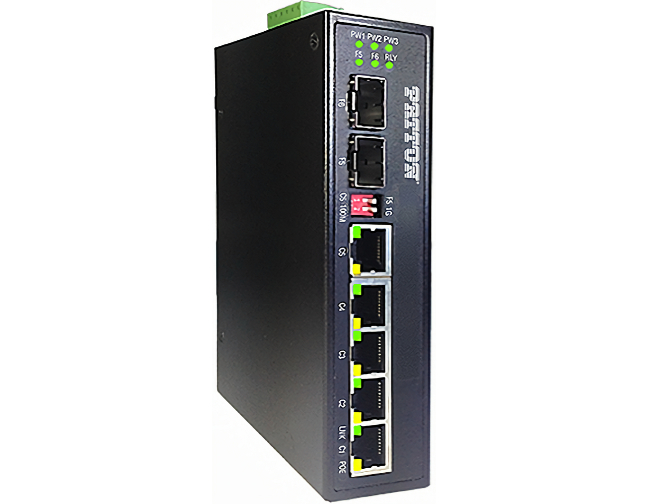

FP1005E/2SFP/DC – Unmanaged Industrial Gigabit Ethernet Switch; 4 x 10/100/1000 (RJ45); 1 x GigE SFP, 1 x SFP/TX Combo
by PATTON
|
|
|
|
FP1005E_2SFP_DC_SUMMARY.html
System Interface/Performance -
- Supports auto MDI/MDI-x function
- 6 ports include 4 10/100/1000Tx RJ45 ports, 1 100/1000 SFP cage, and 1 SFP/Tx combo SFP cage
- Store-and-forward switching architecture
- 12-Gbps backplane (switching fabric)
- 1K MAC address table
- 9K Jumbo frame supports
- 1M Packet buffer size
- ESD protection: 6,000 VDC support
Power Input -
- Redundant power input design: 12-56 VDC
- Built-in relay output for power failure detection
- Surge protection: 2,000 VDC support
Operating Temperature Range - EOT: -40 to 75°C
Case/Installation -
- IP30 rugged metal case design
- Installation in pollution degree to environment
- DIN-rail and wall mount support
|
|
|
FP1005E_2SFP_DC_DESCRIPTION.html
Patton's™ FP1005E-2SFP-DC - Unmanaged Industrial Gigabit Ethernet Switch supports industrial applications requiring high
bandwidth or high density connections, such as power/utilities, water/wastewater treatment, oil/gas/mining, process
control automation, security access control systems, and intelligent transportation systems.
The FP1005E is
housed in an sturdy IP30 rated DIN-rail enclosure with wall mount options.The physical layer interfaces include 5 RJ45
10/100/1000 Ethernet ports, 1 100/1000 SFP slot and 1 SFP/Tx combo slot that can be used for fiber trunk connections. To
ensure operation in harsh environments, the FP1005E provides additional EFT and ESD protection that prevents unregulated
voltage or harmful transients, and has an operating temperature rating of -40 to 75C (-40 to 167F).
FP1005E_2SFP_DC.html
| Ethernet Port |
5 RJ45 ports with 10/100/1000Tx auto MDI/MDI-x connection
|
| Fiber Port |
Wavelength: Refer to SFP+ modules at patton.com/SFP-OC
1 100/1000 SFP cage and 1 SFP/Tx combo cage
|
| Standards |
IEEE 802.3x, 3u, 3ab, 3az
|
| Switching Architecture |
Backplane (Switching Fabric): 12 Gbps
|
| Transfer Rate |
Up to 1.0 Gbps for Gigabit Ethernet port
|
| Jumbo Frame |
9 Kbytes
|
| MAC Table Size |
1K
|
| Packet Buffer Size |
1M
|
| Protocol |
CSMA/CD
|
| Free fall / Shock / Vibration |
IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
|
| Overload Current Protection |
Present
|
| Operating Temperature |
-40 to 75°C (-40 to 167°F)
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F)
|
| Operating Humidity |
5 to 95% (non-condensing)
|
| Input Voltage |
12-56 VDC, Redundant Input (with 1 removable 6-contact terminal block)
100-240 VAC adapter (optional)
|
| Power Consumption |
5.76 watts at 48 VDC full load
|
| Reverse Polarity Protection |
Yes
|
| Housing |
Metal, IP30 protection, DIN-Rail Mounting (wall mounting bracket is also included)
|
| Dimensions |
1.69W x 4.13D x 5.59H in. (43W x 105D x 142H mm)
|
| Weight |
Unit Weight: 2.5 lbs.
Shipping Weight: 3.0 lb
|
| Certifications |
FCC, CE, EN 55032/24
|
| EMI |
CISPR 32, FCC Part 15B Class A
|
| EMS |
IEC 61000-4-2 ESD: Contact: 6KV; Air: 8K
VIEC 61000-4-4 EFT: Power: 2KV; Signal: 2KV
IEC 61000-4-5 Surge: Power: 2KV; Signal: 2KV
|
|
|
