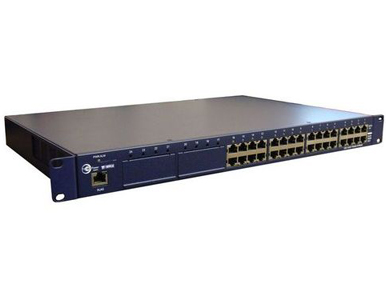

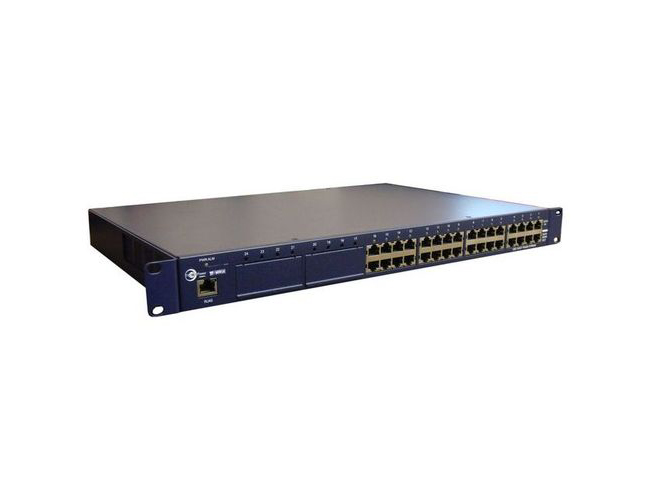

The TP-MS616 rack mount 16 port mid span POE power sources are used for
supplying POE and data to up to 16 devices multiple devices from a central
location such as an operations room.
The POE devices feature a separate data-in port coupled with a data out/POE
port. The POE function is fully IEEE802.3at/af compliant and supports Gigabit
Ethernet.
The included PC software allows for configuration of the individual ports and
for displaying port status through the RJ45 management port or network. Ports
can be enabled/disabled and configured for forced POE output (Passive POE) or
IEE802.3at/af detection.
POE DC Voltage (55V) is supplied on 4 pairs. Maximum power output per rack
mount unit is 576W. The individual outputs are overload and short circuit
protected.
The 1U rack mounting accommodates 19" racks with included brackets.
