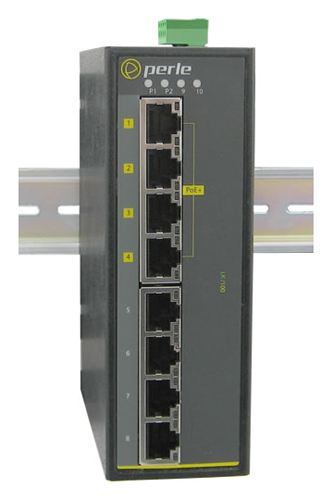

  • 8 x 10/100Base-TX RJ45 ports, 4 of which support PoE/PoE+ and 2 x 100Base-FX
  • 1310nm Multi-mode port with Duplex ST connectors [ up to 5km/3.1 miles ]
  • Hazardous Location and Industrial Control Equipment Certification
  • Corrosion resistant IP30 aluminum case
  • Redundant dual power input 24/48 VDC
  • Overload current and reverse polarity protection
  • Industrial operating temperature support up to -40 to 75C (-40 to 167F )



Perle Industrial-grade PoE Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications.

In addition, these PoE Switches are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, the IDS-108FPP have 4 ports that also provide up to 30 watts of power to Powered Devices (PDs) such aswireless access points, Voice over IP phones and IP cameras. Learn more about PoE.

The IDS-108FPP is an 8 to 10 port Industrial Ethernet Switch with Power over Ethernet providing advanced performance enabling real-time deterministic network operation. It requires no configuration and will operate instantly as soon as you power it up.

IDS-108FPP are rugged fan-less switches that are hardened to provide superior reliability in 0 to 60°C, or harsh extended operating temperatures from -40 to 75°C. They come in a variety of models with 8 copper ports, 8 copper ports plus 1 fiber port or 8 copper ports plus 2 fiber ports.

Perle has been designing industrial hardware for serial ModBus and Profinet to Ethernet conversion environments for over 35 years and have used this expertise to design the toughest Ethernet switches on the market. Don’t trust your critical communications to commercial switch products. Perle Industrial Ethernet switches give you proven assurance that your system will keep running for years to come.



IDS-108FPP Industrial PoE Switch Features

Rugged design for harsh environments
  • Corrosion resistant IP30 aluminum case
  • UL508A Industrial Control Equipment Safety certified
  • Hazardous locations - Class1/Div2, ATEX Class1/Zone2
Reliable operation
  • Fan-less, no moving parts
  • Dual power input. Connect to separate power sources for redundancy.
    • Reverse polarity protection
    • Overload current protection
  • Handles vibration and shock conditions found in industrial environments
PoE and PoE+  ( on 4 ports ) Up to 30 Watts per port driving up to four class 4 ( IEEE 802.3at Type 2 ) PDs
Input Voltage Booster Voltage boost technology supports 24V power sources ensuring that a full and proper PSE voltage is provided across all PoE ports
Real-time Ethernet performance
  • Fast wire-speed , store and forward switching, non-blocking architecture
  • Auto-sensing for speed and duplex
  • Auto-mdi/mdix-crossover works with straight and crossover cables
Power
Dual  Power Input Both inputs draw power simultaneously. If one power source fails, the other live source can, acting as a backup, supply enough power to meet the operational needs of the switch.
Flexible input voltage range : 24/48 VDC Nominal. ( 18 to 57 VDC)
Input Voltage Booster Voltage boost technology supports 24V industrial power sources ensuring that a full and proper PSE voltage is available across all PoE ports
Power Connector 4-Pin Removable Terminal Block.
Grounding screw on metal chassis
Maximum Current Consumption
@24 vDC
.29 Amps (No PoE PDs attached)
5.6 Amps (4 x PoE+)
Maximum Power Consumption
@24 vDC
7 Watts (No PoE PDs attached)
134 Watts (4 x 30 Watts PoE+)
Overload  Current Protection Reset-able fuse provides overload current protection
Reverse  polarity protection Protection is provided should inputs be reversed
Access Ports
RJ45 8 shielded RJ45 ports for 10/100Base-TX up to 100 meters ( 328 ft ). 4 of these ports are PoE PSE capable
Auto-negotiation
Auto-MDI/MDIX-crossover for use with either crossover over straight-through cable types
Ethernet isolation 1500 V
PoE 4 PoE/PoE+ ports
Up to 30 Watts per port ( @ switch RJ45 ) driving up to four class 4 ( IEEE 802.3at Type 2 ) PDs
Fiber port 1 or 2 fixed fiber port models
Duplex SC or ST connector
  • Multimode 50/125 or 62.5/125 micron fiber cable
  • Single mode 9/125 micron fiber cable
Simplex ( BIDI, single strand ) SC connector
  • Multimode 50/125 or 62.5/125 micron fiber cable
  • Single mode 9/125 micron fiber cable
PC and UPC type patch cords supported.
Fixed  Fiber Port Specs
Fiber1
Type
Transmit
(dBm)
Receive
(dBm)
Power
Budget
(dB)
Wavelength
(nm)
IEEE Core
Size
(um)
Modal
Bandwidth
(MHz
*Km)
Maximum
Operating
Distance
Min Max Min Max
MMF
(Duplex SC/ST)
-20.0 -12.0 -31.0 -14.0 11.0 1310 100Base-FX 50 800* 5 Km
3.1 mi
62.5 500* 4 Km
2.5 mi
62.5 200 2 Km
1.2 mi
MMF
(Simplex SC)
-15.0 0.0 -28.0 -8.0 13.0 1310 / 1550
1550 / 1310
100Base-BX-U
100Base-BX-D
62.5 200 2 Km
1.2 mi
SMF
(Duplex SC/ST)
-18.0 -7.0 -32.0 -3.0 14.0 1310 100Base-LX 9 ** 20 Km
12.4 mi
SMF
(Simplex SC)
-14.0 -8.0 -32.0 -3.0 18.0 1310 / 1550
1550 / 1310
100Base-BX-U
100Base-BX-D
9 ** 20 Km
12.4 mi
SMF
(Duplex SC/ST)
-5.0 -0.0 -34.0 -3.0 29.0 1310 100Base-EX 9 ** 40 Km
24.9 mi
SMF
(Simplex SC)
-8.0 -3.0 -33.0 -3.0 18.0 1310 / 1550
1550 / 1310
100Base-BX-U
100Base-BX-D
9 ** 40 Km
24.9 mi
SMF
(Duplex SC/ST)
-5.0 0.0 -34.0 -3.0 29.0 1550 100Base-ZX 9 ** 80 Km
49.7 mi
SMF
(Duplex SC/ST)
0.0 5.0 -35.0 -3.0 35.0 1550 100Base-ZX 9 ** 120 Km
74.6 mi

* 1db/km multimode fiber cable

** as per ITU-T G.652 SMF specifications

Switch Properties
Standards
  • IEEE 802.3 for 10Base-T
  • IEEE 802.3u for 100Base-TX and 100Base-FX
  • IEEE 802.3x for Flow Control
  • IEEE 802.3af Power Over Ethernet
  • IEEE 802.3at Power Over Ethernet
Processing Type Store and Forward, non-blocking architecture
MAC Address Table Size 8K
Packet Buffer Memory 1 Mbit
Indicators
P1 This green LED is turned on when power is applied to the power #1 input
P2 This green LED is turned on when power is applied to the power #2 input
RJ45 Ethernet These integrated colored LEDs indicate link, activity and speed for each port.
Fiber Link Fiber link LED indicates Link and Data Activity
Environmental Specifications
Operating Temperature Ranges Standard temperature models : 0° C to 60° C (32° F to 140° F).
Industrial extended temperature models : -40° C to 75° C ( -40 F to 167° F )
Storage Temperature Range Minimum range of -25° C to 70° C (-13° F to 158° F). -40 C to 85 C (-40 F to 185 F) for industrial extended temperature models
Operating Humidity Range 5% to 90% non-condensing
Storage Humidity Range 5% to 95% non-condensing
Operating Altitude Up to 3,048 meters (10,000 feet)
Chassis Aluminum with an IP30 ingress protection rating
Din Rail Mountable DIN Rail attachment included. Mounts to standard 35 mm DIN rail in accordance with DIN EN 60175.
Removable to accommodate optional Panel/Wall mount kit
Maximum Heat Output 24 BTU/Hr
MTBF 606,418 hours (without fiber module)
350,726 hours (with 1 fixed fiber module)
316,656 hours (with 2 fixed fiver modules)
MTBF Calculation model based on MIL-HDBK-217-FN2 @ 30 °C
Product Weight and Dimensions
Weight 0.37 Kg, 0.82 lbs
Dimensions 35.5 x 111 x 138 mm, 1.39 x 4.37 x 5.43 inches
Packaging
Shipping Weight 0.52 Kg, 1.15 lbs
Shipping Dimensions 170 x 260 x 70 mm, 6.69 x 10.24 x 2.76 inches
Contents Shipped Industrial Ethernet Switch with DIN Rail attachment
Terminal block
Installation guide
Standards and Certifications
Safety UL 60950-1
CSA C22.2 No. 60950-1
IEC 60950-1:2005+A1:2009 and
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
CE Mark
UL508 ( Industrial )
EMC Emissions FCC 47 Part 15 Class A
CISPR 22:2008/EN55022:2010 (Class A)
EN61000-6-4
EMC and Immunity CISPR 24:2010/EN 55024:2010
IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 4kV, Air Discharge +/- 8kV
IEC/EN 61000-4-3 (RS) : 10V/m
IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV
IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 0.5kV, Line/Earth +/- 0.5kV, Data Line line/earth +/- 1kV
IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V
IEC/EN 61000-4-8 : 30A/m
IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )
Industrial Safety UL508 (Safety standard for Industrial Control Equipment )
CSA C22.2 No. 142
Hazardous Locations
( Hazloc )
ANSI/ISA 12.12.01, Class I Division 2 Groups A-D ( formerly known as UL 1604 )
CSA C22.2 No. 213
ATEX Class I Zone 2, EN60079-0, 15
Laser Safety EN 60825-1:2007
Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.
Environmental Reach, RoHS and WEEE Compliant
Other ECCN: 5A991
HTSUS Number: 8517.62.0050
