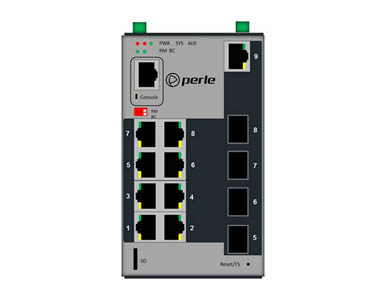

07017200 IDS-509CPP-XT - Industrial Managed Ethernet Switch

1000Base-T RJ-45 ports, 8 of which are a
by PERLE

07017200_SUMMARY

5 port 10/100/1000Base-T ( RJ45 ) ports and 1 100/1000Base-X SFP slot for Gigabit and Fast Ethernet devices
3 flexible dual purpose Combo ports: 100/1000Base-X SFP fiber or 10/100/1000Base-T ( RJ45 )
PRO feature set including advanced switching, encryption and IEEE 1588 PTP
PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at
IP Manageability, VLAN and resiliency management
Digital inputs for generation of alerts
Compact, corrosion resistant case attaches to a standard DIN Rail
Redundant dual power input 48 VDC
Out-of-band management via RJ45 or USB serial ports
Programmable Controller safety and Hazardous Location Certification
-40 C to 75 C (-40 F to 167 F). industrial operating temperature (XT Models)

Description
Specification
Datasheet

The IDS-509CPP is a 9 port Managed Ethernet Switch that can operate in industrial environments providing advanced performance and enabling real-time deterministic network operation. These PoE Switches are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, the IDS-509FPP have up to 8 ports that also provide up to 30 watts of power to Powered Devices (PDs) such as wireless access points, Voice over IP phones and IP cameras. Learn more about PoE.

Five 10/100/1000-Base-T Ethernet ports and one 100/1000Base-X SFP slot are available for networking Gigabit and Fast Ethernet devices. The other three ports can be configured to use either 100/1000Base-X SFP fiber or 10/100/1000Base-T. This flexibility allows for easy adaptation to network growth and changes.

The SFP slots allow for flexible network configurations using SFP transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs. In addition, they make utilizing fiber is easy in environments where high levels of electromagnetic interference ( EMI ) is a common phenomenon, like industrial plants. This interference can cause data corruption over copper-based Ethernet links. However, data transmitted over fiber optic cable is completely immune to this type of noise ensuring optimal data transmission across the plant floor..

Perle Industrial-grade Ethernet Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications.

Simple Plug and Play installation to get your Ethernet devices networked immediately is available with Perle’s Fast Setup feature. CCNA ( Cisco Certified Network Associate ) and CCNP ( Cisco Certified Network Professional ) trained engineers will appreciate the familiar Command Line Interface ( CLI ) via in-band Telnet or the out-band serial console port.

The PRO feature set in the IDS-509CPP is ideal for sophisticated environments where additional extensive securityand network integration functionality is required.

TACACS+ and RADIUS authentication, authorization and accounting (AAA) security services
SSH, SNMPv3, Telnet and HTTPS secure management sessions
IP address and IP Port number Management Access Lists (ACL)
Password Strength Checking
Protection of User Access Ports through IEEE 802.1x Authentication and Port Security
Advanced protocols to optimize the performance and intelligence of the network: LLDP, GVRP, Voice VLANs, MSTP, GMRP, IPv4 IGMP Snooping and IPv6 MLD Snooping

P-Ring, management VLAN, QoS, RMON, N:1 port mirroring and local alert log, are only a few of the comprehensive management functions supported in the IDS-409. In addition, the switch can be managed with an IPv6 address.

Hardened to provide superior reliability in -10 to 60°C, these are rugged fan-less switches. In addition, every component on every industrial (XT) model has been designed and tested to handle operating temperatures between-40 and 75C.

All Perle Industrial Ethernet Switches only use high-end components from the leading chip manufacturers to ensure the highest level of durability and reliability. In addition, all units have a corrosion resistance aluminum case and dual redundant power input with reverse polarity and overload protection.

Perle has been designing industrial hardware for over 35 years and have used this expertise to design the toughest Ethernet switches on the market that will keep your system running for years to come.

IDS-509CPP Industrial Managed DIN Rail Switch Features

Simple deployment	Zero-touch discovery using Dynamic Host Control Protocol (DHCP), Perle’s “Fast Setup” for first time installation, provides simple deployment in Ethernet environments
Security	802.1X, port security, Secure Shell (SSHv2); SNMPv3 provides encrypted administrator traffic during CLI and SNMP sessions; TACACS+ and RADIUS authentication facilitate centralized control and restrict unauthorized users.
Resiliency	STP, RSTP and MSTP protocols for fast recovery. Perle’s P-Ring protocol for fast convergence in ring topologies Link Standby is a link recovery feature for two links that provides a simple alternative to spanning tree protocols for link redundancy Buffered Real Time Clock backup
Manageability	Web Device Manager, Telnet/SSH, HTTPS access, SNMP and Perle’s PerleView NMS for centralized management Use an IPv4 or IPv6 address In-band management via RJ45 or USB serial port Removable MicroSD flash for configuration files and firmware backup and restoration Power over Ethernet allocation on a per-port basis
Rugged design for harsh environments	Corrosion resistant case Programmable Controller Safety certified Certified for hazardous locations Extended industrial temperature models
Reliable operation	Fan-less, no moving parts Dual power input. Connect to separate power sources for redundancy. Reverse polarity protection Overload current protection Handles vibration and shock conditions found in industrial environments
Real-time Ethernet performance	Fast wire-speed , store and forward switching Auto-sensing for speed and duplex Auto-mdi/mdix-crossover works with straight and crossover cables

Hardware Features & Technical Specifications: IDS-509CPP Industrial Managed DIN Rail Switch

Power
Dual Power Input	Both inputs draw power simultaneously. If one power source fails, the other live source can, acting as a backup, supply enough power to meet the operational needs of the switch. 54 VDC nominal 50-57 VDC ( PoE+ IEEE 802.3at type 2 ) 48 VDC nominal 44 to 57 VDC ( PoE IEEE 802.3af or IEEE 802.3at type 1 )
Power Connector	4-Pin Removable Terminal Block. Grounding screw on metal chassis
Overload Current Protection	Fused overload current protection
Reverse polarity protection	The positive and negative inputs can be reversed providing safe and simple power connectivity.
Access Ports
RJ45 / PoE Ports	5 shielded RJ45 ports for 10/100/1000Base-T up to 100 meters ( 328 ft ). Amount of available power to PoE ports is dependent upon sufficient voltage and power being supplied to the switch Auto-negotiation Auto-MDI/MDIX-crossover for use with either crossover over straight-through cable types Ethernet isolation 1500 V
Small Form Factor Pluggable ( SFP ) slot	1 SFP slot for SERDES 100/1000Base-X SFP modules supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs SFPs supporting the SGMII protocol are also supported ( example 1000Base-T )
Dual Purpose Combo ports	Three Combo ports are provided. All RJ45 ports are PoE+ capable A Dual-purpose Combo port is a single port with two interfaces, one for an RJ-45 cable and another for an SFP module. Only one interface can be active at a time. This provides flexibility in environments where the type of connection ( copper or fiber ) may change.
RJ45 Serial Console port	RJ45 DTE Optional rolled and straight thru RJ45 cables and DB adapters are available
USB Serial Console port	MicroUSB Type B female port for serial console management. Used as an alternative port for out of band management connections
Digital Inputs	Two Digital Inputs are provided that can be used for generation of alarms ( SNMP trap, energizing of on-board Alarm Relay,etc )
Removable Storage
MicroSD slot	A MicroSD flash card can be inserted for configuration files and firmware backup and restoration
Alarms
NC (Normally Closed ) or NO ( Normally Open ) dry contact. 1A @ 24V
Switch Properties
Standards	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z 1000BASE-X IEEE 802.3ab for 1000Base-T IEEE 802.3at Power Over Ethernet
Processing Type	Store and Forward
MAC Address Table Size	8K
VLAN ID range	1 to 4094
IGMP groups	1024
Packet Buffer Memory	1 Mbit
Indicators
Power	This LED is turned on when the appropriate level of voltage is applied to one or both of the power inputs
System	Indicates whether the switch O/S is operating normally
RJ45 Ethernet	These integrated colored LEDs indicate link, activity and speed for each port.
Fiber Link	Fiber link LED indicates Link and Data Activity
Alarm	The alarm LED ( Red ) will be turned on under alarm conditions
P-Ring Master LED	Status of the P-Ring Master
Backup Network Coupling	Indicates whether or not the “Backup Network Coupling” feature is enabled ( Redundant links connecting two P-Ring networks )
External Configuration DIP Switches
RM	When enabled, designates this switch as the P-Ring Master
BC	Activate Backup Coupling between 2 ring networks
Environmental Specifications
Operating Temperature Ranges	Standard temperature models ( Std ): -10° C to 60° C (14° F to 140° F). XT Industrial extended temperature models ( Ind ) : -40° C to 75° C ( -40 F to 167° F )
Storage Temperature Range	Minimum range of -25° C to 70° C (-13° F to 158° F). -40 C to 85 C (-40 F to 185 F) for industrial extended temperature models
Operating Humidity Range	5% to 90% non-condensing
Storage Humidity Range	5% to 95% non-condensing
Operating Altitude	Up to 3,048 meters (10,000 feet)
Chassis	Metal with an IP20 ingress protection rating
Din Rail Mountable	DIN Rail attachment included. Mounts to standard 35 mm DIN rail in accordance with DIN EN 60175. Removable to accommodate optional Panel/Wall mount kit
Product Weight and Dimensions
Weight	1.5 kg
Dimensions	75 x 130 x 121mm
Packaging
Shipping Weight	2.0 kg
Shipping Dimensions	170 x 260 x 70 mm
Standards and Certifications
Safety	UL 60950-1 IEC 60950-1:2005+A1:2009 and EN 60950-1:2006+A11:2009+A1:2010+A12:2011 CE Mark UL 61010-1 and UL 61010-2-201 ( Standard for Safety for Programmable Controllers )
Emissions	FCC 47 Part 15 Class A CISPR 22:2008/EN55022:2010 (Class A) CISPR 24:2010/EN 55024:2010
EMC and Immunity	CISPR 24:2010/EN 55024:2010 IEC/EN 61000-4-2 (ESD) IEC/EN 61000-4-3 (RS) IEC/EN 61000-4-4 (EFT) IEC/EN 61000-4-5 (Surge) IEC/EN 61000-4-6 (CS) IEC/EN 61000-4-8 (Magnetic Field) IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )
Industrial Safety	UL 61010-1 and UL 61010-2-201 ( Standard for Safety for Programmable Controllers ). Formerly known as UL508 (Safety standard for Industrial Control Equipment )
Hazardous Locations ( Hazloc )	ANSI/ISA 12.12.01, Class 1 Division 2 Groups A-D ( formerly known as UL 1604 ) * ATEX Class 1 Zone 2 *
Environmental	Reach, RoHS and WEEE Compliant
Other	ECCN: 5A992
	HTSUS Number: 8517.62.0050
	5 year Warranty
Contents Shipped	Industrial Ethernet Switch with DIN Rail attachment Terminal block Installation guide
