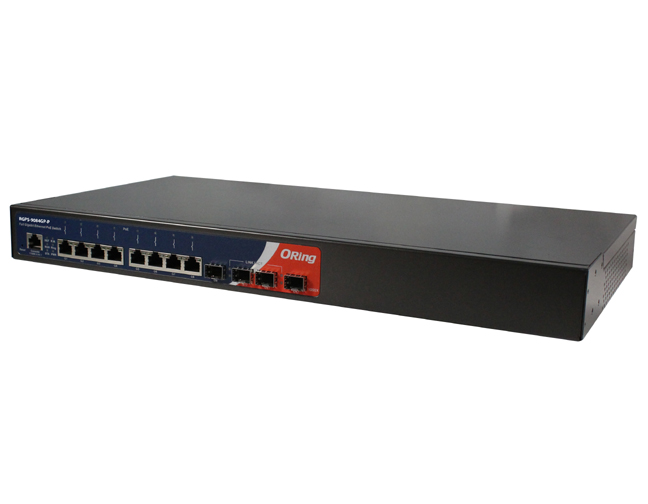

ORing RGPS-9084GP-P-US - Rack-mount 8 x PoE+ 10/100/1000TX (RJ-45) + 4x 1000 (SFP) with 300watts power supply US type power cabl by ORing Industrial Networking

ORing RGPS-9084GP-P-US - Rack-mount 8 x PoE+ 10/100/1000TX (RJ-45) + 4x 1000 (SFP) with 300watts power supply US type power cabl
by ORing Industrial Networking
Write a review Write a review
RGPS-9084GP-P-US
  • Supports O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet
    • Redundancy
  • Open-Ring support the other vendor’s ring technology in open architecture
  • O-Chain allow multiple redundant network rings
  • Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
  • Supports IEEE 802.3at compliant PoE 30Watts per port
  • Supports PoE scheduled configuration and PoE alive check function
  • Support IEEE 1588v2 clock Synchronization
  • Supports IPV6 new internet protocol version
  • Supports Modbus TCP protocol
  • Provided HTTPS/SSH protocol to enhance network security
  • Support IEEE 802.3az Energy-Efficient Ethernet technology
  • Supports SMTP client and NTP server protocol
  • Supports IP-based bandwidth management
  • Supports application-based QoS management
  • Supports Device Binding security function



RGPS-9084GP-P is managed redundant ring PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. ports and 4x100/1000Base-X SFP ports. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) 、Open-Ring 、O-Chain、Fast Recovery、MRP and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.

RGPS-9084GP-P also support Power over Ethernet, a system to transmit electrical power up to 30 watts (-40 ~ 60°C provided total 240watts max., and 60 to 75°C provided total 120watts max.), along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each RGPS-9084GP-P switch has 8x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE connection. And support wide operating temperature from -40 °C to 75 °C. RGPS-9084GP-P can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choices and highly-managed Ethernet application.

Physical Ports
10/100/1000Base-T(X) Ports in RJ45 With P.S.E. 8 (-40 ~ 60°C : provided total 240watts maximum, 60 ~ 75°C : provided total 120watts maximum)
100/1000Base-X SFP Port 4
Technology
Ethernet Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
IEEE 802.1D for STP (Spanning Tree Protocol)
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
IEEE 802.3at PoE specification
Packet Buffer 4 Mbits
MAC Table 8192 MAC addresses
Processing Store-and-Forward
Priority Queues 4
Switch Properties Switching latency: 7 us
Switching bandwidth: 24Gbps
Max. Number of Available VLANs: 4095
VLAN ID Range : VID 1 to 4094
IGMP multicast groups: 128 for each VLAN
Port rate limiting: User Define
Security Features Device Binding security feature
Enable/disable ports, MAC based port security
Port based network access control (802.1x)
VLAN (802.1Q ) to segregate and secure network traffic
Radius centralized password management
SNMPv3 encrypted authentication and access security
Https / SSH enhance network security
Jumbo frame Up to 9K Bytes
Software Features STP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging
IGMP Snooping
IP-based bandwidth management
Application-based QoS management
DOS/DDOS auto prevention
Port configuration, status, statistics, monitoring, security
DHCP Server/Client/Relay
SMTP Client
Modbus TCP
NTP server
Network Redundancy O-Ring
Open-Ring
O-Chain
Fast Recovery
MRP
MSTP (RSTP/STP compatible)
RS-232 Serial Console Port RS-232 in RJ45 connector with console cable. 115200bps, 8, N, 1 (support backup unit DBU-01)
LED Indicators
Power Indicator  Green : power indicator
Ring Master Indicator (R.M.) Green : Indicate system operated in O-Ring Master mode
O-Ring Indicator (Ring) Green : Indicate system operated in O-Ring mode. Blinking to indicate Ring is broken.
PoE indicator Blue : PoE LED x 8
10/100/1000Base-T(X) RJ45 port indicator Green for port Link/Act.
Dual color LED for speed indicator ~ Green (1000Mbps) / Amber (100Mbps) / Off-light (10Mbps)
100/1000Base-X SFP port indicator Green for port Link/Act.
Power
Input power AC 100~240V/AC, 50-60Hz
PoE Output Power 260Watts (PoE output included)
Overload current protection Present
Physical Characteristic
Enclosure 19 inches rack mountable
Dimension (W x D x H) 443.7(W) x 230(D) x 44(H) mm
Weight (g) 3,730 g
Environmental
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 75°C (-40 to 167°F)
Operating Humidity 5% to 95% Non-condensing
Regulatory approvals
EMI FCC Part 15, CISPR (EN55022) class A
EMS EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-31
Vibration IEC60068-2-6
Warranty 5 years
