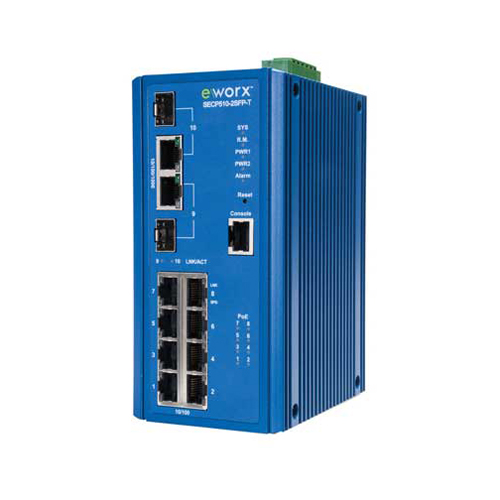

Advantech SECP510-2SFP-T - Discontinued - ESW, MANAGED, (8) POE+ GIGABIT, (2) GIG OR SFP, WT
by Advantech
|
|
|
|
** Replacement model: EKI-7710E-2CPI-AE **
|
|
|
The SECP510-2SFP-T is a fully managed Ethernet switch with industrial, ruggedized features designed to work in harsh environment applications. This switch offers all the features expected in a managed switch such as VLAN, IGMP Snooping, Network Redundancy, Link Aggregation, SNMP V1,V2c,V3, Web and Telnet support. Comprehensive network security features such as SSH, HTTPS/SSL, TLS, TTLS, PEAP and Radius are also offered.
Embedded into each switch is the industry leading eWorx IXM™ cross management technology. IXM allows the installer to auto synchronize firmware updates and push configuration settings to either individual or groups of switches. IXM provides maintenance and provisioning functionality to both the SE500 and SE300 family switches without the need of extra software or trained personal. IXM™ speeds up switch deployment and ensures network stability.
The eWorx SE500 series switches feature a powerful suite of diagnostic, monitoring and network performance capabilities: Cable diagnostics, IPv4/IPv6 ping, fiber SFP monitoring (DDMI), port utilization, traffic statistics, QoS and rate limiting - all available from the Web GUI. These advanced features offer quick and easy troubleshooting.
COMMUNICATIONS |
Standards |
IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z, 802.1p, 802.3az |
LAN |
10/100 Base-T(X), Optional 100Base-FX,
1000Base-SX/LX/LHX/XD/ZX/EZX |
Transmission Distance |
Ethernet: 100m (4-wire Cat.5e, Cat.6 RJ-45 cable suggested for GB port)
SFP: 110km (depends on SFP) |
Transmission Speed |
Ethernet: 10/100Mbps Auto-Negotiation
Gigabit Copper: 10/100/1000 Mbps, Auto-Negotiation
Gigabit Fiber: Up to 1000Mbps |
INTERFACE |
Connectors |
8 x RJ45 + 2 x (RJ45/SFP) combo ports
1 x RS-232 Console port (RJ45 connector)
1 x Reset bottom
6-pin removable screw terminal (power & relay) |
Ethernet |
Auto Sensing, 10/100/1000BaseTX, Duplex and MDIX |
LED Indicators |
PWR1, PWR2, SYS, Alarm and R.M.
10/100 T(X): Link/Activity, Speed
Gigabit Copper: Link/Activity, Speed
SFP: Link/Activity |
SWITCH PROPERTIES |
MAC Table Size |
8K |
Packet Buffer Size |
4.1M bit |
Switching Capacity |
5.6 Gbps |
Jumbo Frame |
9216 bytes |
Priority Queues |
8 |
Max. Number of Available VLANs |
256 |
VLAN ID Range |
VID 1 to 4094 |
IGMP Groups |
256 |
POWER |
Power Consumption |
12.1W @ 48VDC (System) |
Power Input |
12-48 VDC (8.4~52.8 VDC) redundant dual inputs |
Fault Output |
1 Relay Output |
Reverse Polarity Protection |
Present |
Overload Current |
Present |
PHYSICAL |
Dimensions (WxHxD) |
74 x 152 x 105 mm (2.91 x 5.98 x 4.13 inches) |
Enclosure |
IP30 |
Weight |
Net: 1.3 kg. Gross: 1.8 kg |
Enclosure |
Metal Shell |
Mounting |
DIN-Rail, Wall |
ENVIRONMENT |
Operating Temperature |
-40 - 75°C (-40 - 167°F) |
Storage Temperature |
-40 - 85°C (-40 - 185°F) |
Operating Humidity |
10 - 95% (non-condensing) |
Storage Humidity |
10 - 95% (non-condensing) |
MTBF |
858,835 hours |
CERTIFICATIONS |
Safety |
UL508 |
Traffic Control |
NEMA TS2 |
Rail Signal Control |
EN50121-4 |
EMI |
FCC Part 15 Subpart B Class A, EN 55011/55022, Class A |
EMS |
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3)
EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3)
EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
Shock |
IEC 60068-2-27 |
Freefall |
IEC 60068-2-32 |
Vibration |
IEC 60068-2-6 |
SOFTWARE |
Management |
Web interface, Serial interface (Console), WebAccess NMS™, Multiple user accounts, LLDP, SNMP v1/v2c/v3, Traps, SMTP, RMON, SNTP, Standard MIB, Private MIB |
Configuration |
HTTP/TFTP, Command line interface (CLI), IPv4/IPv6, TELNET, DHCP server/ client, DHCP option 66/67/82, Flow control, Ingress/Egress Rate limit, Jumbo frame |
Security |
802.1x, IP Security (Trusted Host), DoS prevention, HTTPS/ SSL, SSH, PEAP, RADIUS, Multiple account setting, Storm control, Port-IP Binding, SNMPv3 (Encryption) |
Redundancy |
X-Ring™ (Self-Recovery time < 20 ms), STP/RSTP/MSTP, LACP (Link Aggregation Control Protocol) |
Monitoring |
Port Statistics (Speed/Status), Link Up/Down counter, Error Packet counter, Loop detection |
Filter |
Multicast (IGMP Snooping/Querier), Unknown multicast filtering, 802.1Q VLAN, Port-based VLAN, GVRP, GARP, Q in Q, QoS (IEEE 802.1p) with 8 classes and TOS/DiffServ, Flow control |
Industrial Profiles |
Modbus/TCP |
Diagnostics |
Cable Diagnostic, IPv4/IPv6 Ping Test, Syslog, Port Mirror, DDM (Digital-Diagnostic-Monitoring), Port Mirroring 1:1 and N:1 |
Enhanced Provisioning |
IXM™ Cross management platform for fast deployment, Configuration backup manager, Import/ Export configuration files, firmware upgrades. |
Miscellaneous |
Remote reboot/reset device, Dual Image, Embedded watchdog timer, Multiple account setting (Admin/User) |
|
|
|
|
