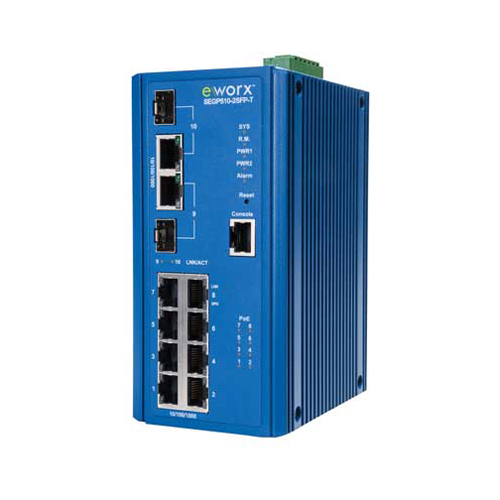

Advantech SEGP510-2SFP-T - Discontinued- 8-port GbE with (PoE/PoE+) + 2 GbE Combo (SFP or RJ45) Full Gigabit Managed PoE Etherne
by Advantech
|
|
|
|
- 8-port 10/100/1000 Mbps + 2-port Gigabit Combo (RJ45 or SFP) Uplink
- Full suite of Layer 2 functionality and advanced diagnostic tools
- IEEE802.3af/at PoE/PoE+ standard compliant, up to 240W as total PoE power budget (See Hardware Specifications/PoE-Power Over Ethernet for more information)
- Smart PoE Management, allowing to reboot PD (Powered Device) device remotely.
- Meets IEEE 802.3az Standard for low energy consumption
- Jumbo Frame support, up to 9,216 bytes
- IXM™ function enables the cross management for fast deployment
- X-Ring™ function offers self-healing recovery time less than 20 ms
- Redundant Power Inputs
- Wide Temperature Range -40 to 75 °C
- EMS Level 3 Radiated/Conducted noise protection
- UL508 (Industrial Control Panel), NEMA TS2 (Traffic Control), EN50121-4 (Rail Signal Control)
|
|
|
The SEGP500 series SEGP510-2SFP-T is a fully managed PoE+ Gigabit Ethernet switch with industrial, ruggedized features designed to work in harsh environment applications. This switch offers all the features expected in a managed switch such as VLAN, IGMP Snooping, Network Redundancy, Link Aggregation, SNMP V1,V2c,V3, Web and Telnet support. Smart PoE Management features allow advanced PoE settings and monitoring. Comprehensive network security features such as SSH, HTTPS/SSL, TLS, TTLS, PEAP and Radius are also offered.
The SEGP500 series SEGP510-2SFP-T support Power over Ethernet, simplifying deployments with PTZ cameras, wireless access points (APs), and other standards-compliant powered devices. The products comply with the 802.3af/at PoE+ standards, supporting up to 30W on each PoE port, not to exceed the switches' specific power budget. Using the management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.
The SEGP500 series SEGP510-2SFP-T features a powerful suite of diagnostic, monitoring, network performance capabilities and industry leading eWorx IXM™ cross management technology: Cable diagnostics, IPv4/IPv6 PING, fiber SFP monitoring (DDMI), port utilization, traffic statistics, QoS and rate limiting - all available from the Web GUI. The unique management feature, IXM™, allows the installer to auto synchronize firmware updates and push configuration settings to either individual or groups of switches.
MODEL# |
DESCRIPTION |
OPERATING
TEMPERATURE |
10/
100/
1000
MBPS |
MAXIMUM
PER PORT |
100/
1000
BASE-SFP |
COMBO PORT,
10/100/000Base-T(X) OR 100/1000BASE-SFP |
CONNECTOR TYPE |
POWER INPUT |
SEGP510-2SFP-T |
8-port 10/100/1000 Mbps + 2 GbE Combo Full L2 PoE+ Managed Ethernet Switch, 120W PoE Budget (Note: 4 ports PoE+ max.) |
-40 - 75°C |
8 |
30W |
- |
2 |
LC (SFP) |
24-48 V DC |
SEGP512-4SFP-T |
8-port 10/100/1000 Mbps + 4 GbE SFP Full L2 PoE+ Managed Ethernet Switch, 240W PoE Budget |
-40 - 75°C |
8 |
30W |
4 |
- |
LC (SFP) |
48 V DC |
COMMUNICATION |
Standards |
IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z, 802.1p, 802.3az, 802.1w, 802.1s, 802.1Q, 802.1X, 802.1ad, 802.3af, 802.3at |
LAN |
10/100/1000Base-T(X), Optional 100Base-FX,
1000Base-SX/LX/LHX/XD/ZX/EZX |
Transmission Distance |
Ethernet: 100m (4-wire Cat.5e, Cat.6 RJ-45 cable suggested for GB port) SFP: 110km (depends on SFP) |
Transmission Speed |
Ethernet: 10/100 /1000 Mbps Auto-Negotiation Gigabit Copper: 10/100/1000Mbps, Auto-Negotiation Gigabit Fiber: Up to 1000Mbps |
INTERFACE |
Connectors |
8 x RJ45 + 2 x RJ45/SFP combo ports - SEGP510-2SFP-T
8 x RJ45 + 4 x SFP ports - SEGP512-4SFP-T
1 x RS-232 Console port (RJ45 connector)
1 x Reset bottom
6-pin removable screw terminal (power & relay) |
Ethernet |
Auto Sensing, 10/100BaseTX, 10/100/1000BaseTX, Duplex and MDIX |
LED Indicators |
PWR1, PWR2, SYS, Alarm and R.M.
10/100 T(X): Link/Activity, Speed Gigabit Copper: Link/Activity, Speed SFP: Link/ Activity |
Hardware Properties |
POWER |
Power Consumption |
Max. 132W (PoE on), 12.1W (PoE off) - SEGP510-2SFP-T
Max. 252.1W (PoE on), 12.1W (PoE off) - SEGP512-2SFP-T |
Power Input |
24~48 VDC (16.8~57.6 VDC) dual inputs -SEGP510-2SFP-T
48 VDC (46~57 VDC) dual inputs - SEGP512-2SFP-T |
Fault Output |
1 Relay Output |
Reverse Polarity Protection |
Present |
Overload Current |
Present |
POE (POWER OVER ETHERNET) |
PoE Standard |
IEEE802.3af/at (Alternative A) |
PoE Pins |
With data pairs, 1, 2 and 3, 6 |
PoE Power Budget |
Max. 120W - SEGP510-2SFP-T
Max. 240W - SEGP512-2SFP-T
Max. 30W - each port |
PHYSICAL |
Dimensions
(WxHxD) |
74 x 152 x 105 mm (2.91 x 5.98 x 4.13 inches) |
Protection Class |
IP30 enclosure |
Weight |
Net: 1.3 kg, Gross: 1.8 kg |
Enclosure |
Metal Shell |
Mounting |
DIN Rail, Wall |
ENVIRONMENT |
Operating Temperature |
-40 to +75°C (-40 to +167°F) |
Storage Temperature |
-40 to +85°C (-40 to +185°F) |
Operating Humidity |
10 to 95% (non-condensing) |
Storage Humidity |
10 to 95% (non-condensing) |
MTBF |
858,835 hours |
CERTIFICATIONS |
Safety |
UL508 |
Traffic Contro |
NEMA TS2 |
Rail Signal Control |
EN50121-4 |
EMI |
FCC Part 15 Subpart B Class A, EN 55011/55022, Class A |
EMS |
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3)
EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3)
EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
Shock |
IEC 60068-2-27 |
Freefall |
IEC 60068-2-32 |
Vibration |
IEC 60068-2-6 |
Software Properties |
SWITCH PROPERTIES |
MAC Table Size |
8k |
Packet Buffer Size |
4.1 M bit |
Switching Technique |
20 Gbps - #SECP510-2SFP-T
32 Gbps - #SECP512-4SFP-T |
Packet Buffer Size |
9,216 bytes |
Priority Queues |
8 |
Maximum Number of Available VLANs |
256 |
VLAN ID Range |
VID 1 to 4094 |
IGMP Groups |
256 |
SOFTWARE |
Management |
Web interface, Serial interface (Console), WebAccess NMS™, Multiple user accounts, LLDP, SNMP v1/v2c/v3, Traps, SMTP, RMON, SNTP, Standard MIB, Private MIB |
Configuration |
HTTP/TFTP, Command line interface (CLI), IPv4/IPv6, TELNET, DHCP server/ client, DHCP option 66/67/82, Flow control, Ingress/ Egress Rate limit, Jumbo frame |
Security |
802.1x, IP Security (Trusted Host), DoS prevention, HTTPS/SSL, SSH, PEAP, RADIUS, Multiple account setting, Storm control, Port-IP Binding, SNMPv3 (Encryption) |
Redundancy |
X-Ring™ (Self-Recovery time < 20 ms), STP/RSTP/MSTP, LACP (Link Aggregation Control Protocol) |
Monitoring |
Port statistics & utilization, LLDP/IGMP/MLD statics, Loop detection, Power status |
Filter |
Multicast (IGMP Snooping/Querier), Unknown multicast filtering, 802.1Q VLAN, Port-based VLAN, GVRP, GARP, Q in Q, QoS (IEEE 802.1p) with 8 classes and TOS/DiffServ, Flow control |
Industrial Profiles |
Modbus/TCP |
Diagnostics |
Cable Diagnostic, IPv4/IPv6 Ping Test, Syslog, Port Mirror, DDM (Digital-Diagnostic-Monitoring), Port Mirroring 1:1 and N:1 |
Enhanced Provisioning |
IXM™ Cross management platform for fast deployment, Configuration backup manager, Import/ Export configuration files, firmware upgrades. |
Miscellaneous |
Remote reboot/reset device, Dual Image, Embedded watchdog timer, Multiple account setting (Admin/User) |
|
|
