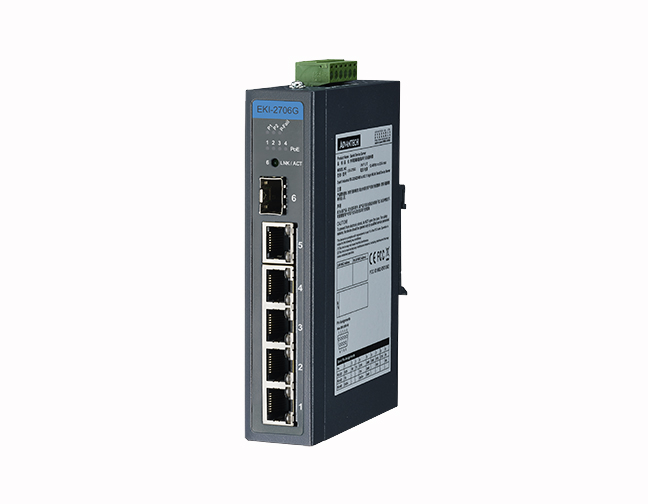

Advantech EKI-2706G-1GFPI-AE - 5GE+1G SFP Unmanaged Ind. PoE Switch W/T
by Advantech
|
|
|
|
- Supports 10/100/1000 Mbps Auto Negotiation (EKI-2706G)
- Supports jumbo frame transmission up to 9 kbytes
- DIN-rail with IP30 metal mechanism
- Redundant 48 VDC power input
- Provides broadcast storm protection
- Ports:
- 5 x 10/100/1000Mbps(RJ-45)
- 1 x 100/1000Mbps(SFP)
| Mfg SKU # : | EKI-2706G-1GFPI-AE |
|
|
|
EKI-2706G-1GFPI-AE of The EKI-2706 series supports 48VDC redundant power input and is secured with a double protection mechanism: Power Polarity Reverse Protection and an Overload Current Fuse. The EKI-2706 series supports up to 4-port IEEE 802.3 af/at PoE /PoE+ ports. Each port of EKI-2706 has two LED’s to show the link status, transmission speed, and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify, administrators. Engineers can simply verify the hardware status by checking the LED to make troubleshooting quick and easy. EKI-2706 comes with a compact metal housing rated at IP30 to protect against dusty industrial environments.
Communications |
Standard IEEE |
IEEE 802.3, 802.3u, 802.3x, 802.1ab, 802.1z |
LAN |
EKI-2706E-1GFP/I :
- 4 x 10/100Mbps(RJ-45)
- 1 x 10/100/1000Mbps(RJ-45)
- 1 x 100/1000Mbps(SFP)
EKI-2706G-1GFP/I :
- 5 x 10/100/1000Mbps(RJ-45)
- 1 x 100/1000Mbps(SFP)
|
Transmission Distance |
Ethernet: Up to 100 m (4-wire Cat.5e, C |
Transmission Speed |
Ethernet: 10/100 Mbps Auto-Negotiation
Gigabit Copper: 10/100/1000 Mbps, Auto-Negotiation
Gigabit Fiber: Up to 1000 Mbps |
Interface |
Connectors |
5 x RJ-45 + 1 x SFP
6-pin removable screw terminal (power & relay) |
LED Indicators |
P1, P2, P-Fail
Link / Speed / Activity |
Power |
Power Consumption |
Max. 2 W |
Power Input |
48 VDC |
Fault Output |
1 Relay Output, 1 A @ 24 VDC |
Power Budget |
90W |
Mechanism |
Enclosure |
IP30, metal shell with solid mounting kits |
Dimensions (WxHxD) |
30 x 140 x 95 mm (1.18” x 5.51” x 3.74”) |
Mounting |
DIN-rail, Wall |
Protection |
Power Reverse |
Present |
Overload current |
Present |
Environment |
Operating Temperature |
EKI-2706E-1GFP & EKI-2706G-1G1FP : -10 ~ 60 °C (14 ~ 140 °F)
EKI-2706E-1GFPI & EKI-2706G-1G1FPI : -40 ~ 75 °C (-40 ~ 167 °F) |
Storage Temperature |
-40 ~ 85 °C (-40 ~ 185 °F) |
Operating Humidity |
10 ~ 95% (non-condensing) |
Storage Humidity |
10 ~ 95% (non-condensing) |
MTBF |
1,697,086 hours |
Certification |
Safety |
UL 60950 |
EMI |
CE, FCC Class A |
EMC |
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8 |
Shock |
IEC 60068-2-27 |
Freefall |
IEC 60068-2-32 |
Vibration |
IEC 60068-2-6 |
|
|
|
|
