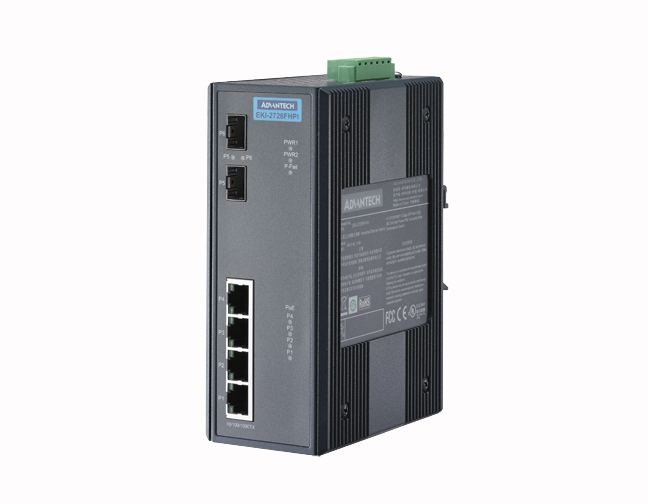

EKI-2726FHPI-AE - 4+2 Giga w/4 802.3at PoE Industrial Switch

Advantech EKI-2726FHPI-AE - 4+2 Giga w/4 802.3at PoE Industrial Switch
by Advantech

All Gigabit Ethernet ports for 4 x copper and 2 x SFP
Back-plane (switching fabric): 12Gbps
Embedded 4 ports PoE inject function
Provides power output of 30 W @ 55 V
Redundant power design
IP30-rated chassis design
Supports operating temperatures of -40 ~ 75°C

Mfg SKU # :

EKI-2726FHPI-AE

Our Price :

$713.37

Description
Specification
Datasheet

The EKI-2726-FHPI switch has 4 x 10/100/1000BASE-T Ethernet ports with PoE+ functionality and 2 x SFP sockets. It has been designed to work within a wide operating temperature range. This cost-effective solution meets the high reliability requirements and technical specifications for industrial applications. The equipment also meets the IEEE 802.3 at standard and can provide 30 W output per PoE port.

Communications
Standard IEEE	IEEE 802.3, 802.3u, 802.3x, 802.3af/at, 802.3ab, 802.3z
LAN	10/100/1000BASE-T 1000BASE-SX/LX/LHX/XD/ZX/EZX
Transmission Distance	Ethernet: Up to 100 m SFP: Up to 110 km (depends on SFP)
Transmission Speed	Copper: 10/100/1000 Mbps, Auto-Negotiation Gigabit Fiber: Up to 1000 Mbps
Interface
Connectors	10/100/1000T(X): RJ-45 x 4 SFP: Gigabit Base x 2
LED Indicators	System: P1, P2, P-Fail, Per port: Link/Activity, Speed, PoE (1 to 4 ports)
Power
Power Consumption	5.5 watts @ 48VDC (Ethernet only)
Power Input	48 VDC (44VDC to 57 VDC ), redundant dual inputs
Power Output	1 Relay Output
Mechanism
Enclosure	IP30, metal shell with solid mounting kits
Dimensions (WxHxD)	59.6 x 152 x 105 mm (2.35" x 5.98" x 4.13")
Mounting	DIN-rail, Wall
Protection
Power Reverse	Present
Overload current	Present
Environment
Operating Temperature	-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature	-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity	5 ~ 95% (non-condensing)
MTBF	339,740 hours
Certification
Safety	UL/cUL508 Class I, Division 2, Groups A, B, C and D
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMC	EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
