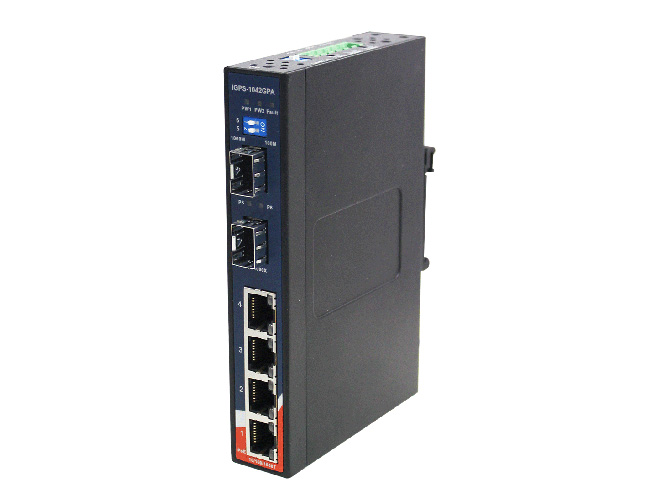

IGPS-1042GPA - Slim Type 4 x 10/100/1000TX (RJ-45) PoE+, + 2 x 100/1000Base-X SFP slot by ORing Industrial Networking

IGPS-1042GPA - Slim Type 4 x 10/100/1000TX (RJ-45) PoE+, + 2 x 100/1000Base-X SFP slot
by ORing Industrial Networking

Write a review Write a review
  • Provide 4x10/100/1000Base-T(X) PoE (P.S.E.) ports
  • Support P.S.E. based on IEEE 802.3at standard up to 30 Watts per port
  • Supports Jumbo frame up to 9KBytes
  • SFP port support 100Base-FX and 1000Base-X speed
  • Support auto-negotiation and auto-MDI/MDI-X
  • Support store and forward transmission
  • Supports flow control
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled
Mfg SKU # : IGPS-1042GPA
Our Price : $474.00
Stock : 5
Quantity :
IGPS-1042GPA is an slim type unmanaged PoE Ethernet switch with P.S.E. function. IGPS-1042GPA supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IGPS-1042GPA has 4x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports, and 2x100/1000Base-X SFP port. The SFP port optical network speed can be set by changing the settings of the DIP-Switch below. IGPS-1042GPA supports wide range 50~57VDC power inputs and generates 50VDC P.S.E. power output per port. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. The wide operating temperature range from -40oC to 70oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for PoE Ethernet application.
Physical Ports

10/100/1000Base-T(X) Ports in RJ45 with P.S.E. Auto MDI/MDIX

4

100/1000Base-X SFP port

2
Technology
Ethernet Standards

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow control
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)

MAC Table 1K MAC addressessses
Processing Store-and-Forward
LED Indicators

Power indicator

Green : Power LED x 2

Fault Indicator

Amber : Indicates PWR1 or PWR2 failure occurred

10/100/1000Base-T(X) RJ45 port indicator and PoE indicator (P1 ~ P4)

Green for port Link/Act.
Green for PoE power injected

100/1000Base-X SFP port indicator (P5 ~ P6)

Green for port Link/Act.

SFP Speed DIP-Switch



DIP-Switch 1/2

DIP-Switch 1 (ON) and DIP-Switch 2 (ON) : SFP speed setting to 100Mbps
DIP-Switch 1 (OFF) and DIP-Switch 2 (OFF) : SFP speed setting to 1000Mbps

Relay Output DIP-Switch



DIP-Switch 1

Power-1 failed warning : (ON) enable, (OFF) disable

DIP-Switch 2

Power-2 failed warning : (ON) enable, (OFF) disable

Fault contact
Relay

Relay output to carry capacity of 1A at 24VDC

Power
Redundant Input Power

Dual DC inputs. 50~57VDC on 6-pin terminal block.

Power consumption (Typ.)

6.3 Watts

Overload current protection

Present

Reverse polarity protection

Not Present

Physical Characteristics


Enclosure IP-30
Dimensions (W x D x H)

26.1 (W) x 94.9 (D) x 144.3(H) mm

Weight (g)

410 g

Environmental
Storage Temperature

-40 to 85°C (-40 to 185°F)

Operating Temperature

-40 to 70°C (-40 to 158°F)

Operating Humidity

5% to 95% Non-condensing

Regulatory Approvals
EMI

FCC Part 15, CISPR (EN55022) class A

EMS

EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8,EN61000-4-11

Shock

IEC60068-2-27

Free Fall

IEC60068-2-32

Vibration

IEC60068-2-6

Safety

EN60950-1
