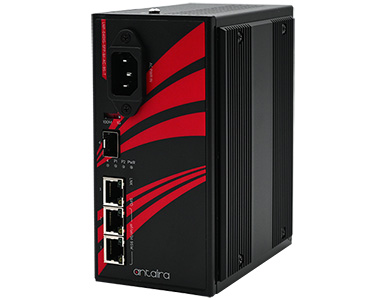

Antaira LNP-0401G-SFP-bt-AC-95-T - 4-Port Industrial Gigabit IEEE 802.3bt PoE++ AC Powered Unmanaged Ethernet Switch, 2*10/100/1
by ANTAIRA
|
|
|
|
- 3*10/100/1000BASE-TX RJ45 with 2*IEEE 802.3bt PoE++ (PSE: 95W/Port)
- 1*100/1000 SFP
- Built-in AC/DC Power Supply
- DIN-Rail and Wall Mountable
- Operating Temperature: -40°C to 75°C
- 5-Year Warranty
|
|
|
Antaira LNP-0401G-SFP-bt-AC-95-T

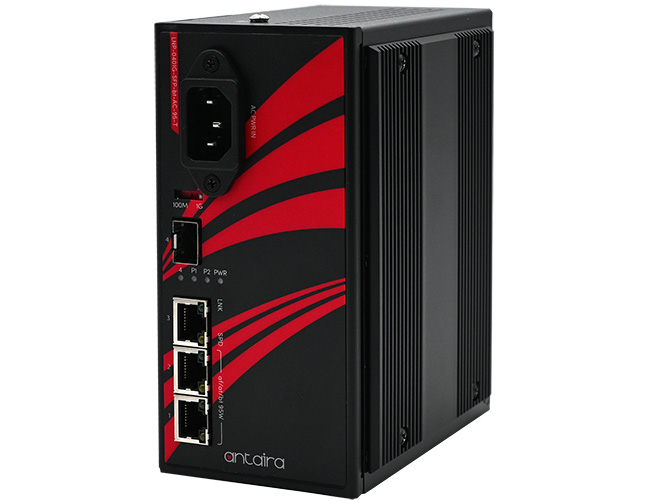

Antaira Technologies’ LNP-0401G-SFP-bt-AC-95-T is a 4-port industrial Gigabit PoE++ unmanaged Ethernet switch designed for reliable high-power network connectivity in harsh environments. The switch features three 10/100/1000TX RJ45 ports, including two IEEE 802.3bt PoE++ ports delivering up to 95W per port, plus one 100/1000 SFP slot for flexible fiber uplink connectivity. With a built-in AC/DC power supply, rugged IP30 aluminum housing, DIN-rail or wall-mount installation, and an extended operating temperature range of -40°C to 75°C, the LNP-0401G-SFP-bt-AC-95-T is well suited for industrial automation, security, transportation, and outdoor network applications requiring dependable Gigabit performance and high-power PoE delivery.
Specifications
- Total ports: 4
- RJ45 GE: 3
- 95W PoE++: 2
- 1G SFP: 1
- PoE budget: 180W
- Power consumption: 11W at 110 VAC
- Power input:
- Operating temp: -40~75ºC
- Housing: Aluminum, IP30
- Mounting: DIN-Rail, Wall
- Power Connector: IEC C14 Socket
- PoE LED indicator: yes
|
|
|
|
