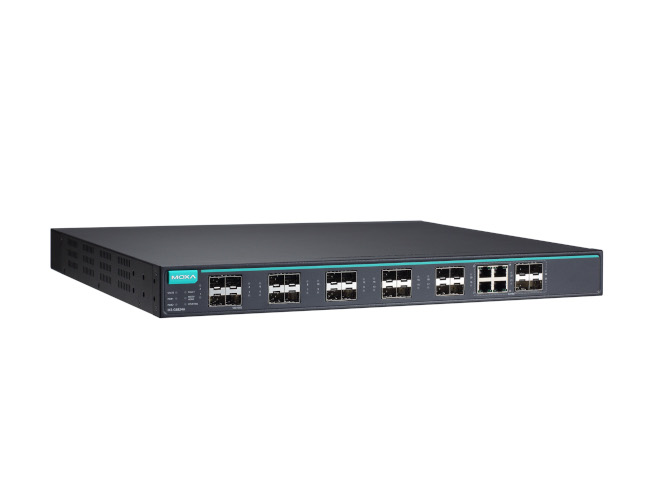

Moxa IKS-G6824A-8GSFP-4GTXSFP-HV-HV - Layer 3 Full Gigabit managed Ethernet switch with 12 10/100/1000BaseT(X) ports, 8 100/1000
by MOXA
|
|
|
|
- IPv6 Ready logo awarded (IPv6 Logo Committee certified)
- IEEE 1588 PTP (Precision Time Protocol) for precise time synchronization of networks
- DHCP Option 82 for IP address assignment with different policies
- Modbus/TCP industrial Ethernet protocol supported
- Turbo Ring and Turbo Chain, and RSTP/STP (IEEE 802.1w/D)
- IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
- IEEE 802.1Q VLAN and GVRP to ease network planning
QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
IEEE 802.3ad, LACP for optimum bandwidth utilization
IEEE 802.1X, HTTPS, and SSH to enhance network security
SNMPv1/v2c/v3 for different levels of network management
RMON for efficient network monitoring and proactive capability
Bandwidth management ensures stable network performance
"Lock port" to restrict access to authorized MAC addresses
Port mirroring for online debugging
Automatic warning by exception through email and relay output
Configurable by web browser, Telnet/serial console, Windows utility, and ABC-01 automatic backup configurator
|
|
|
Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The IKS-G6524 series full Gigabit backbone switches are equipped with Gigabit Ethernet ports, making them ideal for large-scale industrial networks. The IKS-G6524’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy protocols, and are fanless and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
| • Technology |
| Standards |
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol*
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol*
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP |
| Protocols |
IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH, LLDP, IEEE 1588 PTP V2*, EtherNet/IP*, Modbus/TCP, SNMP Inform, NTP Server/Client* |
| MIB |
MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Groups 1, 2, 3, 9 |
| Flow Control |
IEEE 802.3x flow control, back pressure flow control |
| *Available in Q2, 2012 |
| • Switch Properties |
| Priority Queues |
8 |
| Max. Number of Available VLANs |
256 |
| VLAN ID Range |
VID 1 to 4094 |
| IGMP Groups and Multicast Route |
1000 |
| MAC Table Size |
16 K |
| Packet Buffer Size |
12 Mbit |
| DRAM Size |
128 MB |
| Flash Size |
16 MB |
| Jumbo Frame Size |
9 KB |
| Switching Fabric Capacity |
48 Gbps |
| Forwarding Rate |
35.7 Mpps (packets per second) |
| • Interface |
| Gigabit Ethernet |
10/100/1000BaseT(X) or 100/1000BaseSFP slot |
| Console Port |
RS-232 (RJ45 connector) |
| LED Indicators |
STAT, PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL |
| Alarm Contact |
1 relay output with current carrying capacity of 2 A @ 30 VDC |
| Digital Inputs |
1 input with the same ground, but electrically isolated from the electronics.
• +13 to +30V for state “1”
• -30 to +3V for state “0”
• Max. input current: 8 mA |
| • Power Requirements |
| Input Voltage |
110/220 VAC (85 to 264 VAC) |
| Input Current |
Max. 0.79/0.44 A @ 110/220 VAC |
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
Present |
| • Physical Characteristics |
| Housing |
IP30 protection |
| Dimensions |
440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in) |
| Weight |
5.1 kg |
| Installation |
19’’ rack mounting |
| • Environmental Limits |
| Operating Temperature |
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| • Standards and Certifications |
| Safety |
UL 60950-1, EN 60950-1 |
| EMI |
FCC Part 15 Subpart B Class A, EN 55022 Class A |
| EMS |
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11 |
| Rail Traffic |
EN 50121-4 |
| Shock |
IEC 60068-2-27 |
| Freefall |
IEC 60068-2-32 |
| Vibration |
IEC 60068-2-6 |
| Note |
Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) |
| Time |
282,390 hrs |
| Database |
Telcordia (Bellcore), GB |
|
|
|
|
|
|
