Antaira LMX-2804G-4XS-T - 28-Port Industrial Managed Gigabit Ethernet Switch, with 24*10/100/1000T Gigabit Ethernet + 4*1G/2.5G/
by ANTAIRA
|
|
|
|
- Support 24*10/100/1000BASE-T Gigabit Ethernet Ports
- Support 4*1G/2.5G/10G SFP+ Slots
- ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) Protocol
- IEEE 802.1D STP (Spanning Tree Protocol), IEEE 802.1w RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
- Static Routes, ARP
- SNMPv1/v2c/v3, RMON, Modbus TCP, and HTTP/HTTPS
- RADIUS, TACACS+, 802.1X Authentication
- ACL, IP Source Guard
- VLAN, QoS, and, SNMPv3
- IP30 Rugged Metal Case Design
- Redundant Power Input
- Fanless Operation
- Power Reverse Polarity Protection
- High EFT and ESD Protection
- Operating Temperature: -40°C to 75°C
|
|
|

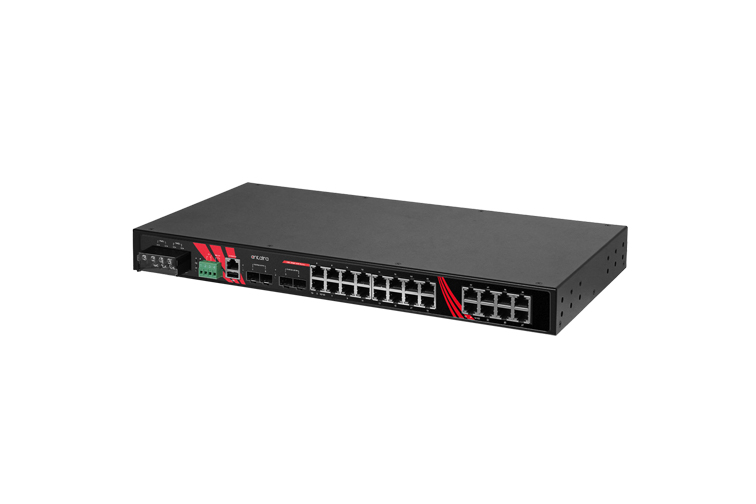

Antaira LMX-2804G-4XS-T
Antaira Technologies’ LMX-2804G-4XS-T is a 28-port industrial gigabit managed Ethernet switch features 24*10/100/1000Tx Ethernet ports and 4*1G/2.5G/10G SFP+ Slots. This makes the product ideal for applications that demand high density of port connectivity, wide bandwidth and long-distance communication. LMX-2804G-4XS-T is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMX-2804G-4XS-T is designed with IP30 rated 1U 19” rackmount. Supporting the standard operating temperature model -40° to 75˚C also makes it the best solution for any harsh and extreme ambient weather environment applications, such as power/utility, transportation, water wastewater treatment plant, oil/gas, and security surveillance system industries.
Antaira LMX-2804G-4XS-T
: 28-Port Industrial Managed Gigabit Ethernet Switch - 24/10/100/1000T Gigabit Ethernet + 4*1G/2.5G/10G SFP+ Slots; EOT: -40ºC to 75ºC
|
|
|
|
