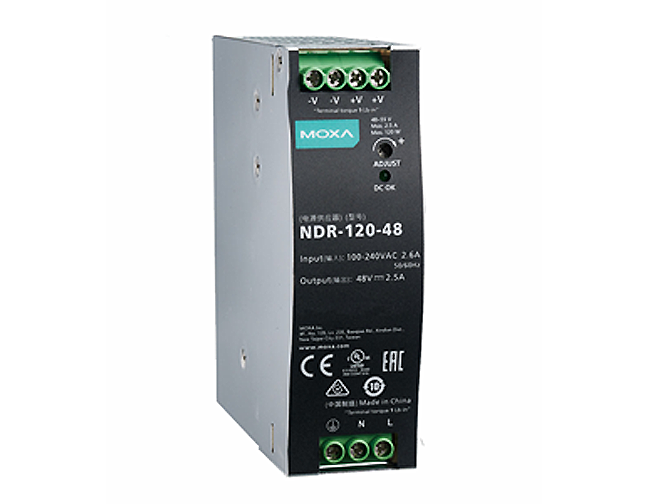

Moxa NDR-120-48 - 120 W/2.5 A DIN-rail 48 VDC power supply, universal 90 to 264 VAC or 127 to 370 VDC input voltage, -20 to 70 D
by MOXA
|
|
|
|
NDR-120-48_SUMMARY.html
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- DIN-Rail mountable
- UL 508 approved
- EN61000-6-2 (EN50082-2) industry immunity level
- 100% full load burn-in test
|
|
|
NDR-120-48_DESCRIPTION.html
The NDR-120-48 provides a 120 Watt solution. It can be installed on DIN rail TS-35/7.5 or 15. UL508 listed (for industrial equipment). Standard protections include short circuit, overload, over voltage, and over temp protection. LED indicators are provided for power on.
|
|
|
|
