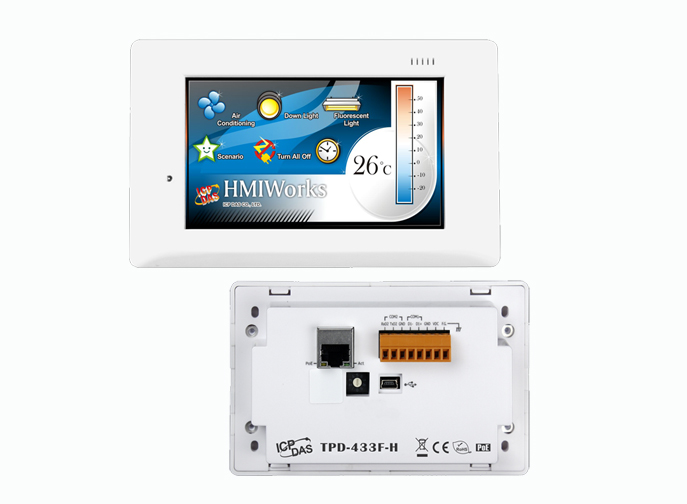

TPD-433F-H - 4.3" Touch HMI device with RS-485

ICP DAS TPD-433F-H - 4.3" Touch HMI device with RS-485, RS-232 (3-pin), USB, RTC, Ethernet, and less-surface-exposed housing des
by ICP DAS

Excellent C/P ratio (cost/performance)
High-resolution color touch screen
PoE (Power over Ethernet)
Multiple serial communication interfaces
RTC (Real Time Clock)
GUI design
Free HMIWorks development tool
Supports C language and Lader Designer
Modbus TCP, Modbus RTU and DCON protocol
ESD Protection: 4 kV
Operating temperature: -20 ~ 50°C
Supports user-defined third party protocol (C language)

Description
Specification
Datasheet

TPD-433F-H has a 4.3 inch, high resolution TFT color touch screen. It is designed to seamlessly integrate with I/O modules making the TPD-433F-H the best option to upgrading the mechanical switch to intelligent control pads in your home or factory applications.

The TPD-433F-H is user-friendly for both IT and PLC users. For IT users, C language environment is provided and for PLC users, HMIWorks provides Ladder Designer. When using Ladder Designer, the PLC user is able to create and application program in less than 30 minutes. The TPD-433F-H supports Modbus TCP/RTU protocols, allowing remote control of I/O modules and integration with SCADA software.

CPU Module
CPU	32-bit RISC CPU
Memory Expansion	16 MB SDRAM/ 16 MB Flash
Real Time Clock (RTC)	Yes
Buzzer	Yes
Rotary Switch (0~9)	Yes
Communication Interface
COM1	RS-485 (including Self-Tuner)
COM2	RS-232 (3-pin)
USB Client 1.1	Firmware updates only
Ethernet	RJ-45 x 1, 10/100 Base-TX
MMI (Main Machine Interface)
LCD	4.3” TFT(Resolution 480 x 272 x 16), defective pixel <= 3
Backlight Life	20,000 hours
Brightness	400 cd/ m2
Touch Panel	Yes
LED Indicator	Yes
Reset Button	Yes
Electrical
Powered from Terminal Block	+12 ~ 48 VDC
Powered from PoE	IEEE 802.3af, Class1 (48 V)
Power Consumption	2.5 W
Mechanical
Dimensions (W x L x H)	140 mm x 87 mm x 42 mm
Ingress Protection	Front Panel: IP40
Installation	Wall Mount
Environmental
Operating Temperature	-30 ~ + 50°C
Storage Temperature	-30 ~ + 80°C
Ambient Relative Humidity	10 ~ 90% RH, non-condensing
